TJW58FX 24v 12v 100rpm Electric Right Angle Dc Worm Gear Reduction Motor with Encoder for Robot
Product Description
| Product Model | GM58EM545/555/575 |
| Gearbox Length | 58±0.5MM |
| Speed | 92RPM~190RPM |
| Voltage | 24V |
| Torque | 0.65N.m/0.35N.m |
| Support Customization | Transmission Dimensions And Motor Parameters Can Be Customized |
⚙

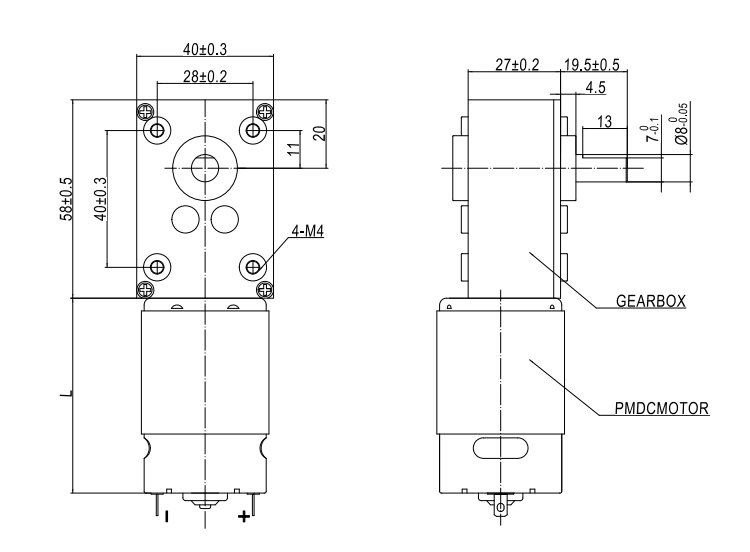

Technical Drawing & Dimensions
📈

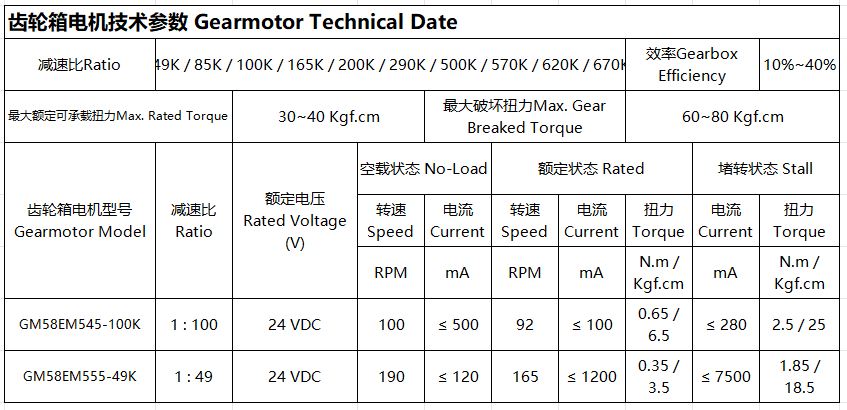

Performance Characteristics
📷

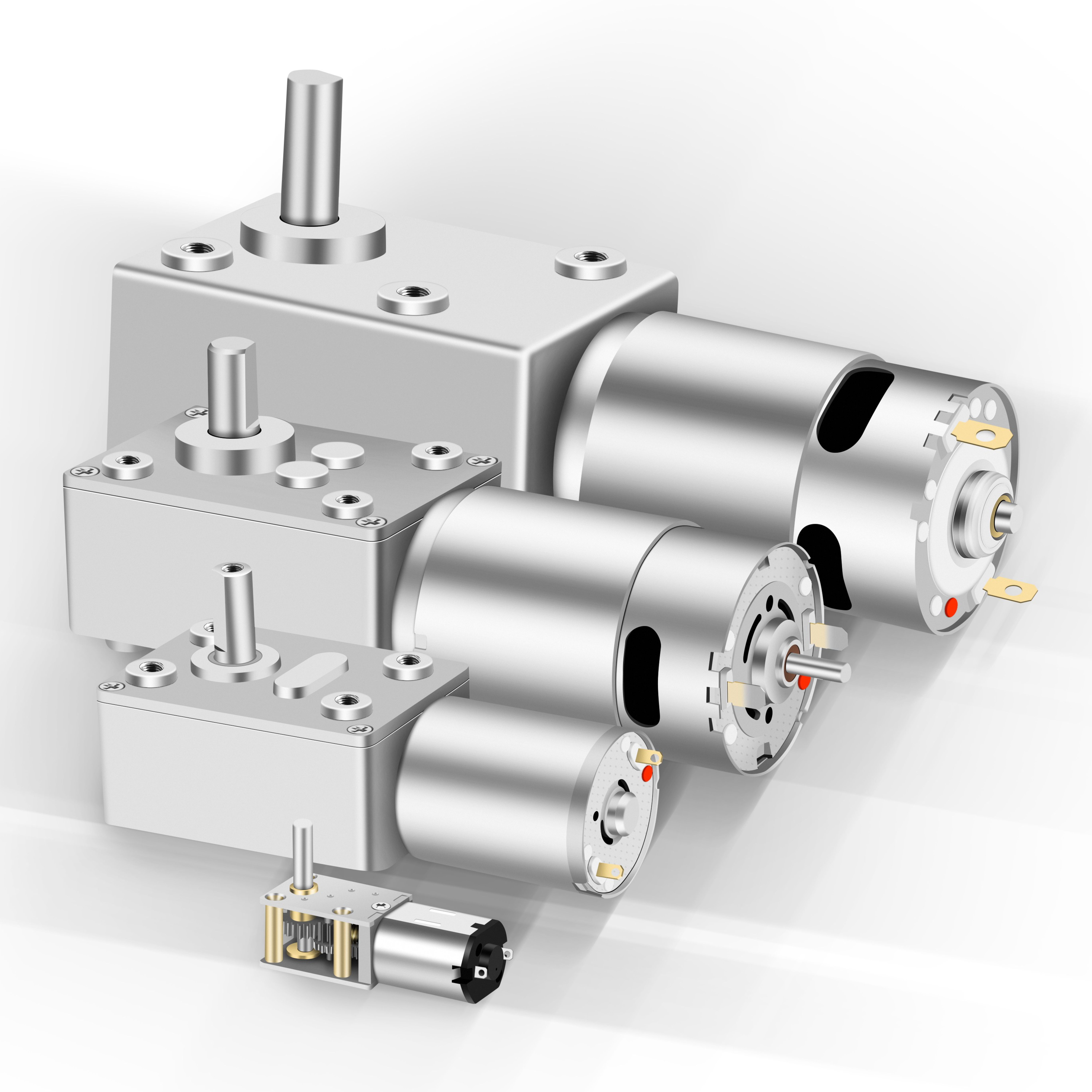

Product Showroom
