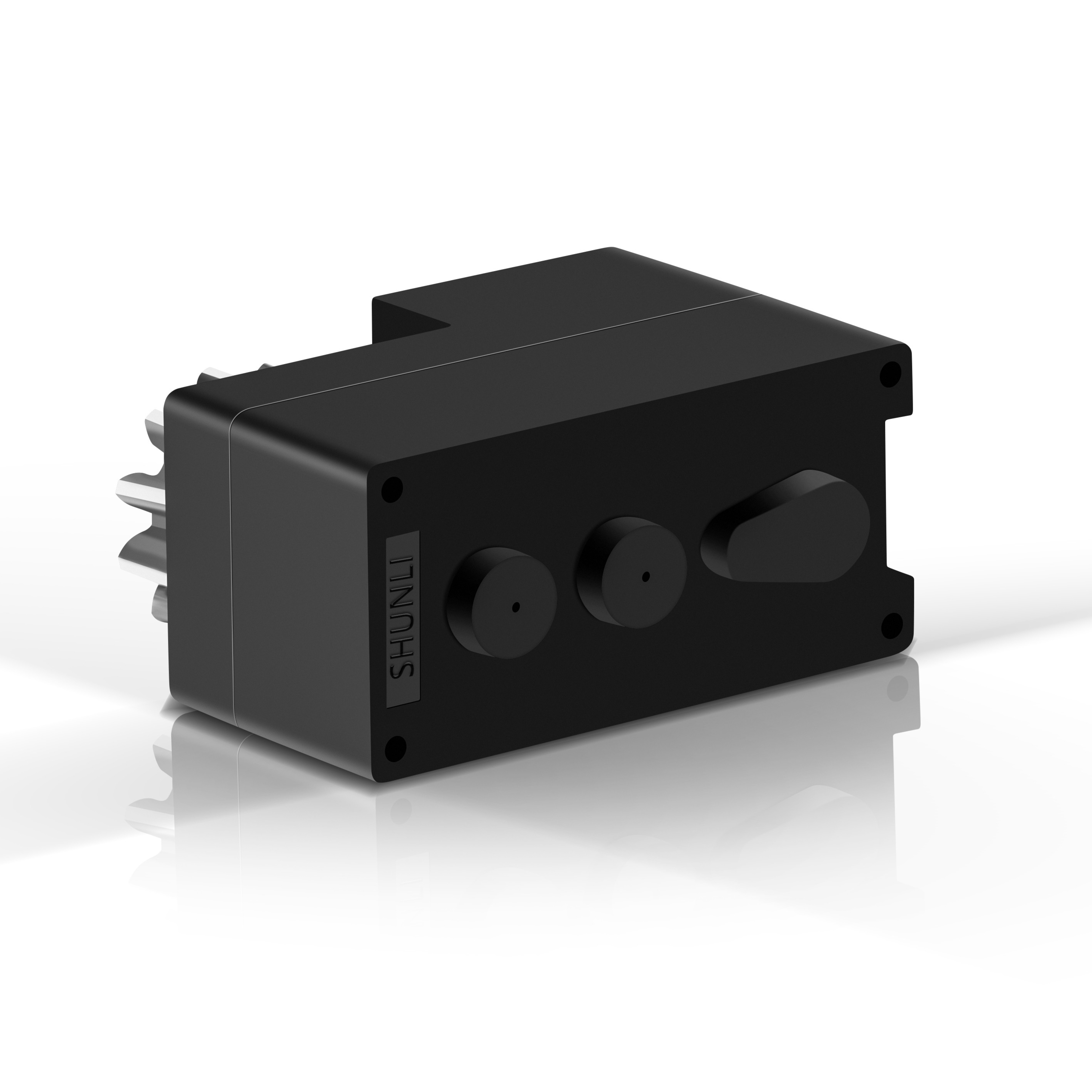

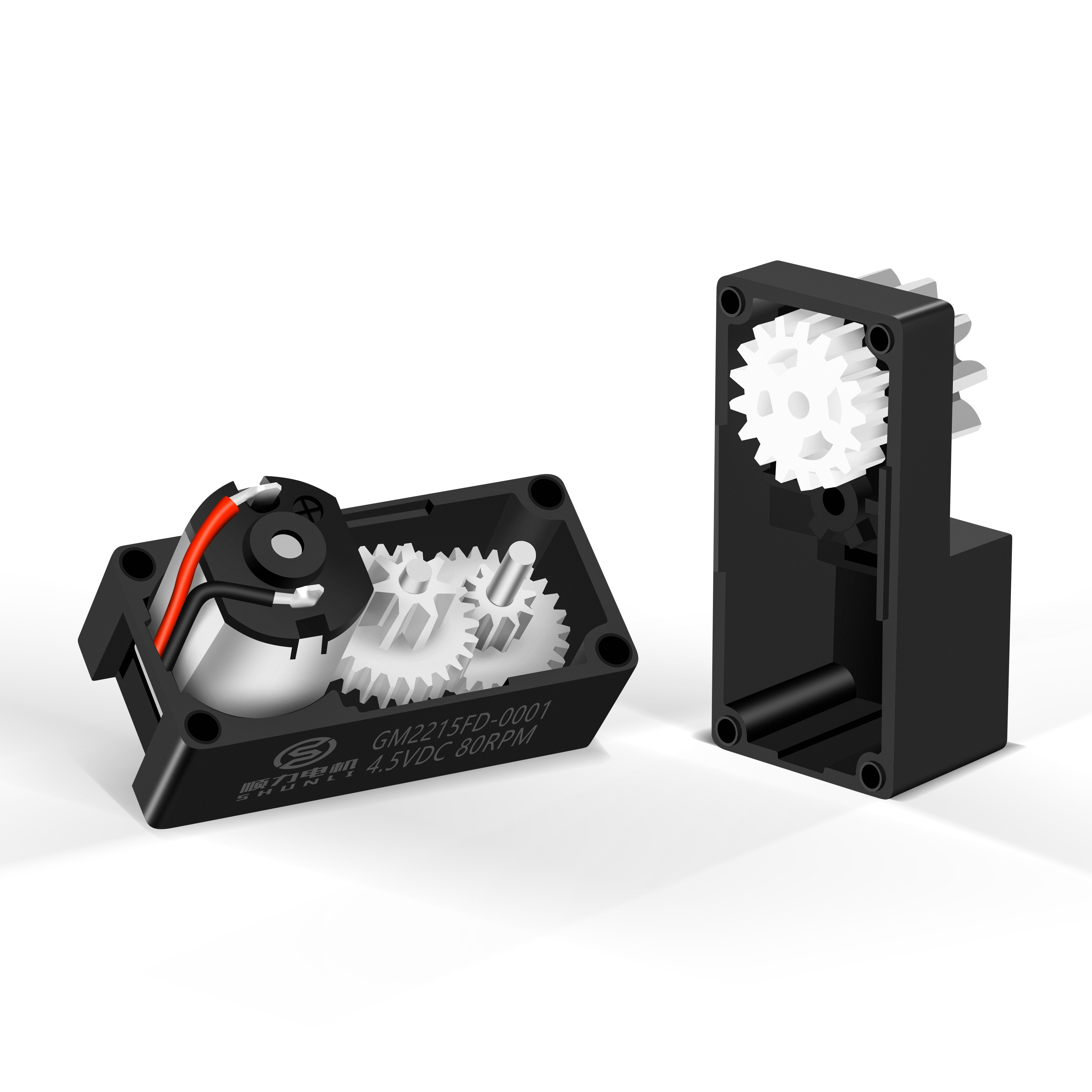

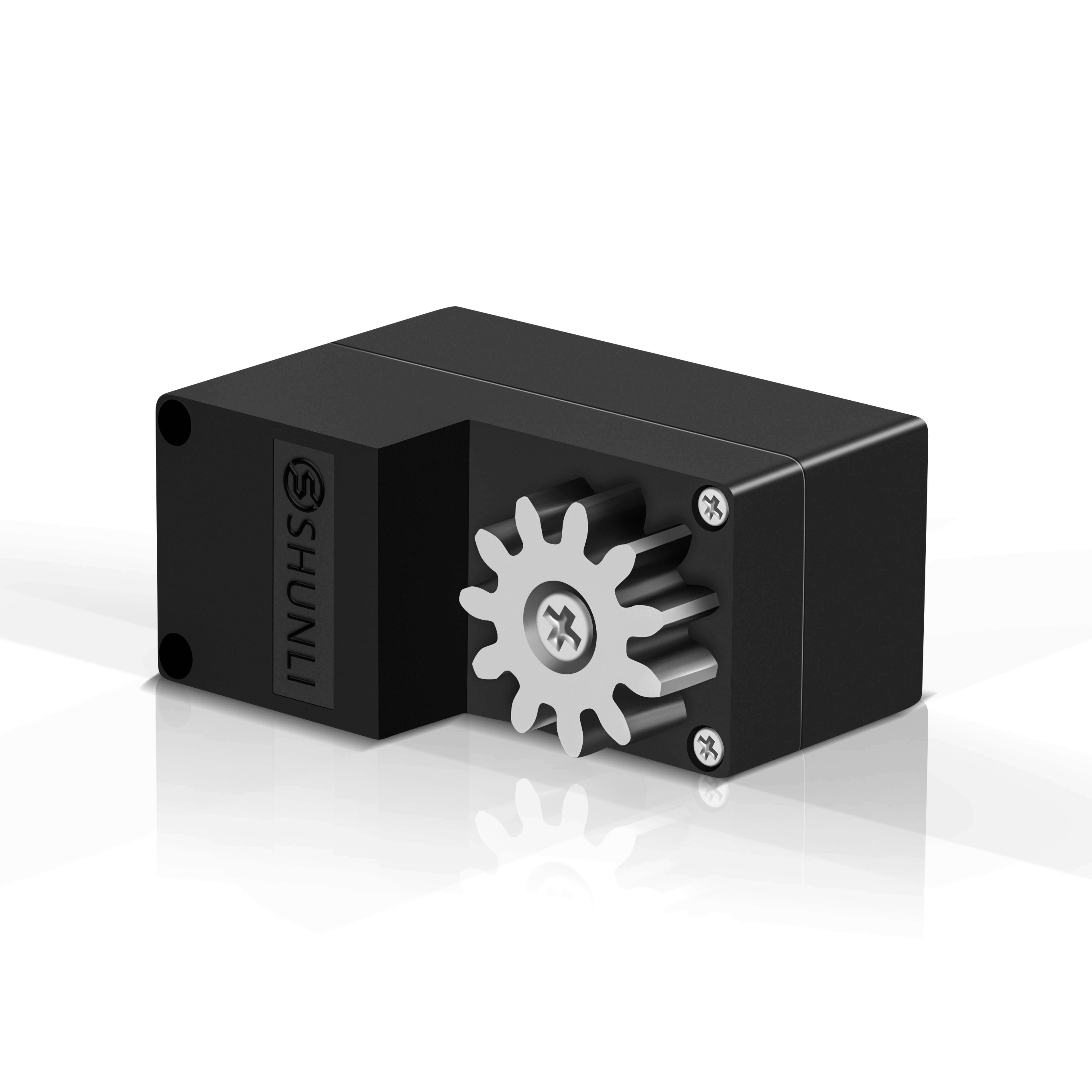

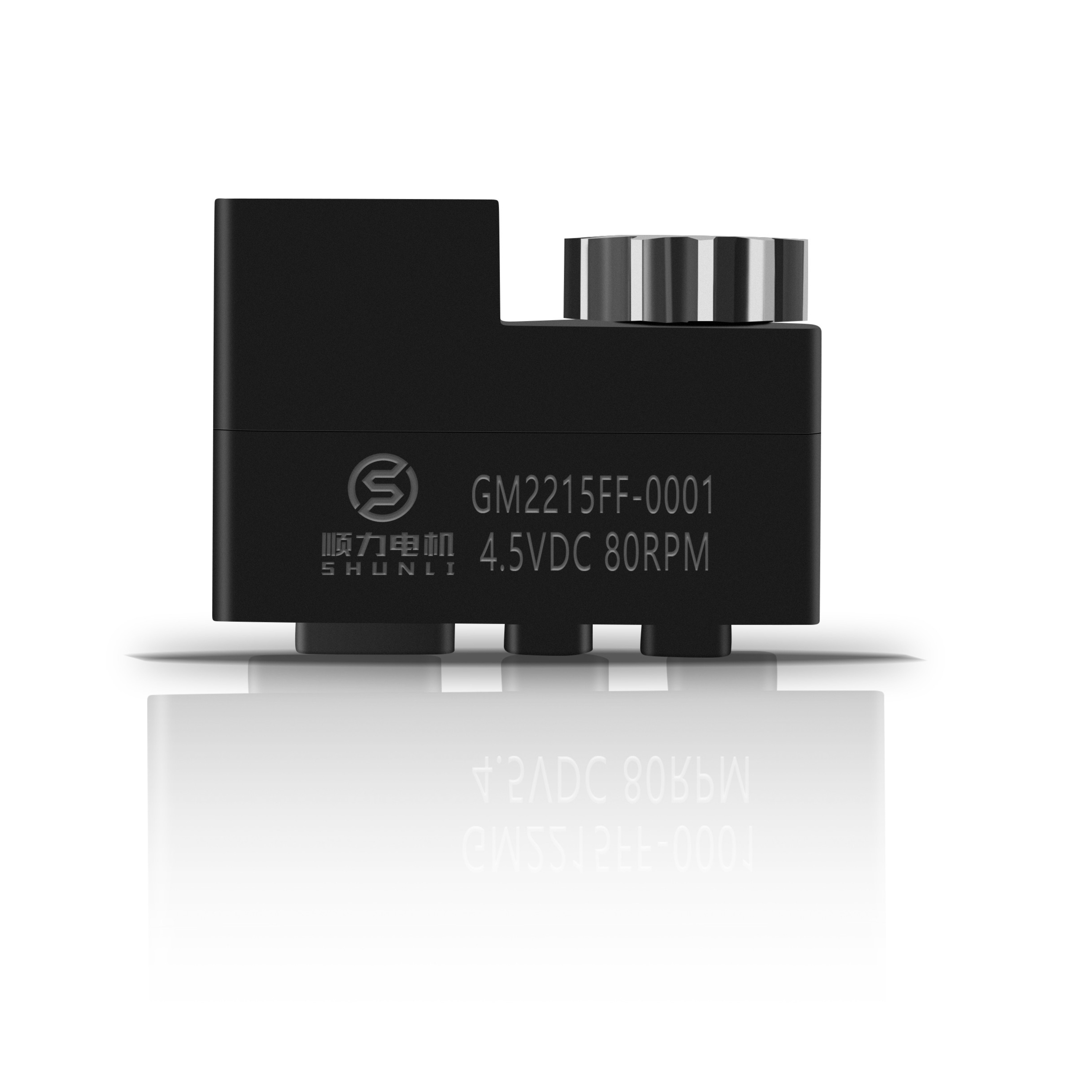

4.5v Dc Gear Motor for Electric Lock Low Rpm 60rpm Shunli Permanent Magnet Brush Customized 30-100RPM
Product Description
⭐ Promotion
📦 Product Description
⚙️ Gearbox Technical Data
⚡ Gearmotor Technical Data
🔍 PMDC MOTOR Technical Data
| Ratio | 241k | |||||
| Max. Rated Torque | 1.5~2.0 Kgf.cm | |||||
| Max. Gear Breaked Torque | 4~5 Kgf.cm | |||||
| Gearbox Efficiency | 45%~60% | |||||
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2215FMN20-241K | 1 : 241 | 4.5 VDC | 43 | ≤ 50 | 34 | ≤ 120 | 25 / 250 | ≤ 350 | 0.15/1.5 |
| 58 | ≤ 65 | 50 | ≤ 130 | 28 / 280 | ≤ 680 | 0.18 / 1.8 | |||
| 68 | 75 | 56 | ≤ 140 | 30 / 300 | ≤ 750 | 0.2 / 2.0 | |||
🔍 PMDC MOTOR Technical Data
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25/ 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25/ 2.5 | ≤ 750 | 1.8 / 18 | |
💡 Application
🏆 Quality & Evaluation
🚀 Why Choose Us
1Expertise
2Quality Control
We are a factory specialized in producing motors for more than 14 years. A professional R&D team and mature management will bring you a pleasant experience.
2Quality Control
In order to confirm quality, every step from material reception to shipment is carefully checked. Quality is the basis of our development.
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We support online assurance orders, which can be paid with Master Card, Visa, etc. Customers can also pay with PayPal or TT.
I can't find a suitable motor on your website, can you customize it for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing, we use equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise testers to ensure quality.
What is the typical lead time?
Lead times vary based on customization requirements and order volume. Please contact us for a detailed timeline for your specific project.
