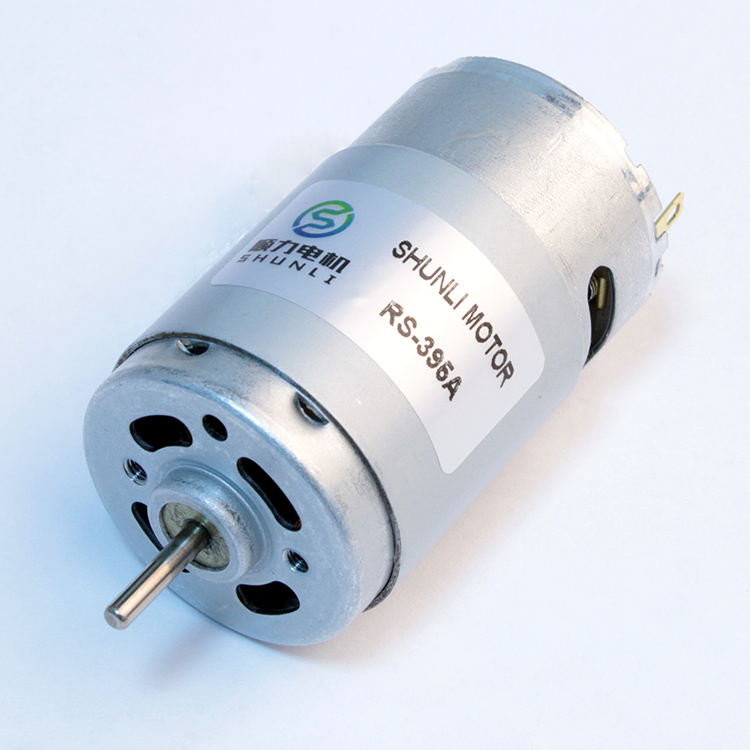

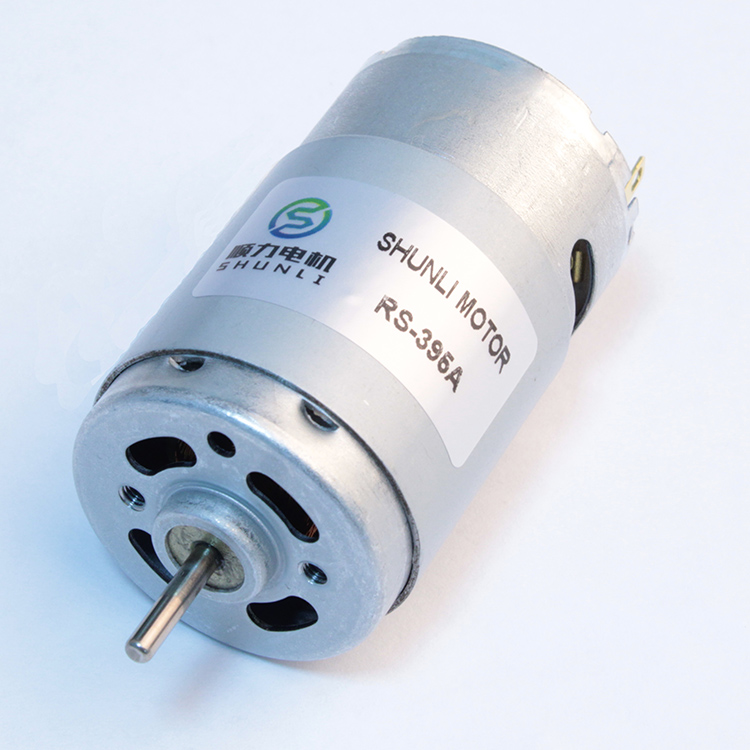

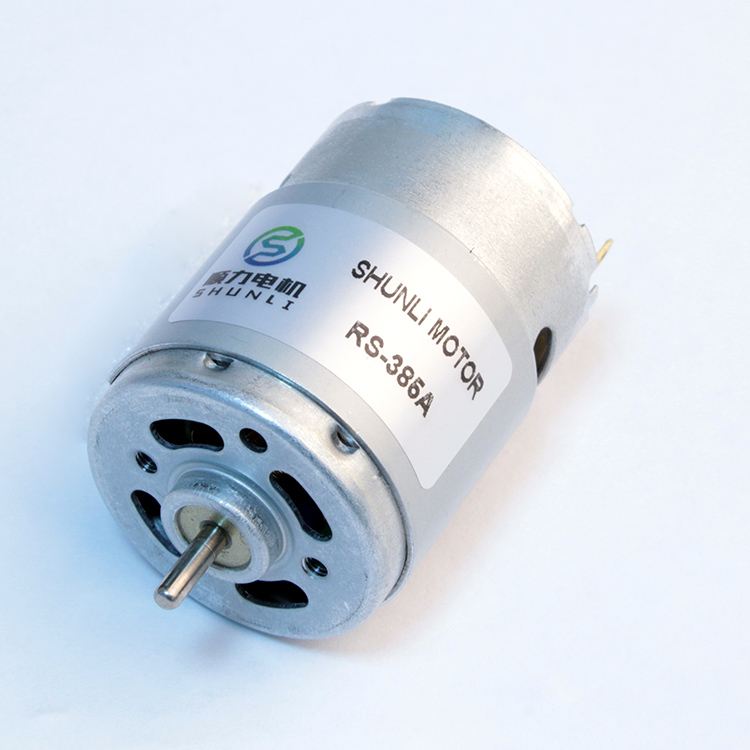

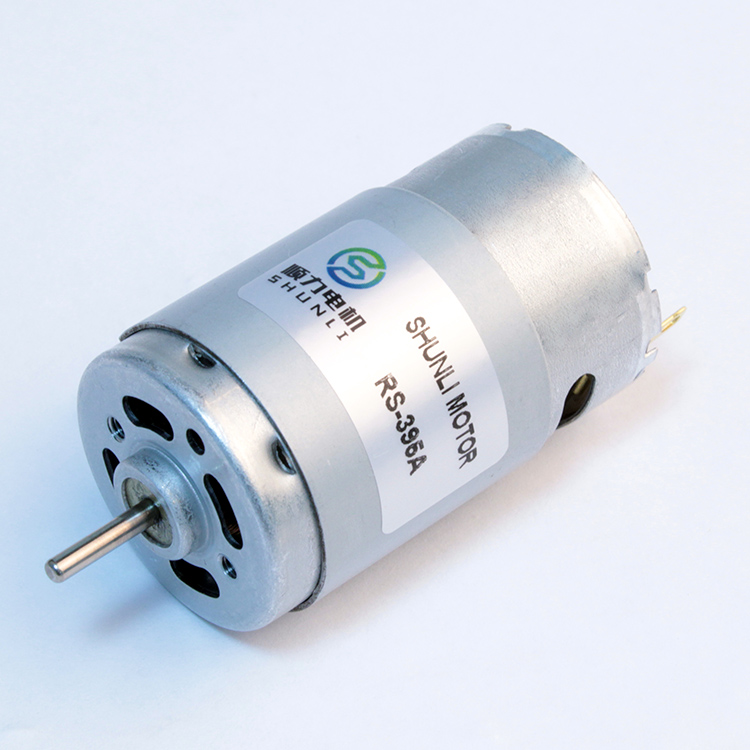

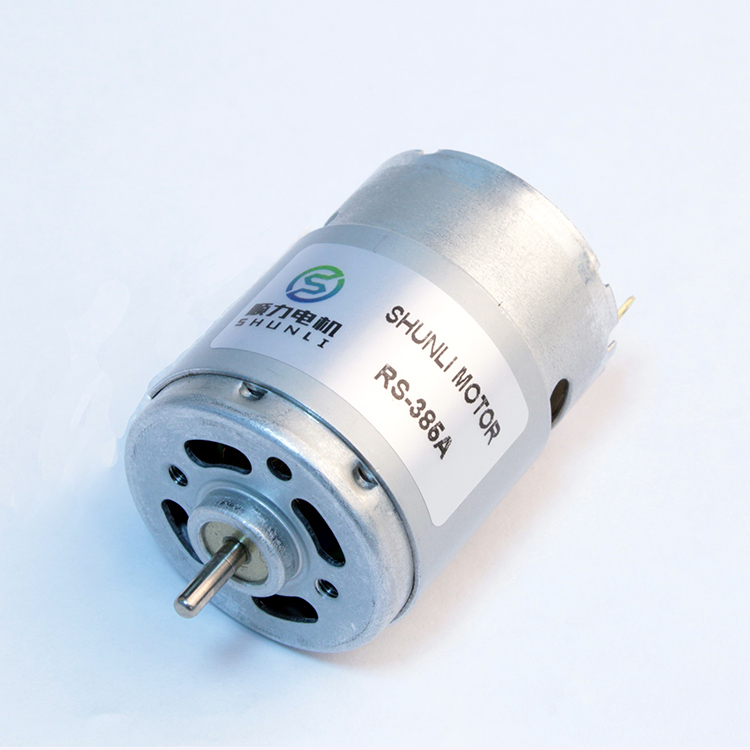

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless
Product Description
Product Description
Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor
⭐ Product Details
Motor Customized Specification available upon request.
Reference Drawing
RS - 365 Series
RS - 385 Series
RS - 395 Series
The length of shaft can be customized to your requirements.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07 | 2.72 | 2.22 | 42.2 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75 | 1.31 | 8.9 | 80.4 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83 | 1.8 | 1.06 | 30.4 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09 | 6.68 | 2.66 | 54.9 | |
Recommend Products
Contact for Inquiry
Looking forward to your feedback!
Frequently Asked Questions
Can the shaft length of the 390PH motor be customized?
Yes, we provide full customization for the shaft length and other mechanical dimensions to meet your specific application requirements.
What are the primary applications for these DC motors?
These motors are professionally designed for high-performance hair dryers, micro vacuum cleaners, and other portable household appliances requiring stable torque and high RPM.
What is the operating voltage range for the RS-390 and RS-395 series?
Depending on the specific model, the operating voltage range is typically between 6.0V and 24.0V DC.
Do you support customized technical parameters like speed and torque?
Absolutely. As a professional manufacturer, we can adjust the internal windings to provide different RPM, torque, and power ratings according to your datasheet requirements.
Are these motors suitable for professional-grade micro vacuum cleaners?
Yes, the 390PH series is specifically engineered for high-efficiency suction performance, making it ideal for micro vacuum cleaner applications.
How do I choose between the RS-390 and RS-395 models?
Selection depends on your power and space requirements. Please refer to our technical datasheet for specific comparison of RPM, current, and stall torque for each model.
