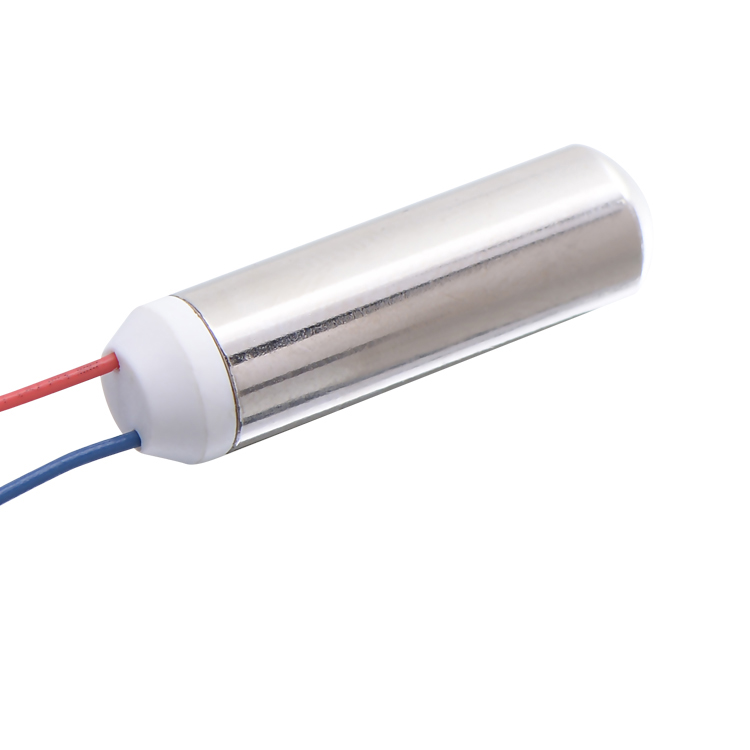

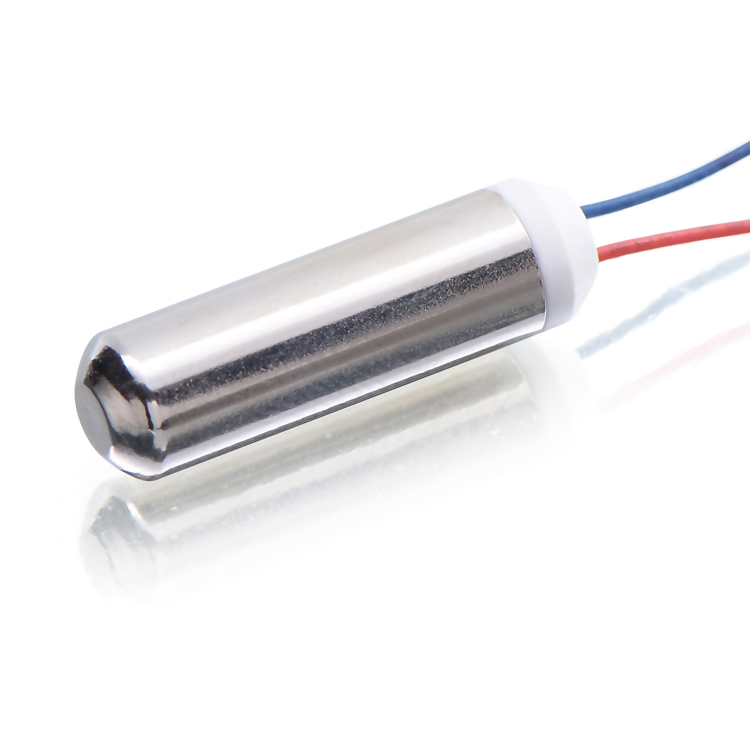

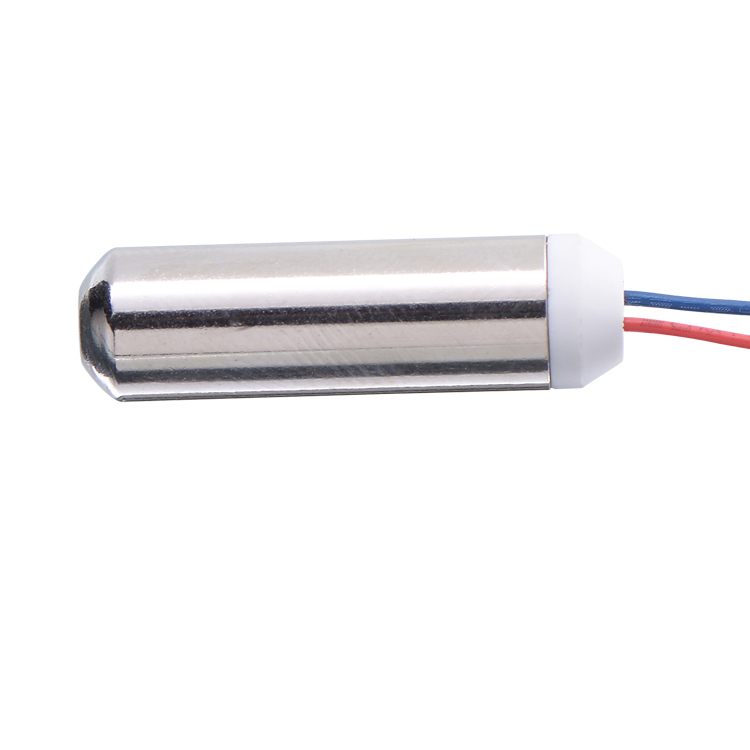

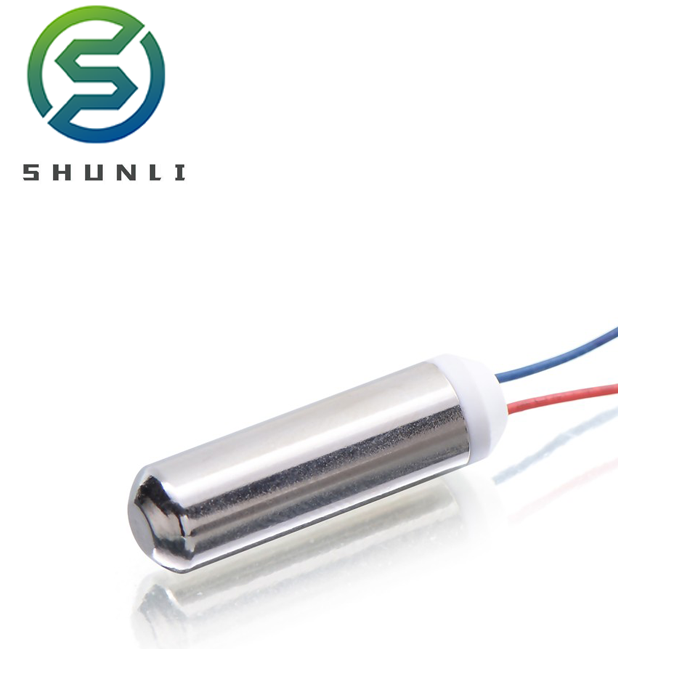

Low Rpm 2.4v 3.7v 5v Dc Electric Mini Vibration Motor for Beauty Apparatus and Motors for Sexual Vibrators
Product Description
Low RPM 2.4V 3.7V 5V DC Electric Mini Vibration Motor for Beauty Apparatus
Promotion
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately. These mini vibration motors are specifically engineered for high-performance beauty tools and personal care devices.
| MODEL | RATED | NO LOAD | RATED | STALL | ||
|---|---|---|---|---|---|---|
| VOLTAGE (V) | SPEED (r/min) | CURRENT (mA) | SPEED (r/min) | CURRENT (mA) | CURRENT (mA) | |
| 0724 | 1.5 | 19900 | 45 | 17600 | 108 | 480 |
| 0724 | 5 | 20000 | 33 | 18500 | 65 | 400 |
| 0724 | 3 | 25300 | 28 | 21300 | 89 | 370 |
Applications
Frequently Asked Questions
What is the primary use of this mini vibration motor?
It is primarily used for beauty apparatus, facial massagers, personal care devices, and small robotics where haptic feedback or vibration is required.
What voltage options are available for the 0724 model?
The motor supports a range of DC voltages including 1.5V, 2.4V, 3V, 3.7V, and 5V to suit different battery configurations.
Is this motor suitable for handheld portable devices?
Yes, its ultra-compact size and high efficiency make it ideal for battery-powered handheld equipment.
How does the motor ensure stability during operation?
The motor is designed with high-quality components for long-life stability and precision data capture during its vibration cycles.
Can the speed and vibration intensity be adjusted?
Yes, by modulating the input voltage within the rated range, users can adjust the RPM and the resulting vibration strength.
Does the motor include internal drive components?
Yes, our design allows for an integrated drive within the motor for more accurate performance monitoring and control.
