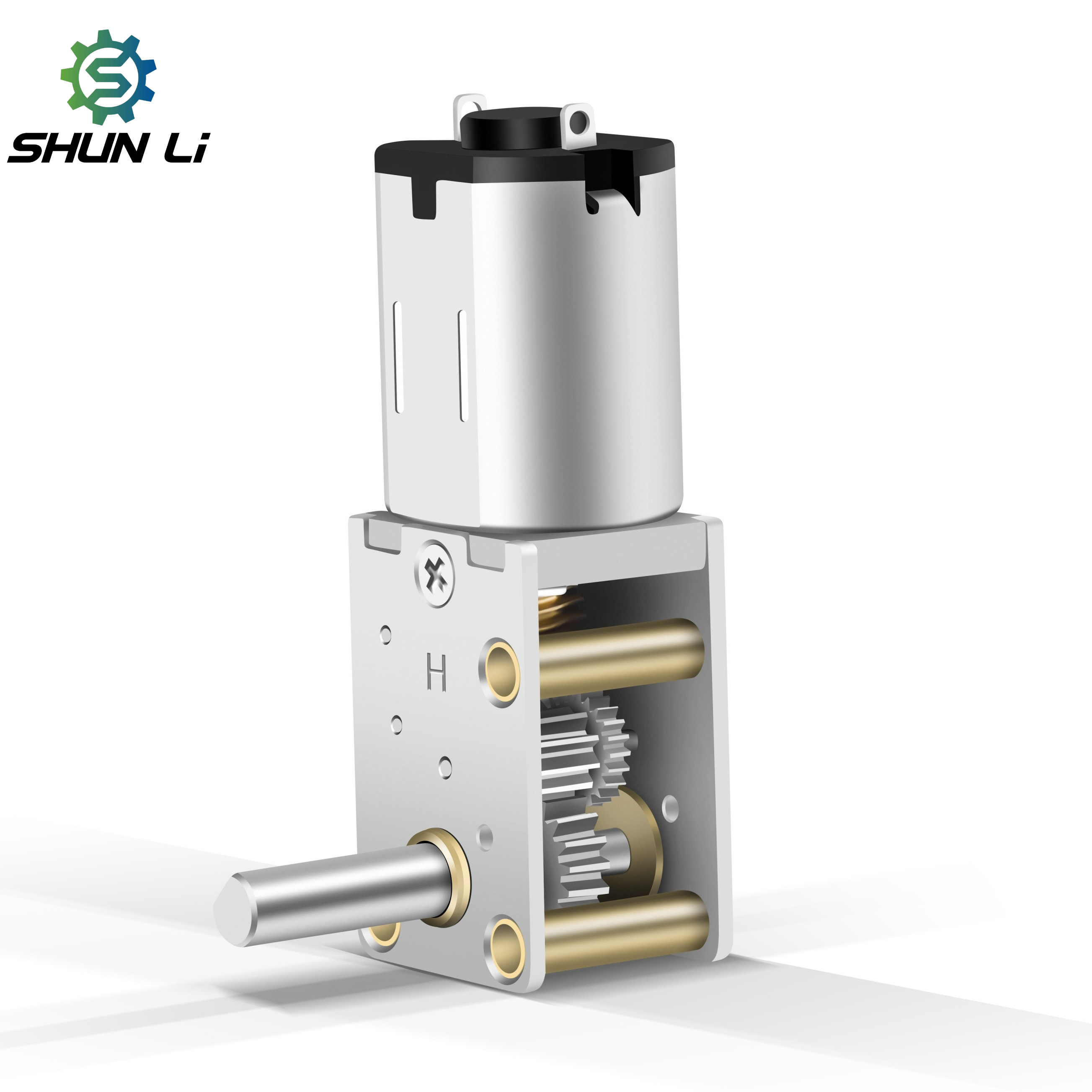

90 Degree Motor 6v 12v Dc Worm Gear Motor D-shaped Shaft
Product Description

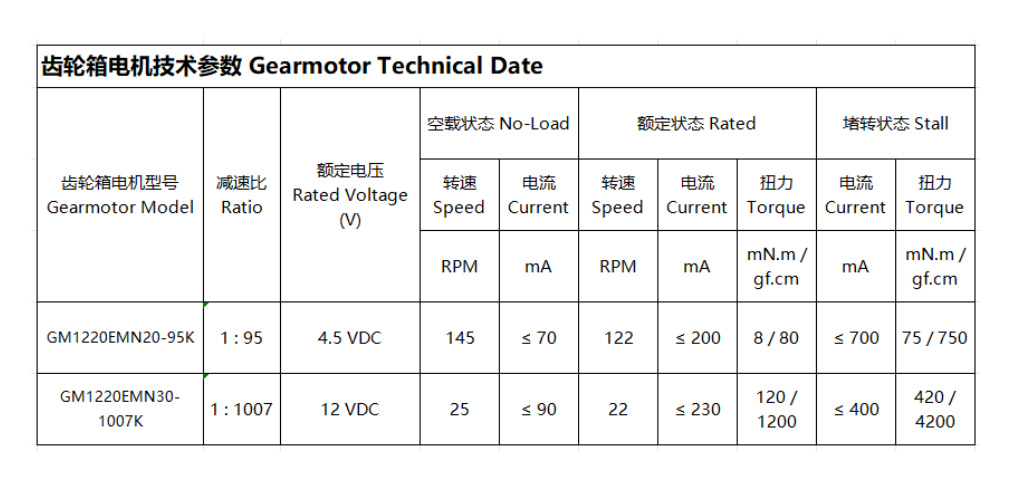

Product Specifications
| Product Model | GM1220EMN20/N30 |
| Gearbox Length | 20±0.2mm |
| Speed | 22RPM-145RPM |
| Voltage | 4.5V~12V |
| Rated Torque | 8 mN.m/120 mN.m |
| Customization | Transmission Dimensions & Motor Parameters Can Be Customized |
Technical Features

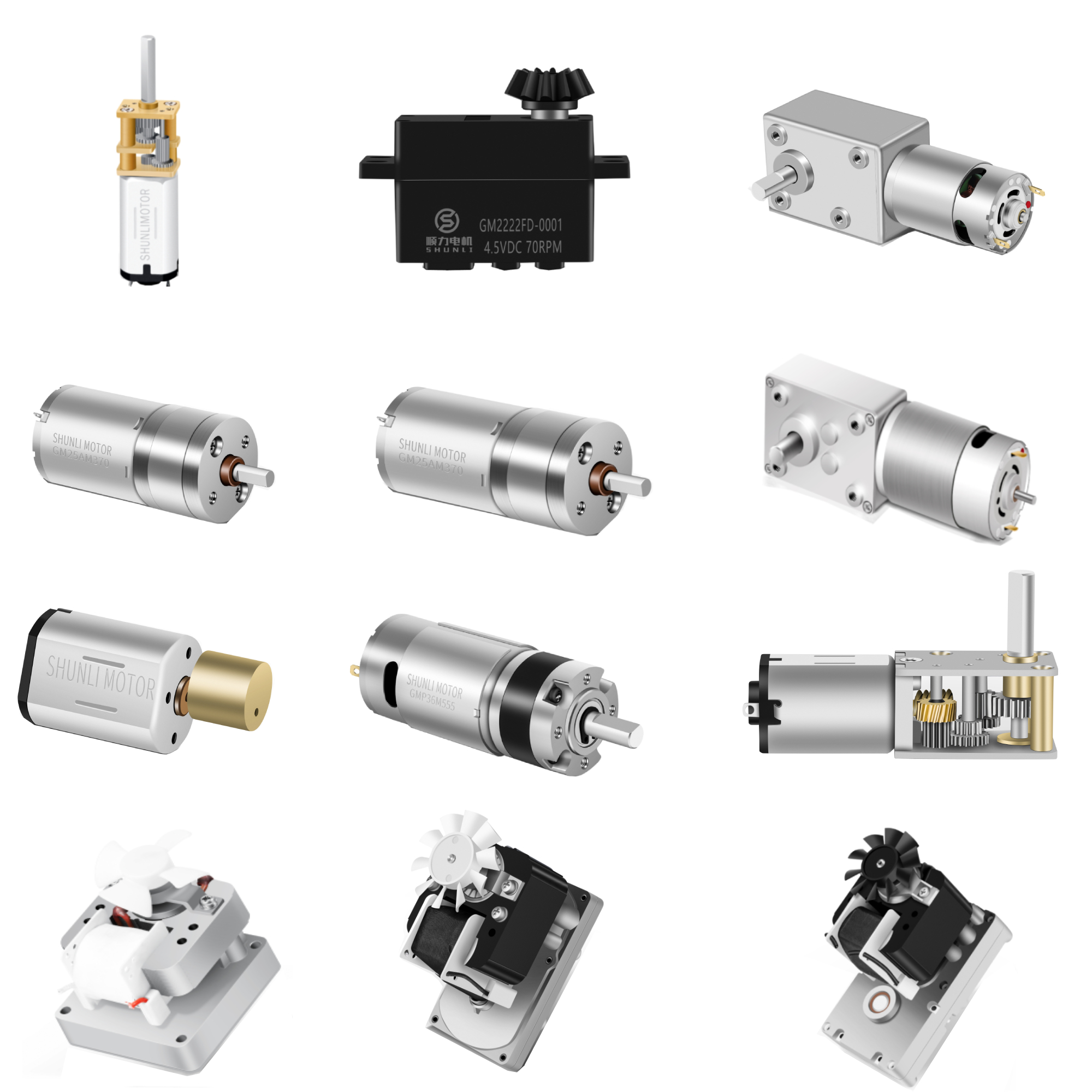

Product Gallery
💡 Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
New customers can pay online via major credit cards (Master Card, Visa, etc.), PayPal, or T/T (Telegraphic Transfer).
Can you customize a motor if I can't find a suitable one?
Yes, we can customize motor parameters and transmission dimensions according to your specific requirements.
Do your motors have official certifications?
Yes, our motors are CE, FCC, and ISO certified. We can also apply for other certifications if required.
How do you ensure product quality?
We have professional inspectors on every production line. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is your lead time for customized orders?
Lead times vary based on the level of customization required; please consult our technical team for a detailed timeline based on your specifications.
