Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Product Description

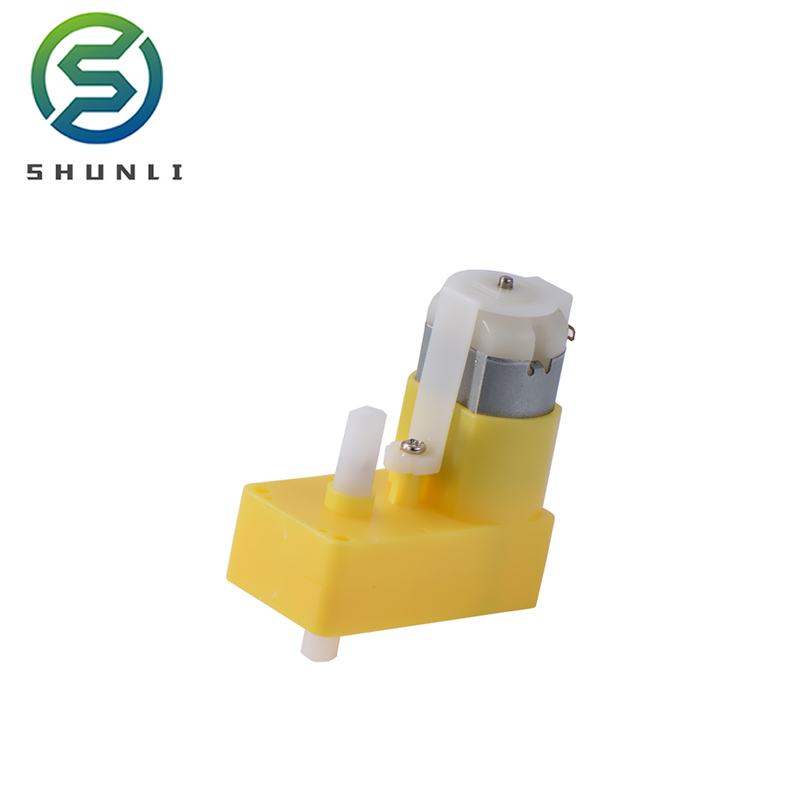

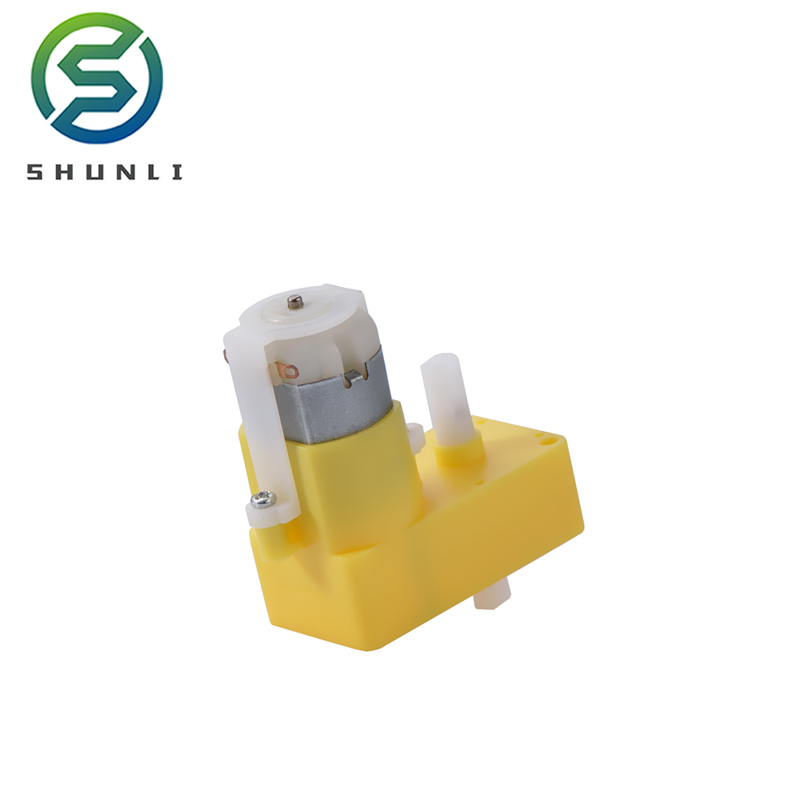

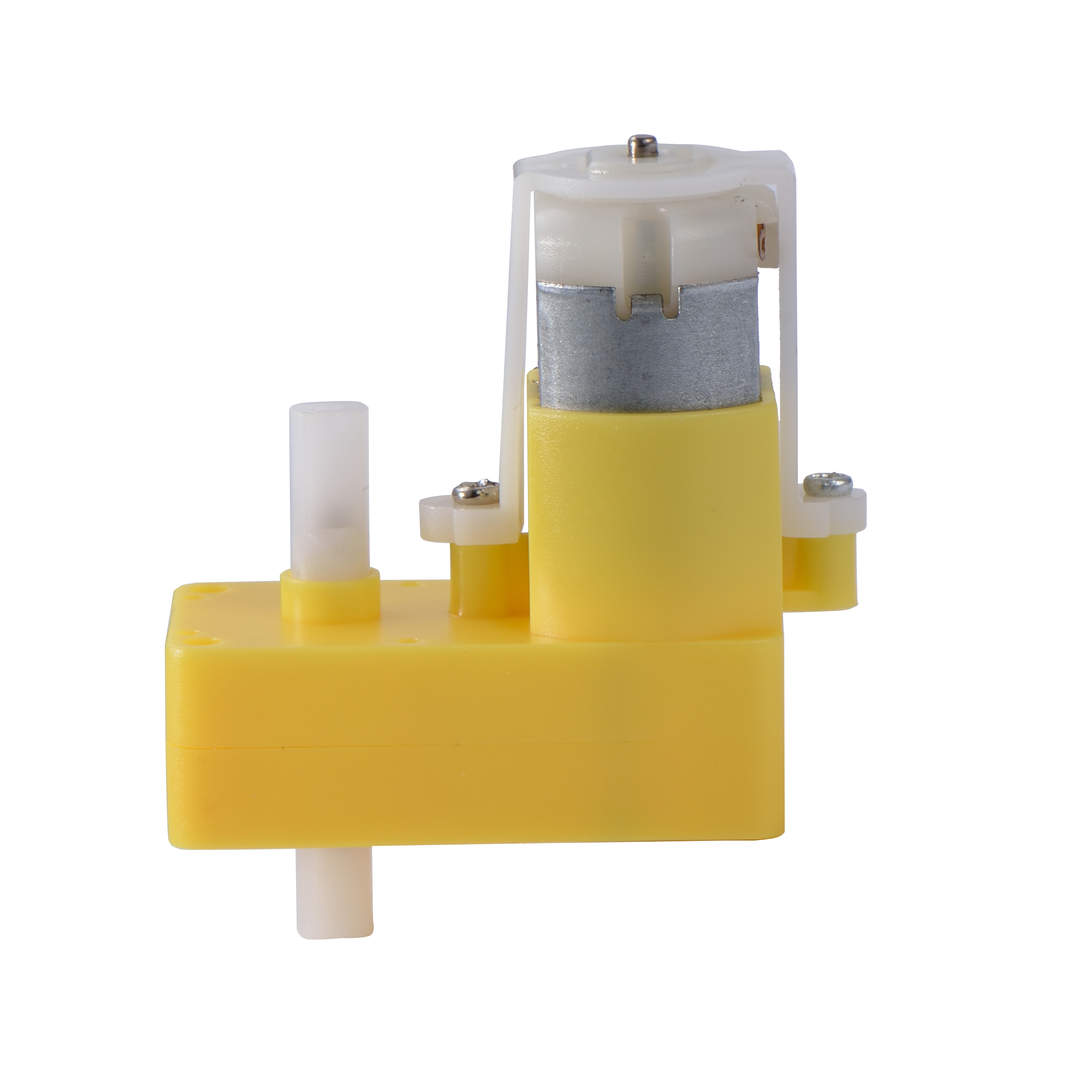

Yellow DC Gear Motor with Plastic Wheels for Toy Cars
🔥 Promotion
📊 Technical Characters
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated Voltage | Speed | Current | Speed | Current | Torque | Power Output | Stall Torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
📐 Dimensions & Gallery
❓ Frequently Asked Questions
Q1: What is the operating voltage range for this yellow DC gear motor?
A: The motor supports a wide working voltage range from 3V to 12V DC, making it compatible with various battery packs and power supplies.
Q2: What are the typical no-load speeds for these models?
A: Depending on the specific model selected, the no-load speed ranges from 50 rpm to 100 rpm at rated voltages.

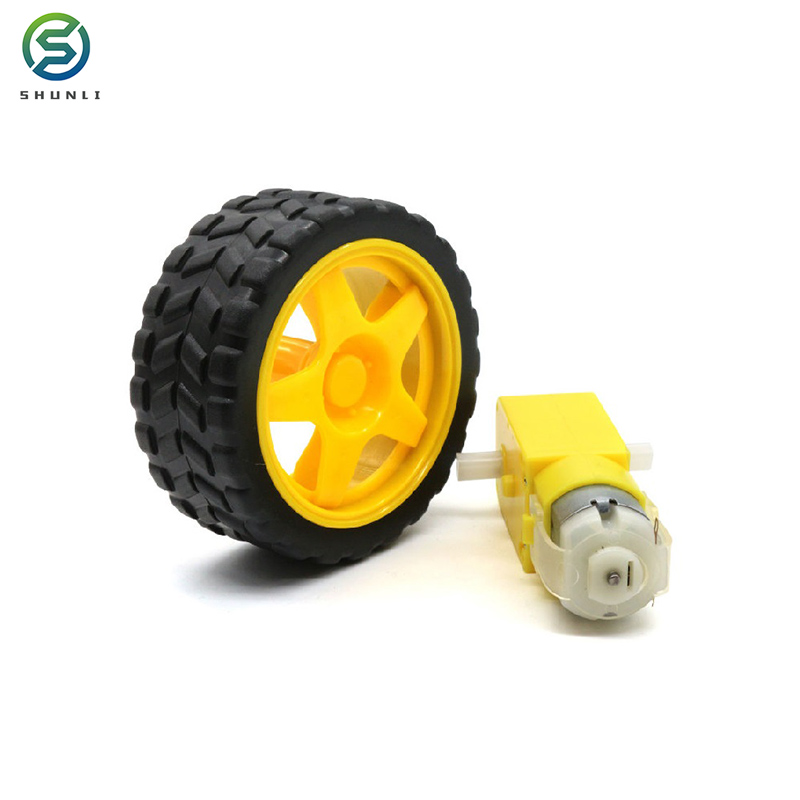

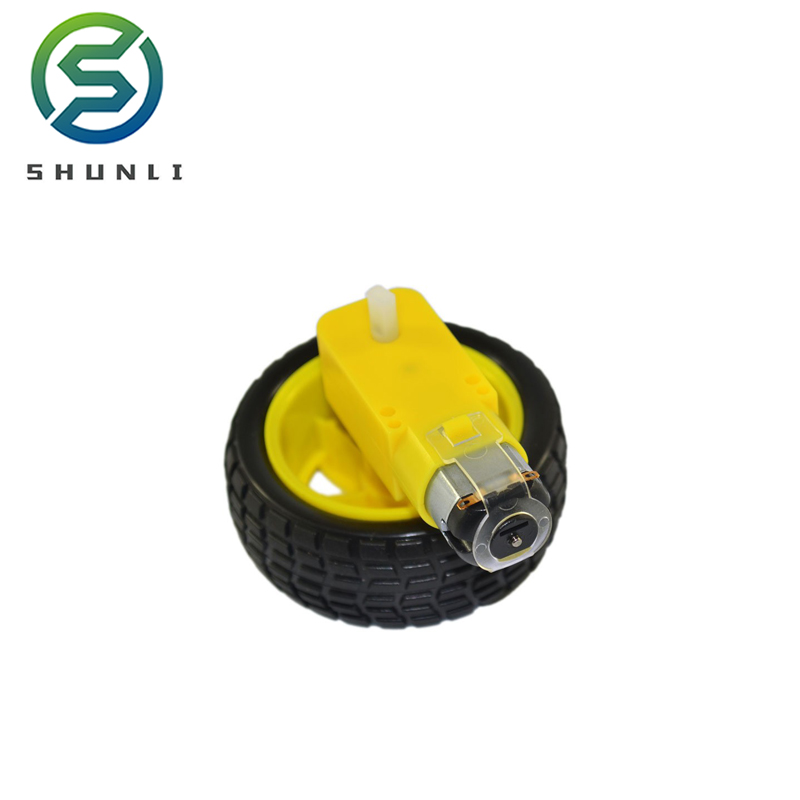

Q3: Are the plastic wheels included with the motor?
A: Yes, this product set specifically includes the yellow DC gear motor along with matching plastic wheels designed for easy assembly.
Q4: Can this motor be used for DIY robotics and Arduino projects?
A: Absolutely. It is a popular choice for smart car projects, DIY robots, and educational electronics due to its simple interface and reliable performance.
Q5: What is the stall torque of the SGP01S series?
A: The stall torque varies by model, reaching up to 4.003 Kg.m on higher torque versions, providing sufficient power for small toy vehicles.
Q6: Is the gearbox integrated into the motor?
A: Yes, it features an integrated yellow plastic gearbox that provides the necessary reduction ratio for optimal wheel rotation speed.
