Shunli Custom 3.7 Volt 12v Dc Reduction Gear Micro Motor of High Torque Diameter of the Reduction Gear Box 13mm for Gas Valve
Product Description
Product Description
6 Volt 12V DC Reduction Gear Micro Motor of High Torque

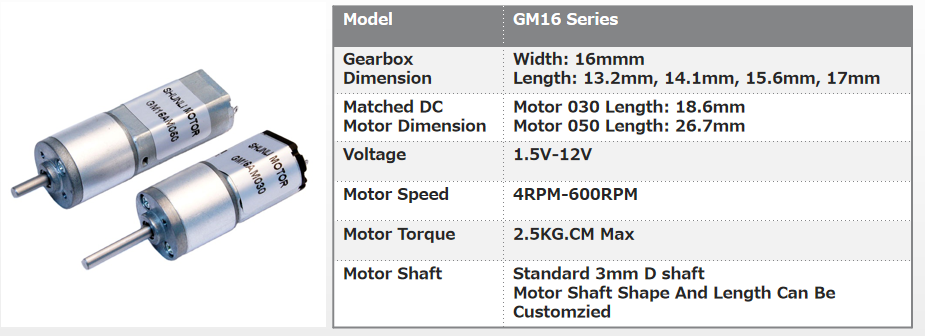

Product Details
Reference Drawing

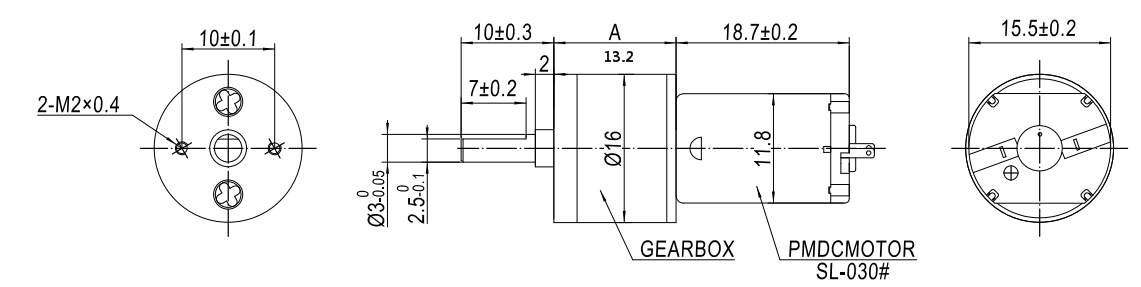

Model: GM16AM030

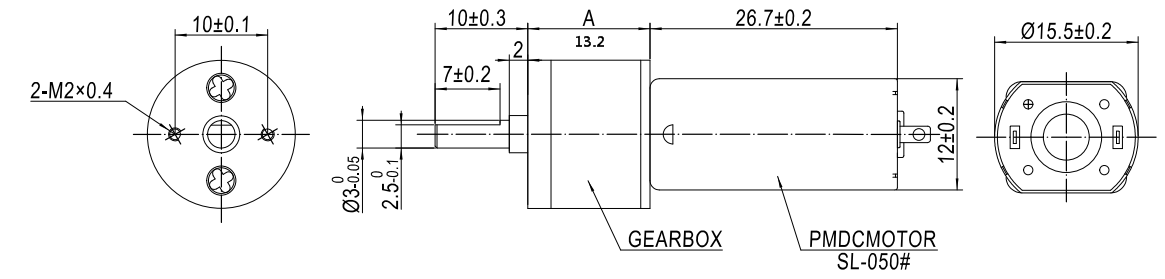

Model: GM16AM050
Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |
Gearbox Technical Data
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K - 42K | 70K - 119K | 143K - 285K | 300K - 800K |
| Gearbox Length (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
Quality Assurance
Customer Evaluation
Certifications
Why Choose Us
Specializing in motor production for over 14 years, our professional R&D team and mature management ensure a premium experience.
High credibility and established industry reputation.
100% on-time delivery rate for all orders.
Standard samples in 2 weeks; custom samples in 3 weeks.
Timely support with messages replied within 2 hours.
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a specialized factory with over 14 years of experience in micro DC motors and DC gear motors.
2. What are the available payment terms for new customers?
We offer flexible payment options including Online Assurance Orders (Credit Card/Visa), PayPal, and TT transfers.
3. Can you customize a motor if I cannot find a suitable model?
Yes, we provide full customization services to meet your specific technical requirements and applications.
4. Do your motors carry any quality certifications?
Yes, our products are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates upon request.
5. How do you handle quality control during production?
We employ professional inspectors at every stage and use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers to ensure performance.
6. What is the lead time for product samples?
Standard samples are typically produced within 2 weeks, while fully customized samples are completed within 3 weeks.
