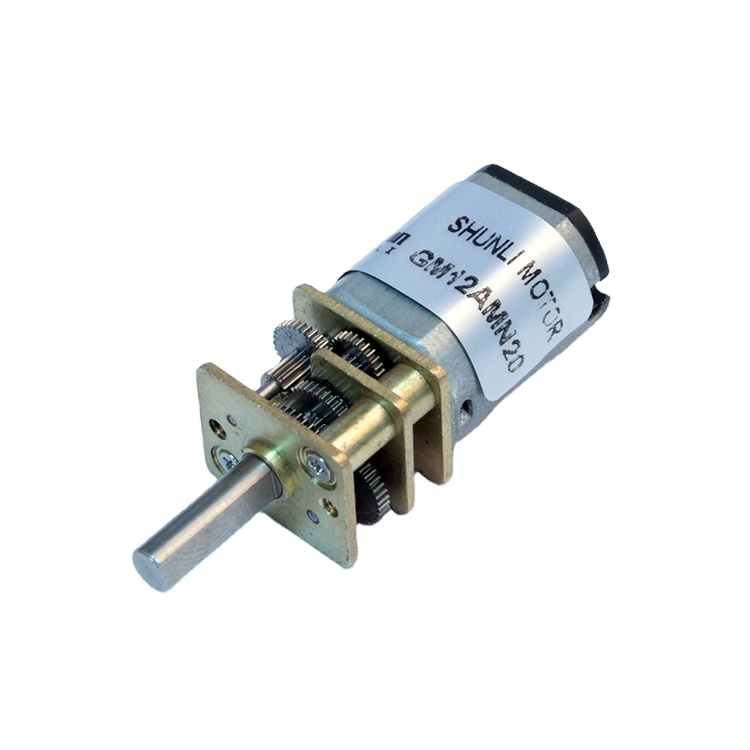

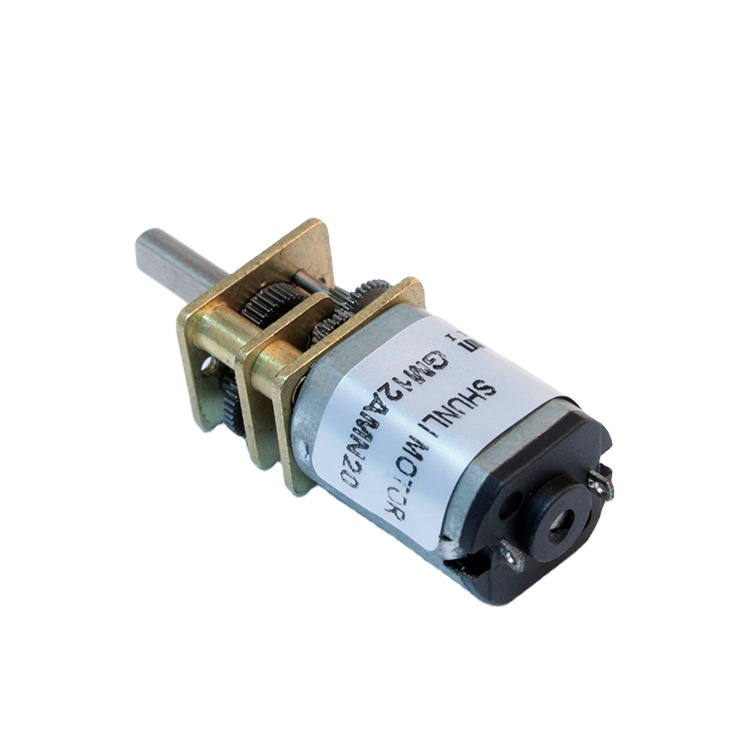

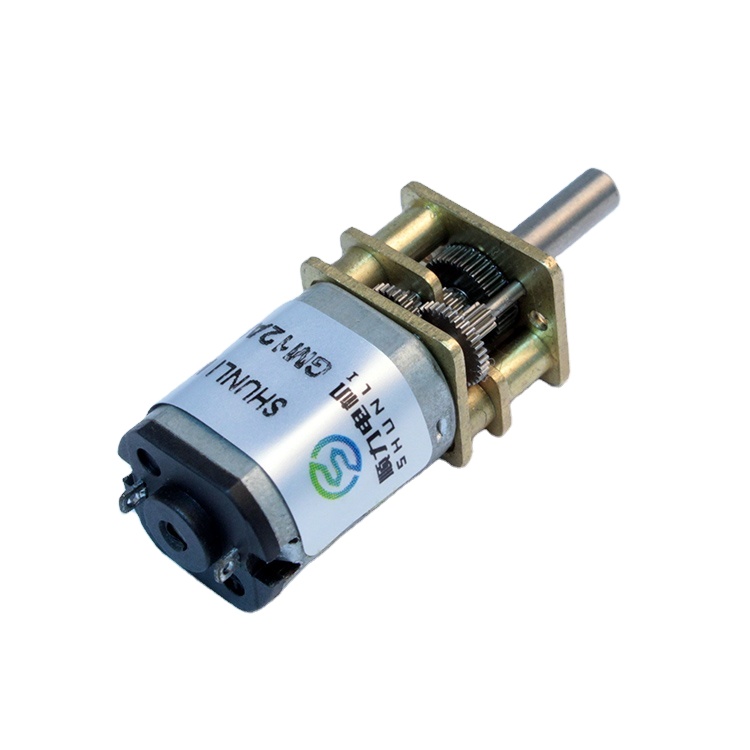

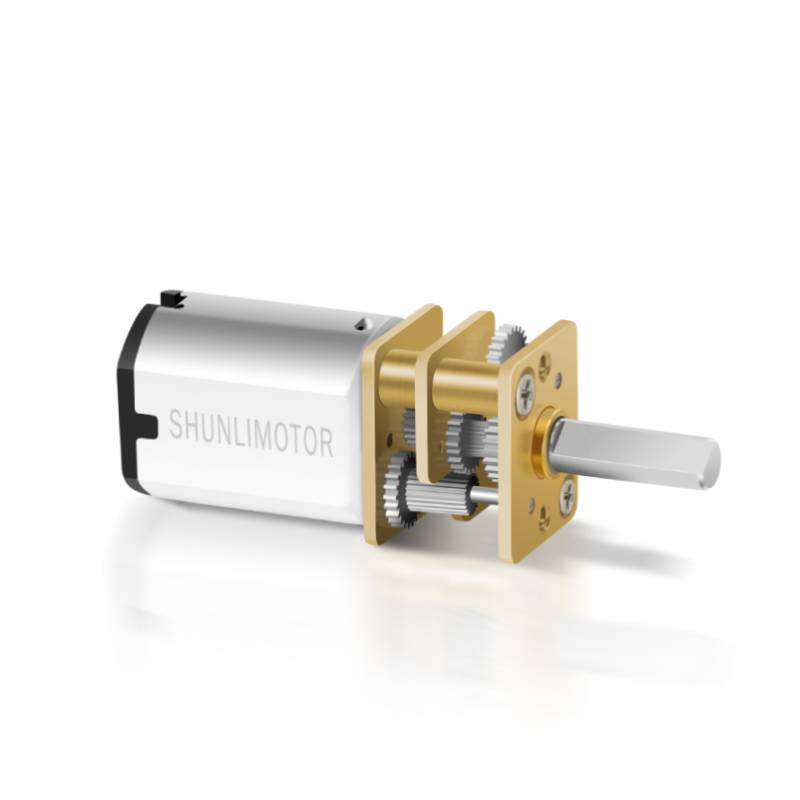

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor
Product Description
š¦ Product Description

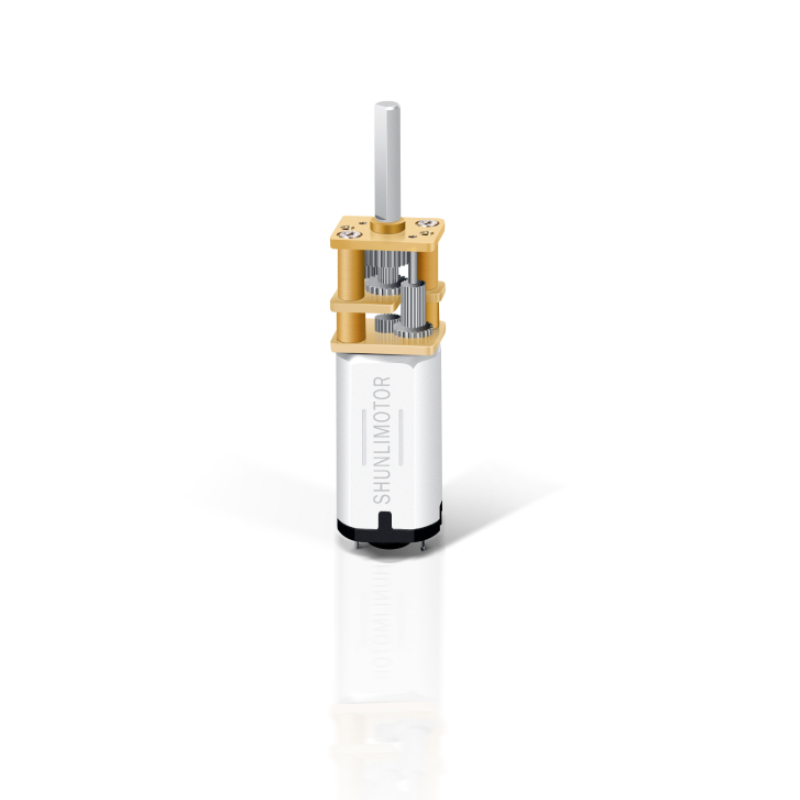

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

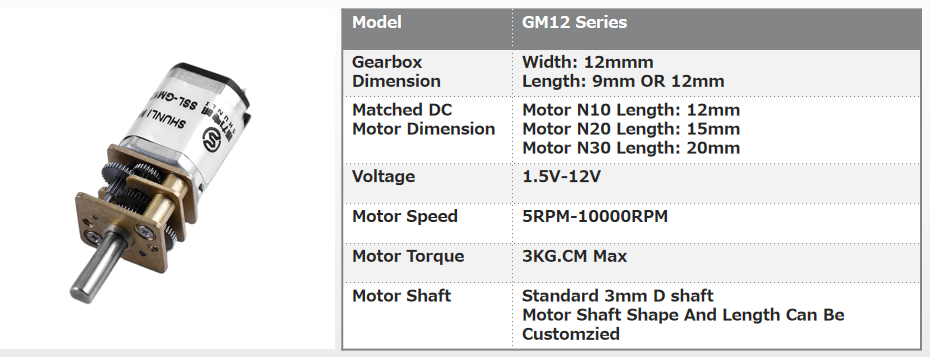

Product Details
Motor Customized Specification, Please Contact Us.

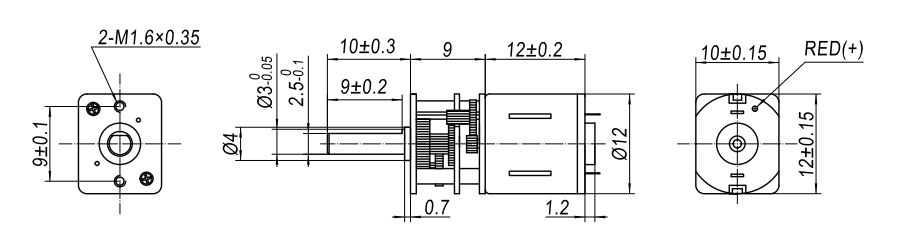

š Reference Drawing
GM12AMN10

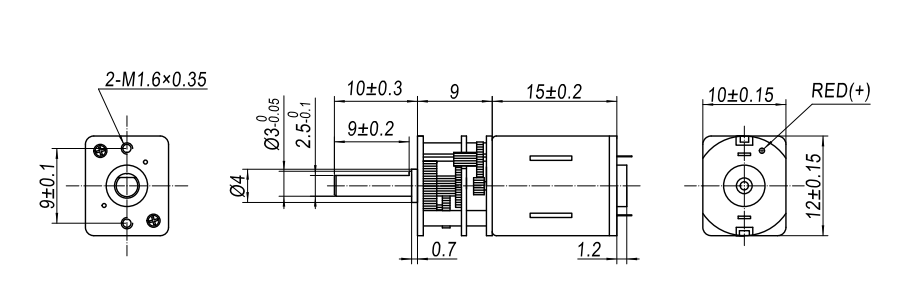

GM12AMN20

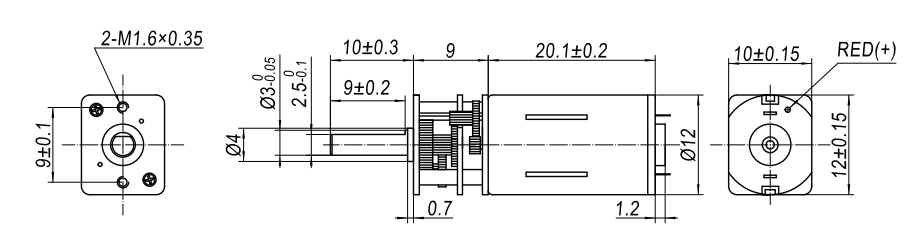

GM12AMN30

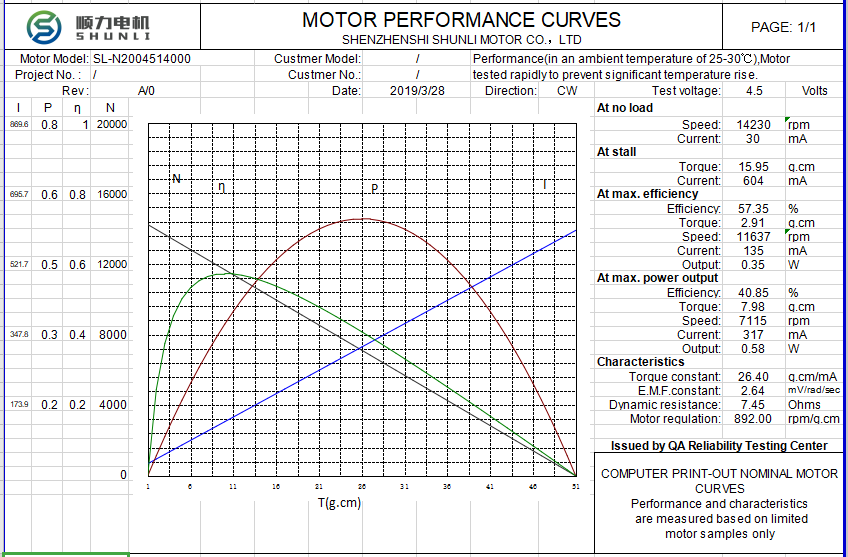

š Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m) | Current (mA) | Torque (mN.m) | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ā¤ 80 | 55 | ā¤ 285 | 5.5/55 | ā¤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ā¤ 55 | 80 | ā¤ 140 | 2.8/28 | ā¤ 700 | 120/1200 | |
| GM12AMN30-10K | 1 : 10 | 2500 | ā¤ 60 | 2200 | ā¤ 195 | 4.0/40 | ā¤ 400 | 26/260 | |
Gearbox Technical Data
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length āLā (mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
š Application
ā
Quality & Certifications
ā Why Choose Us
Professional Production
We are a factory specialized in producing motors for more than 14 years. With a professional R&D team, mature management, and experienced engineers, we provide a reliable purchasing experience.
Strict Quality Control
From material reception to shipment, every step is carefully checked. Quality is the basis of our development.
š ļø Our Service
Gold seller with high credibility.
100% on-time delivery rate.
Samples within 2 weeks; Customized samples within 3 weeks.
Timely reply within 2 hours.
š May Be You Like
Give us a chance to cooperate with you!
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Online Assurance Order, supporting Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can apply for others if required.
How is your Quality Control?

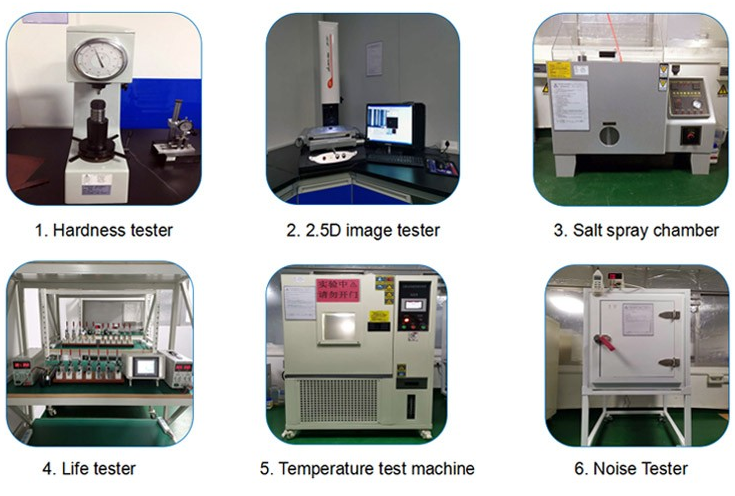

We have professional checking staff on every process and use machines like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers for final verification.
What is the estimated delivery time for samples?
Standard samples are produced within 2 weeks, while customized samples typically take within 3 weeks.
