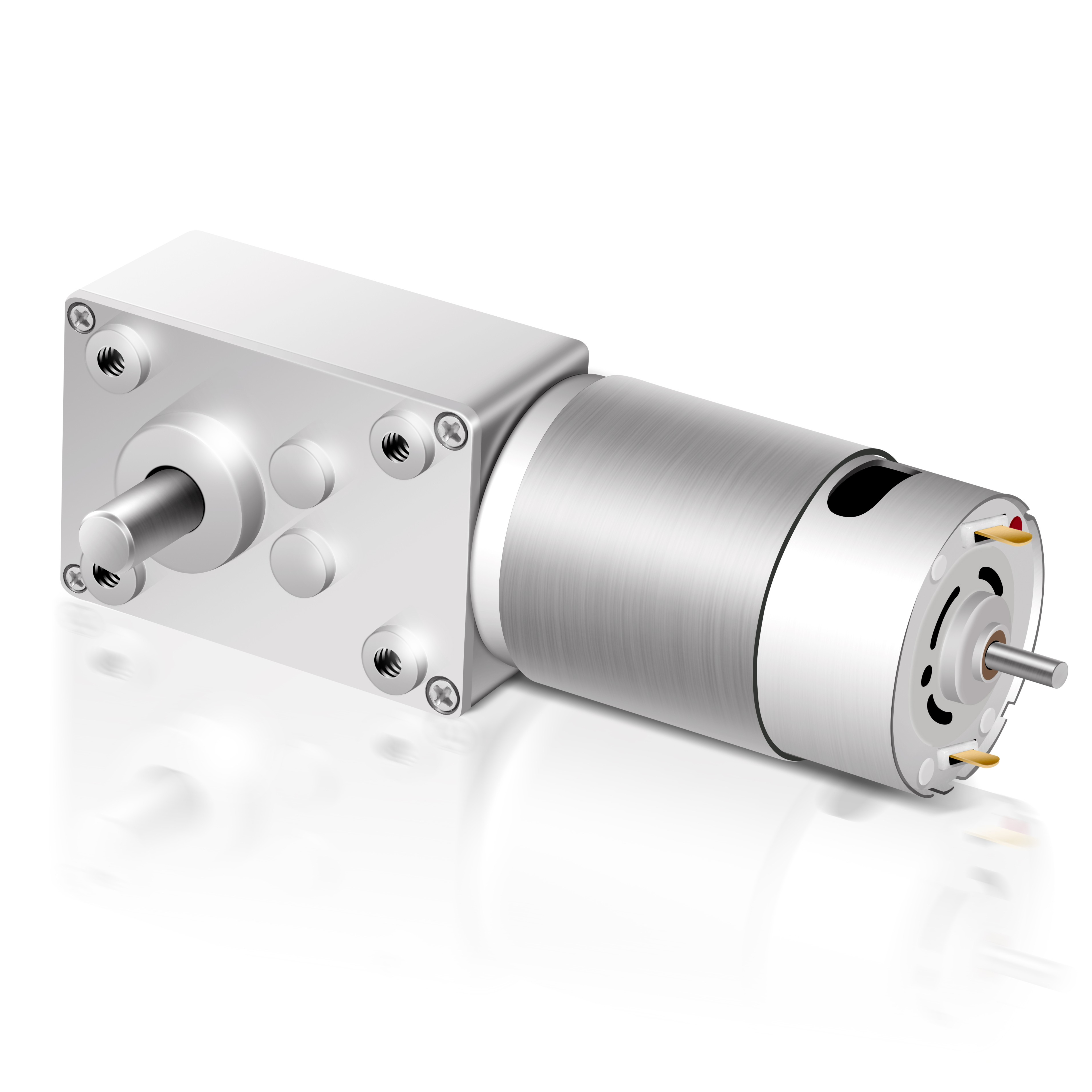

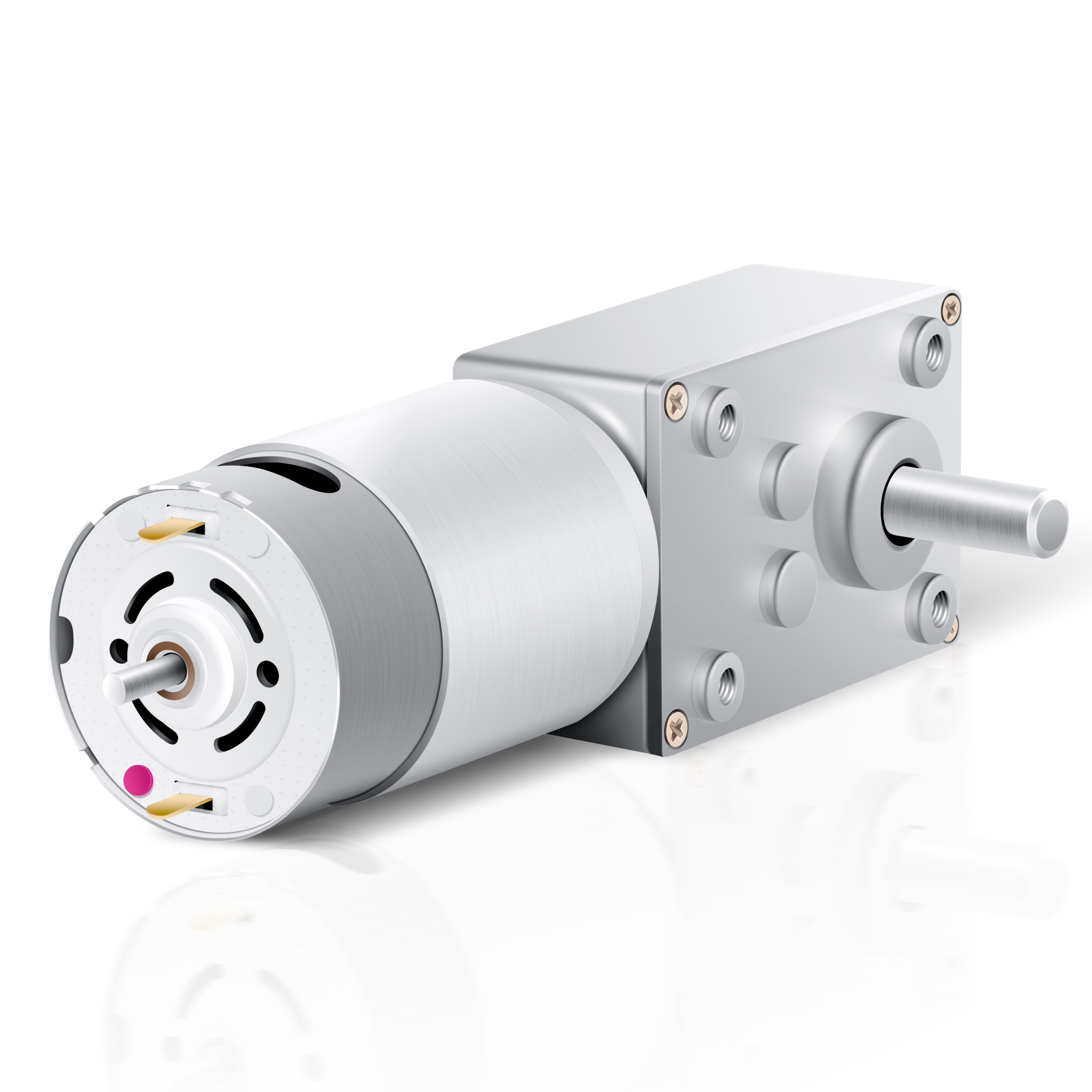

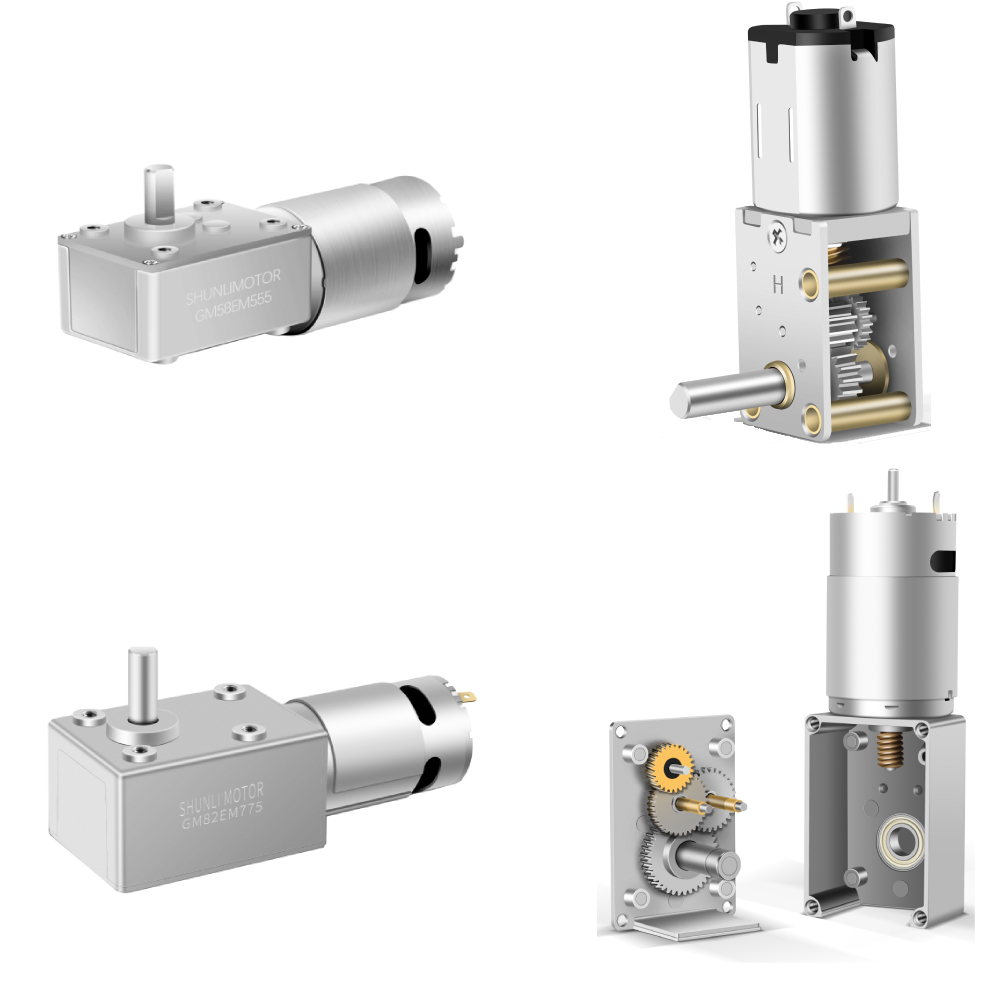

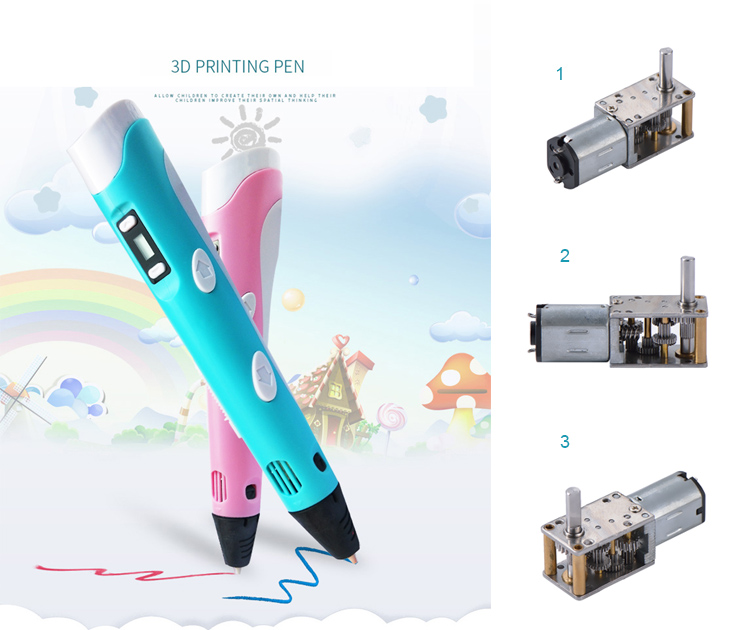

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Product Description

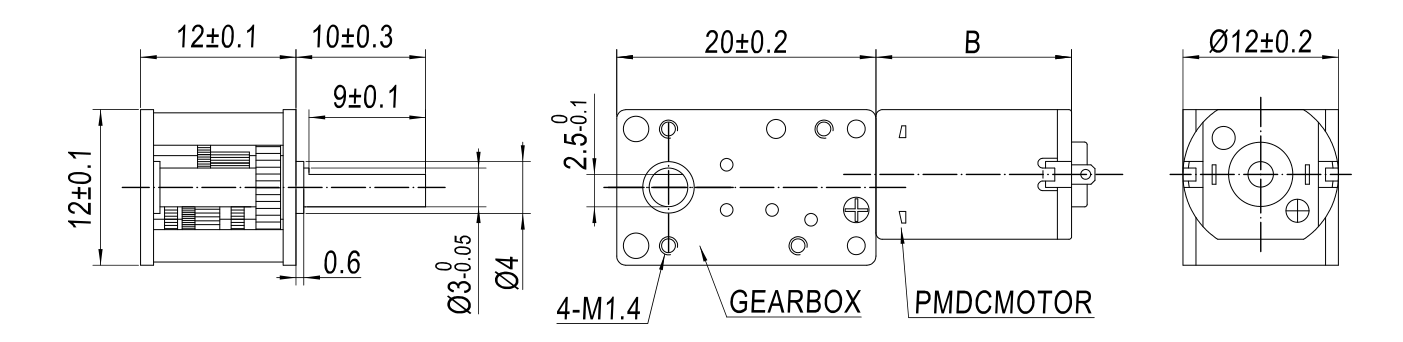

Product Design
Gearbox Technical Data
| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
|---|---|
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
Gearmotor Performance Metrics
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |
PMDC Motor Technical Data
| PMDC MOTOR Model | Length “B”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |

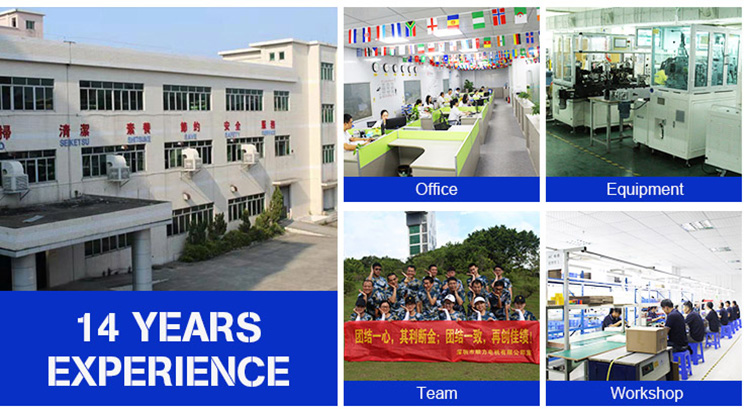

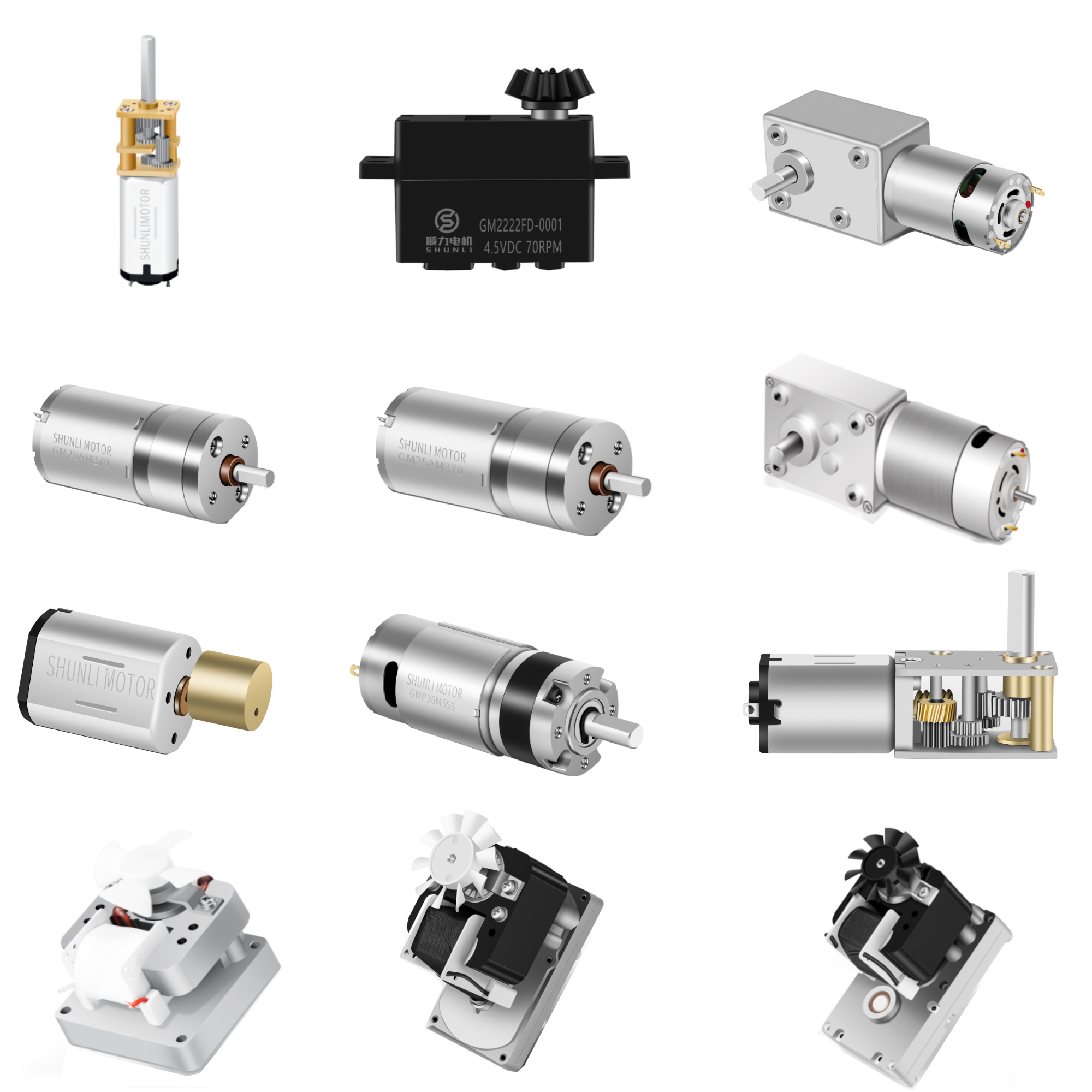

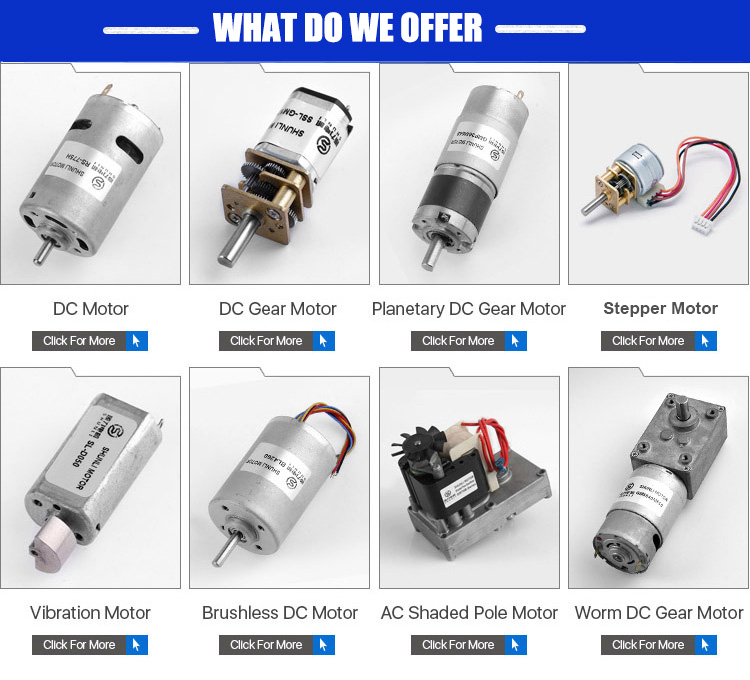

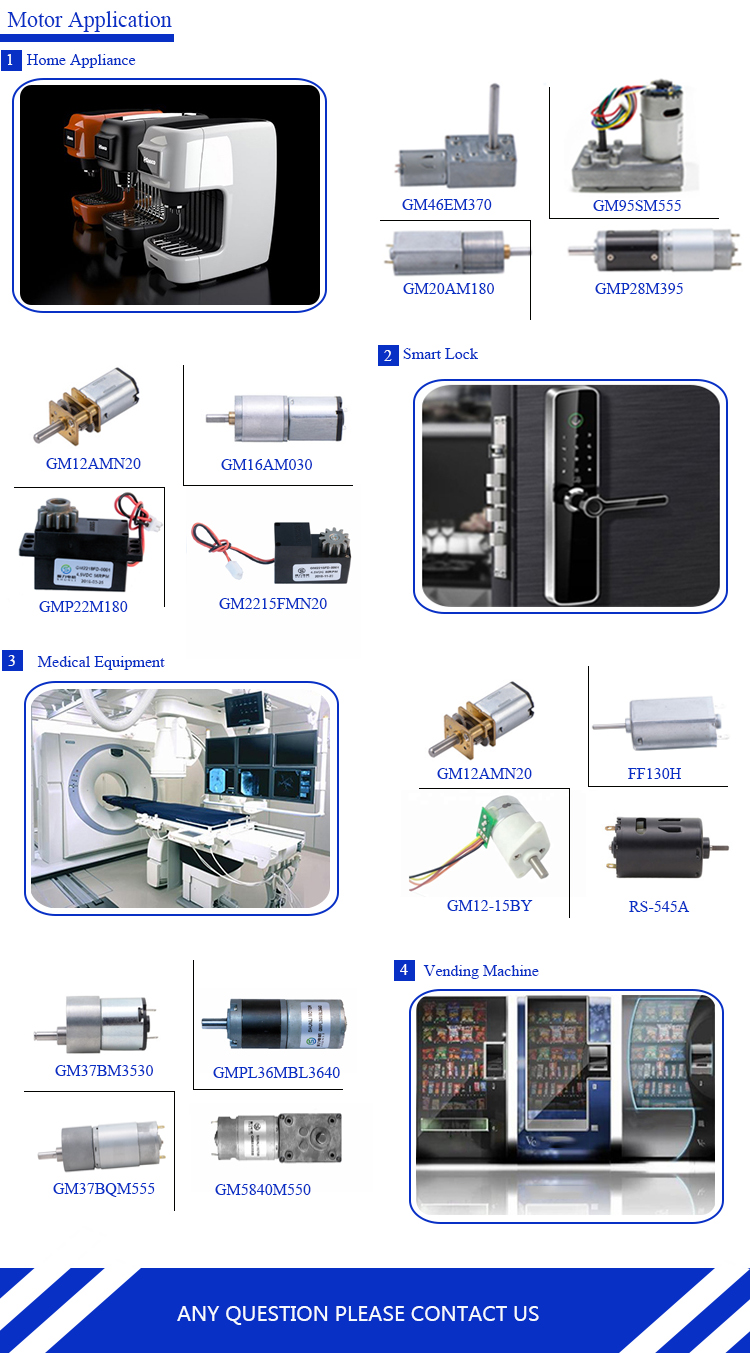

Established in 2005, this high-tech enterprise integrates the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, Western kitchen equipment, machinery, and electronics, and other high-end transmission structures. These products are exported to more than 50 countries and regions worldwide.
QAre you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
QWhat is the payment term for new customers?
We can draw up online assurance orders for new customers, which can be paid online with Mastercard, Visa, etc. Customers can also choose to pay with PayPal, TT, or other convenient methods.
QIf I cannot find a suitable motor on the website, can you customize it?
Yes, we can customize a suitable motor according to our customers' specific application requirements.
QDo you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other standard certificates. If you have specific certification requirements for your region, we can also apply for them.
QHow do you manage Quality Control?

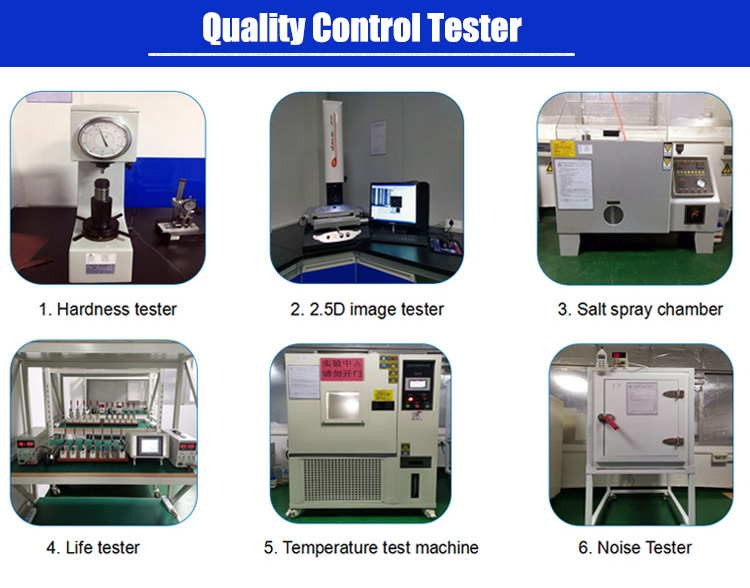

We have professional inspection staff on every production line process. After finishing the motor assembly, we run quality tests using a full range of testing machinery, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
