Manufacturer Worm 755 Dc Motor 6 Volt Gear Small Micro 12v 15000rpm Permanent Magnet Brush Home Appliance
Product Description
Product Description

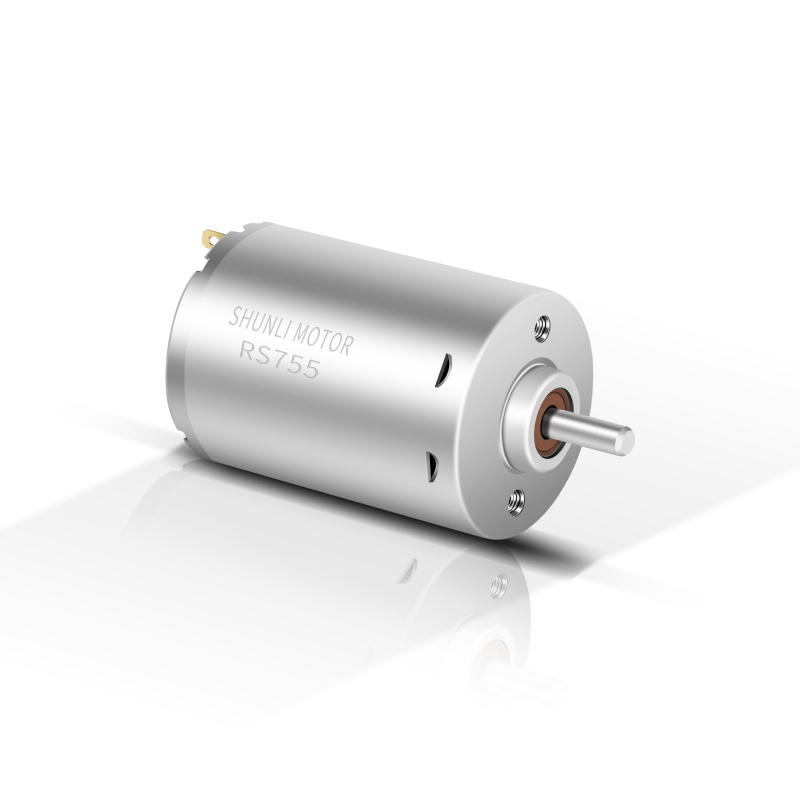

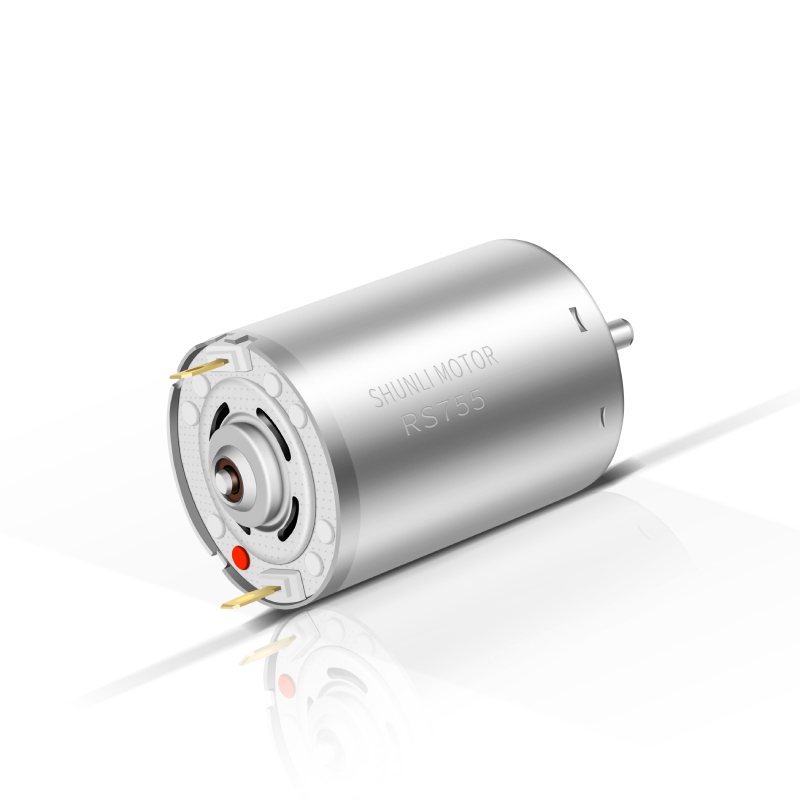

6v 12v High RPM 9000rpm-15000rpm 750/755 DC Motor
📋 Product Details
Motor Customized Specification available.

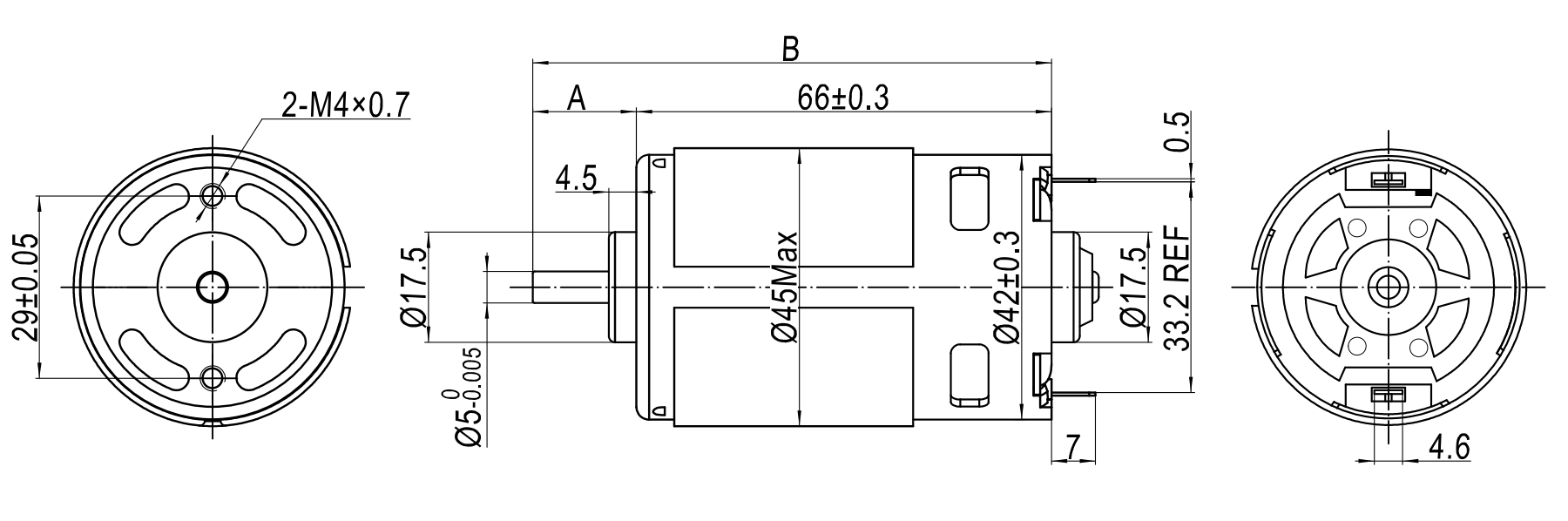

Reference Drawing
➠ RS - 755 H
➠ RS - 775 H
Note: The length of shaft can be customized.

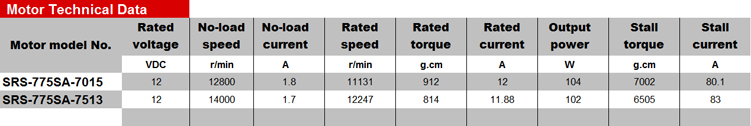

Technical Specifications
| PMDC MOTOR Technical Data | |||||||||||
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-750H | 7032R | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6 | 66.6 | 55.6 | 393.1 |
| RS-755H | 7512R | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1 | 38.2 | 66.34 | 306.9 |
Applications
Certifications
Why Choose Us
🏭
Manufacturing Excellence
Specializing in motor production for more than 14 years with professional R&D teams and experienced engineers to ensure a superior experience.
Specializing in motor production for more than 14 years with professional R&D teams and experienced engineers to ensure a superior experience.
✅
Strict Quality Control
Every material and process is checked from reception to shipment. Quality is the basis of our development.
Every material and process is checked from reception to shipment. Quality is the basis of our development.
🚀
Premium Service
✔ 100% On-time delivery rate.
✔ Standard samples within 2 weeks; Customized samples within 3 weeks.
✔ Timely replies to all messages within 2 hours.
Recommend Products
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What are your payment terms for new customers?
We accept online payments via Master Card, Visa, etc. Customers can also use PayPal or TT for transactions.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize motors according to our customers' specific technical requirements.
Do your motors have official certifications?
Yes, we have CE, FCC, ISO, and other certifications. We can apply for additional certificates if required.
How do you ensure quality control?
We have professional inspection staff on every production line. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for samples?
Standard samples are produced within 2 weeks, while customized samples typically take up to 3 weeks.
