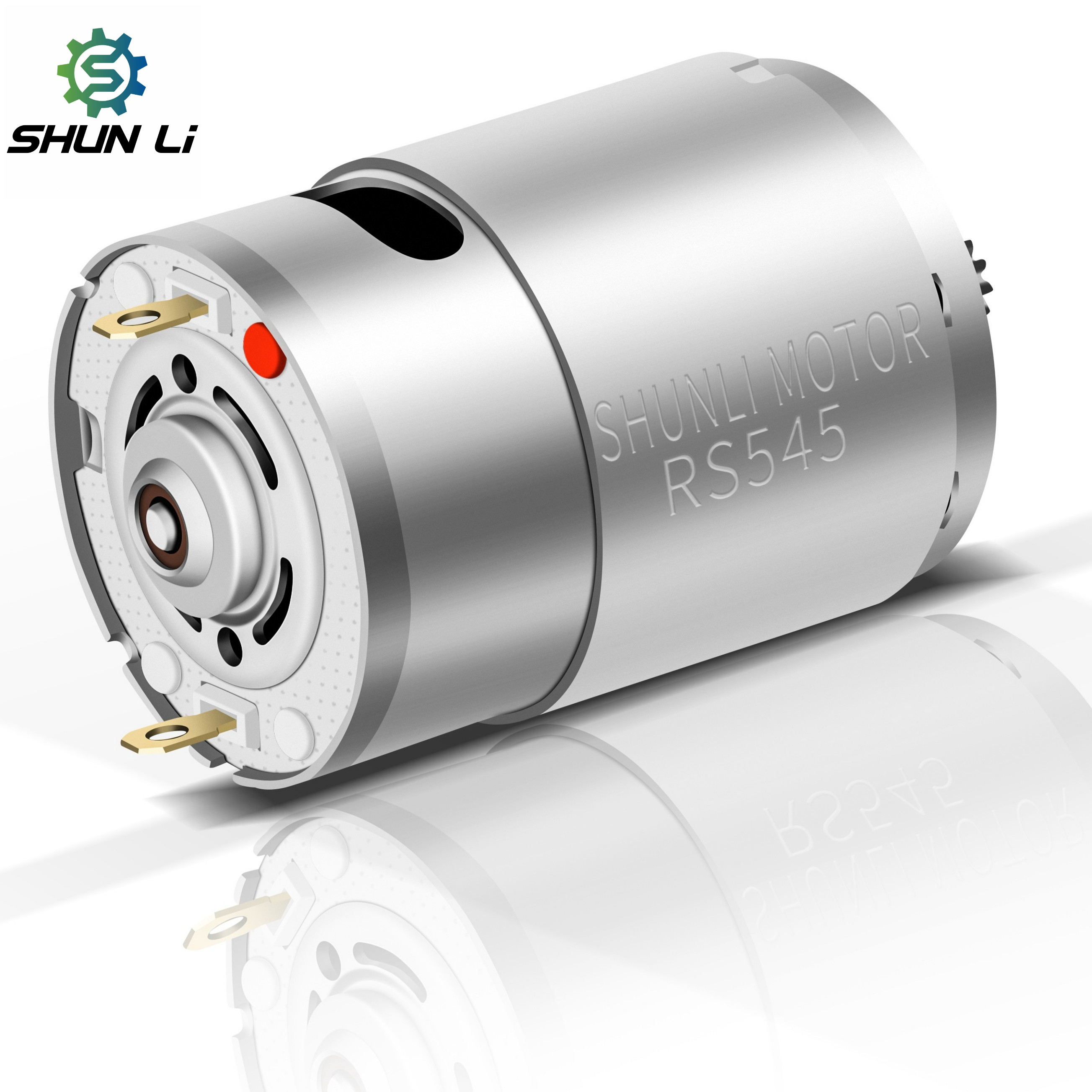

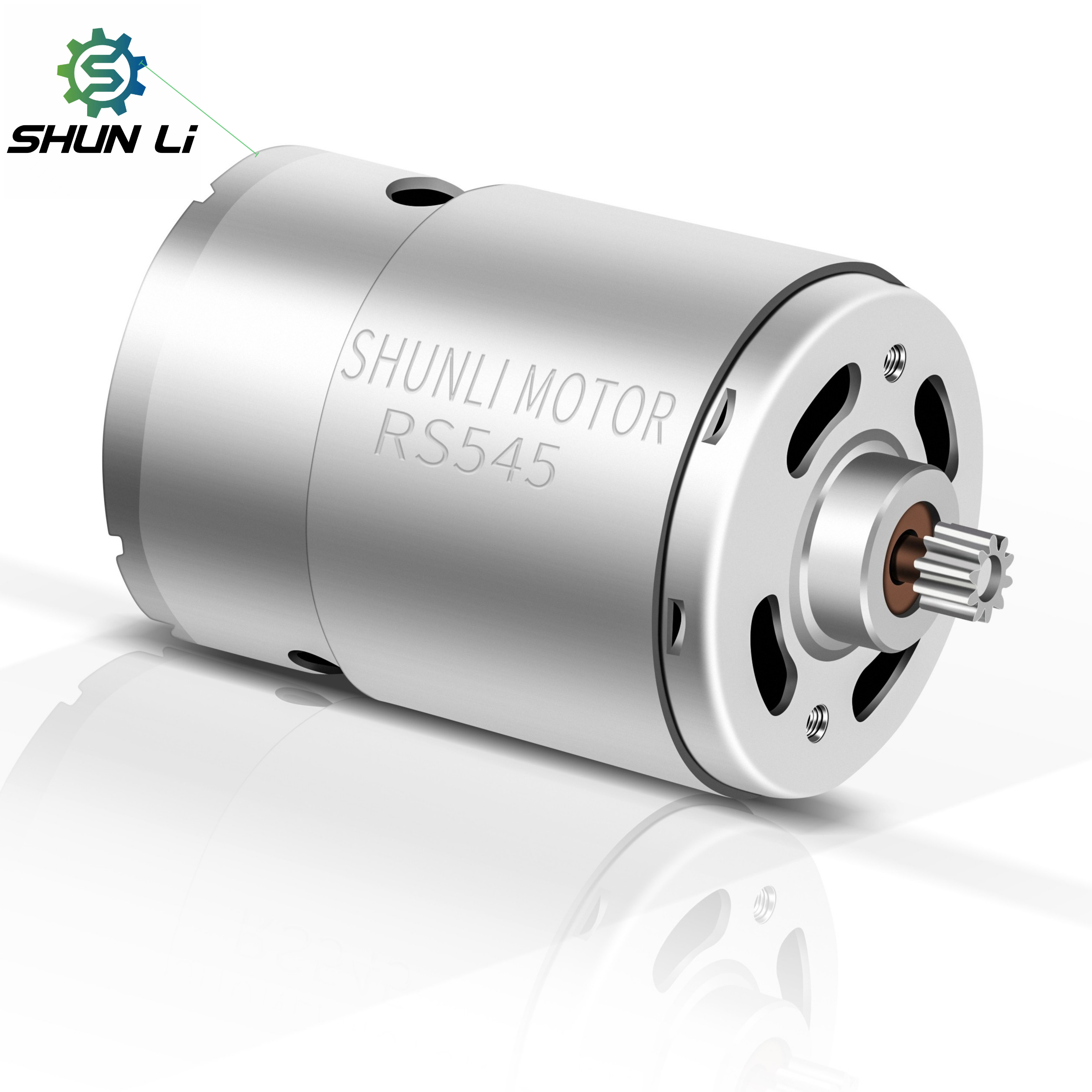

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys
Product Description
Product Description
SRS-555 12v 24v micro dc motor for water pump
Motor Customized Specification available upon request.

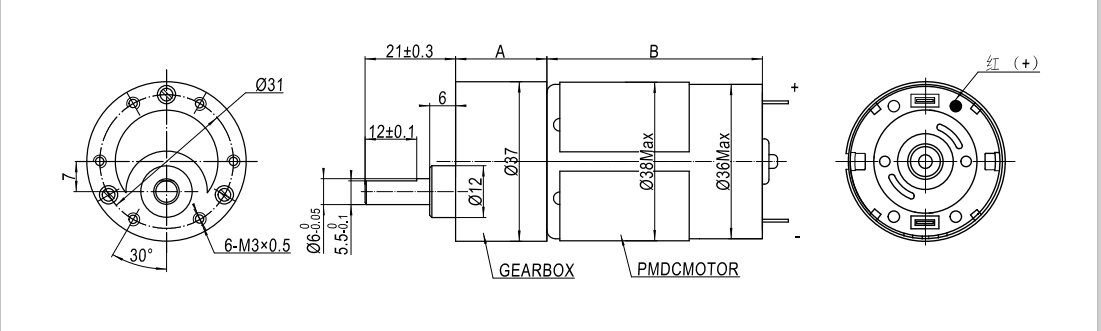

Reference Drawings
Model: RS - 545 A
Model: RS - 555 A
Model: RS - 575 A
Note: The length of shaft can be customized.
Technical Datasheet
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Ref. | Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) |
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 | 10.6 | 4.8 | 204 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 | 40.36 | 48.89 | 281.4 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 | 15.35 | 11.31 | 156 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 | 12.09 | 4.2 | 124.5 | |

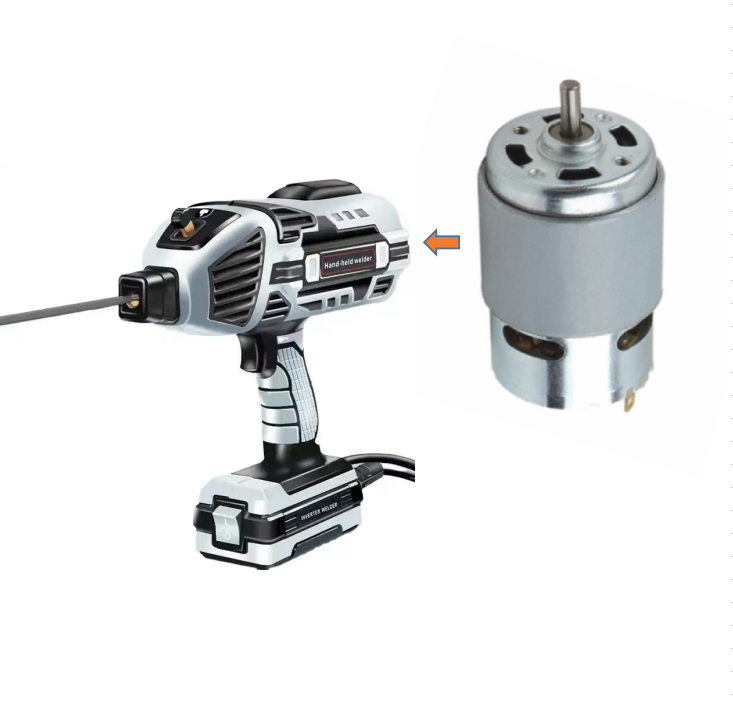

Applications & Industries
Quality Certifications
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of industry experience.
What payment terms are available for new customers?
We support online assurance orders (MasterCard, Visa), PayPal, and TT transfers to ensure a secure transaction for new clients.
Can you customize a motor if I can't find a suitable model online?
Yes, we provide full customization services to modify motor specifications, including shaft length and technical parameters, to meet your specific requirements.
What certifications do your motors hold?
Our products are certified with CE, FCC, ISO, and other international standards. We can also apply for additional certificates if required by your market.
How do you ensure product quality control?
We utilize professional quality checking staff at every production stage and employ advanced testing equipment such as Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical application for these micro DC motors?
These motors are widely used in water pumps, toys, household appliances, and various micro-mechanical systems requiring stable DC power.
