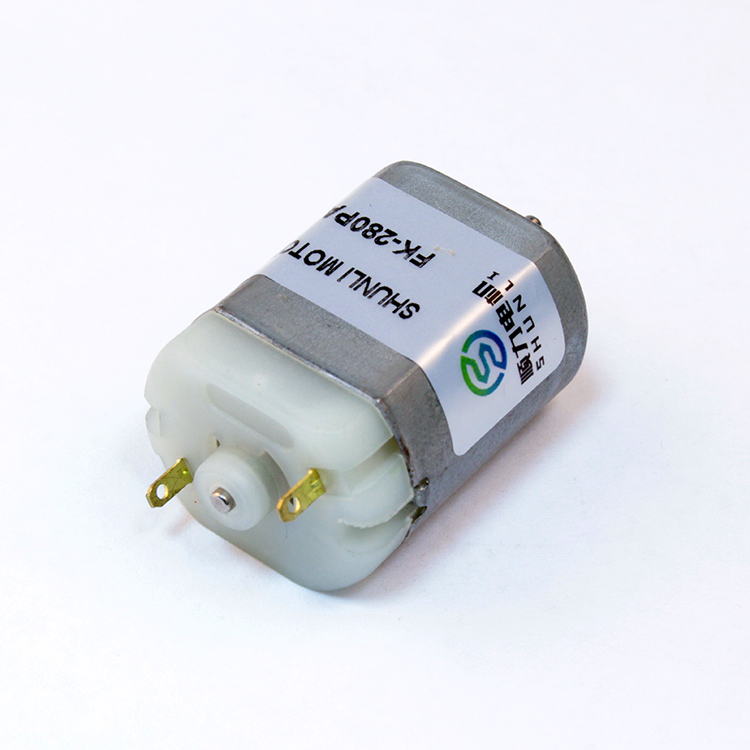

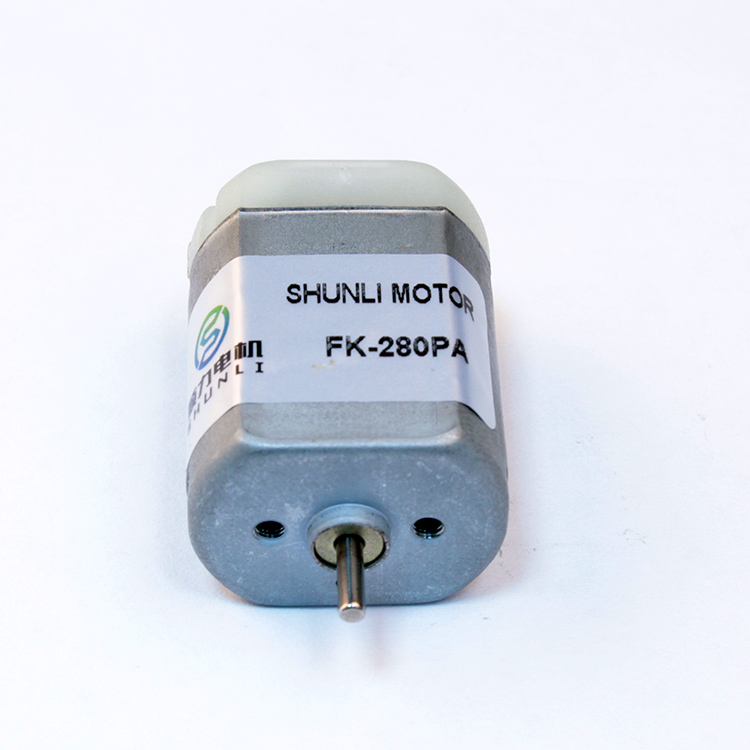

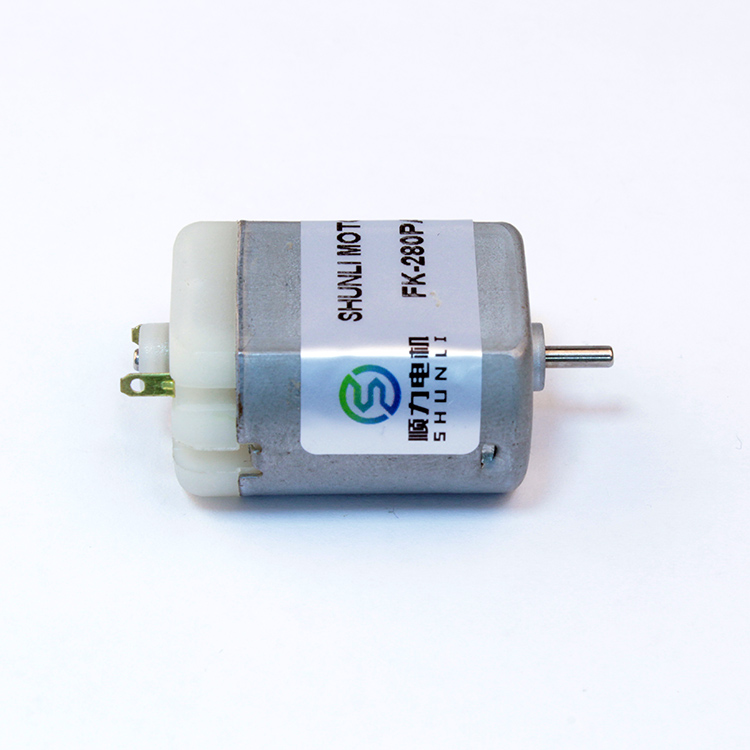

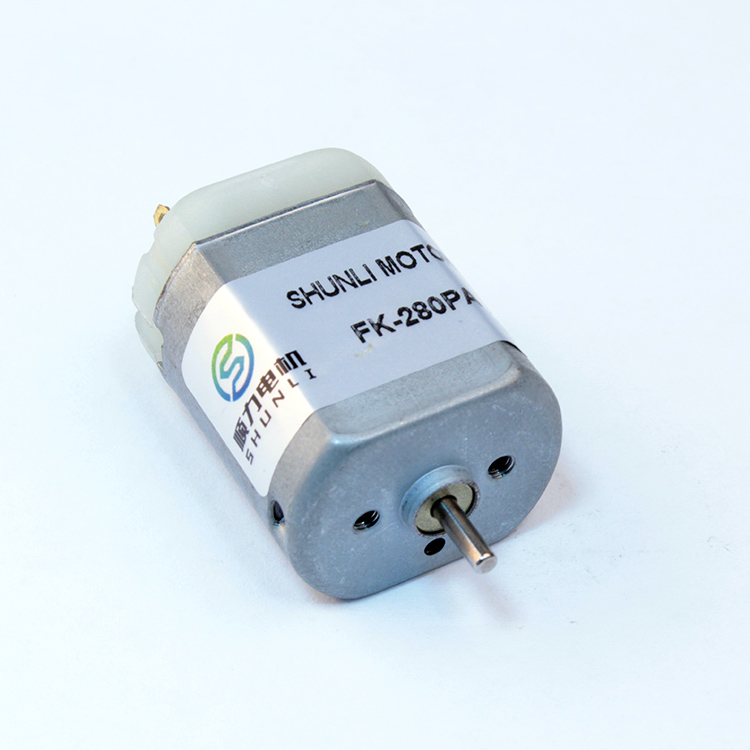

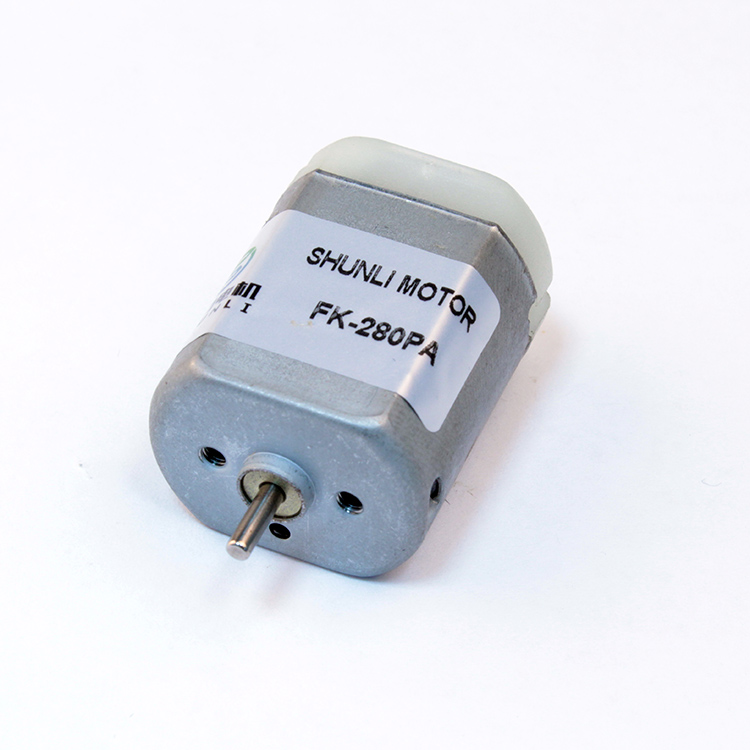

SRC-280 12v Dc Electric Motor Bicycle SRC-280A Micro Dc Motor Shunli Motor Strong or Normal One for Option Permanent Magnet 42g
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Voltage (V) | No-Load | Rated | Stall | |||||||
| Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m | W | mA | mN.m | ||||
| FK-280SA-4525 | 1.0~2.0 | 1.2V | 8670 | 730 | 6560 | 2240 | 1.74 | 1.3 | 8430 | 9.61 | |
| FK-280SA-16245 | 6.0~12.0 | 12V | 7300 | 60 | 6027 | 290 | 3.4 | 2.15 | 1350 | 19.5 | |
Customized parameters are available upon request.
1
Manufacturing Excellence
We are a professional factory specializing in motor production for more than 14 years. With multiple production facilities and a dedicated R&D team, we ensure top-tier engineering and management.
2
Strict Quality Control
Quality is our foundation. From raw material inspection to final shipment, every step is carefully checked to ensure performance and reliability.
High credibility with a proven track record in global sales.
100% on-time delivery rate ensuring your projects stay on schedule.
Fast Prototyping: Samples produced within 2-3 weeks.
Rapid Support: All inquiries replied to within 2 hours.
1. Are you a trading company or a manufacturer?
We are a specialized manufacturer. We have focused on micro DC motors and DC gear motors for over 14 years.
2. What are the payment terms for new customers?
We offer flexible payment options including Online Assurance Orders (Visa, Master Card), PayPal, and T/T transfers.
3. Can you customize a motor if I can't find a suitable one on your list?
Yes, we provide full customization services to adjust motor parameters according to your specific requirements.
4. What certifications do your motors carry?
Our products are certified with CE, FCC, ISO, and other relevant industry standards to ensure global compliance.
5. How do you ensure product quality?
We utilize professional inspection equipment at every production stage, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
6. What is the typical lead time for samples?
Standard samples are typically produced within 2 weeks, while fully customized samples are delivered within 3 weeks.
