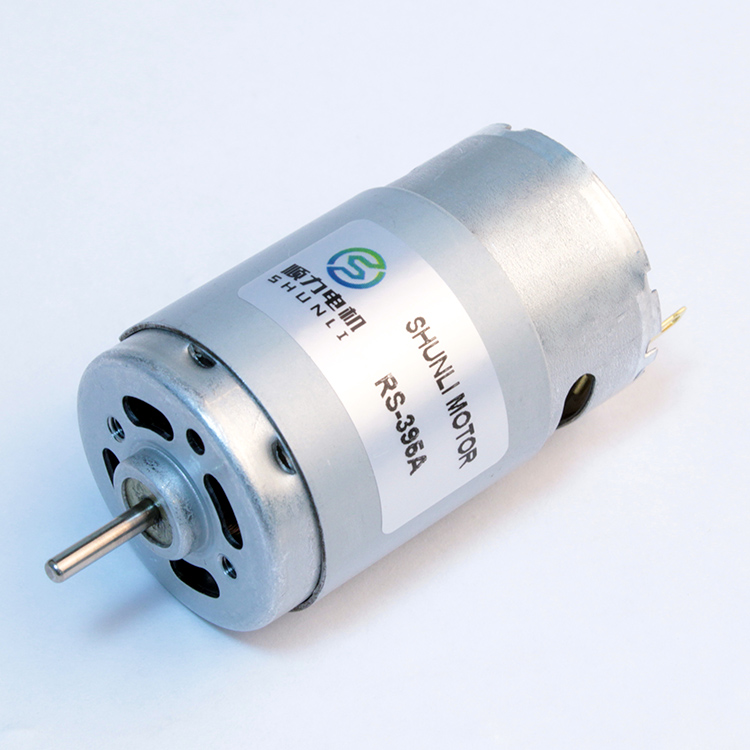

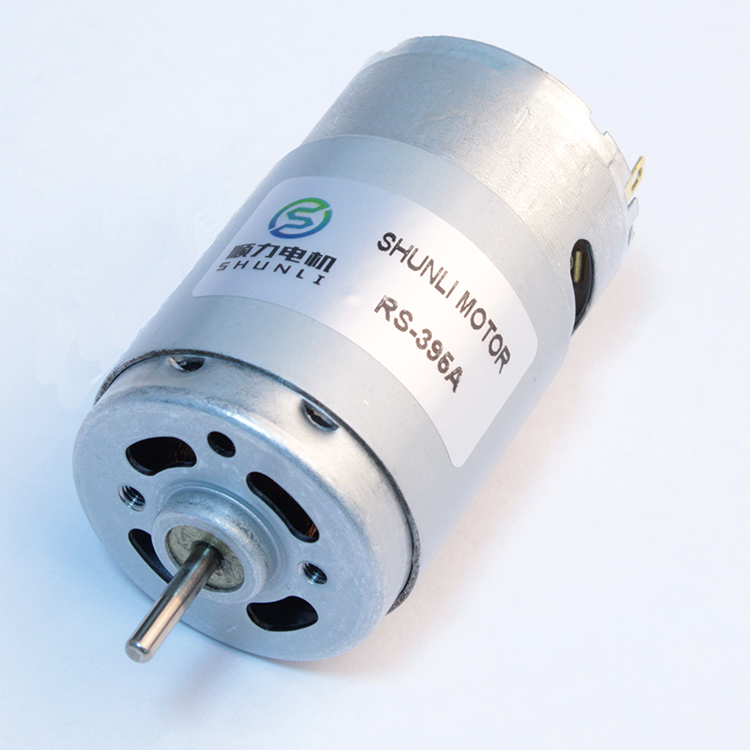

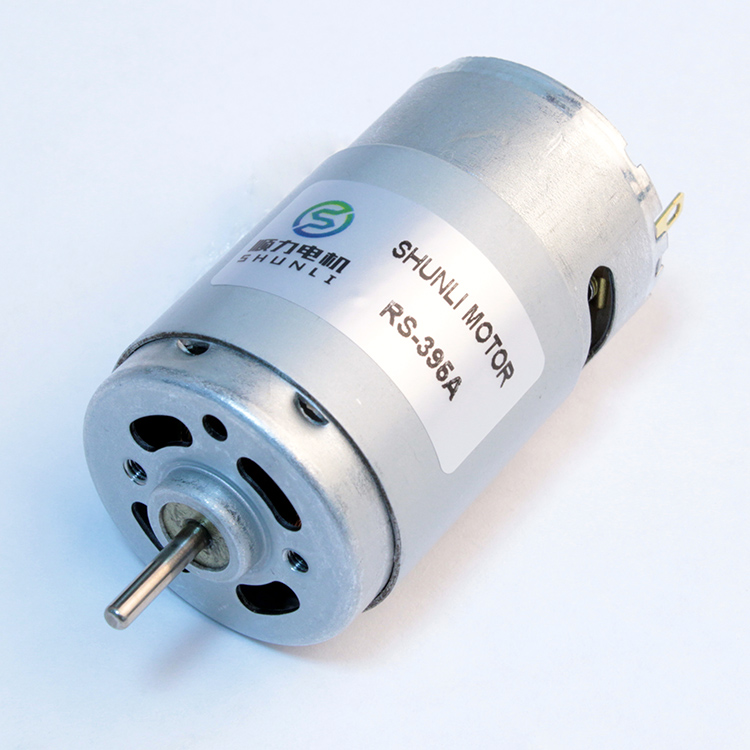

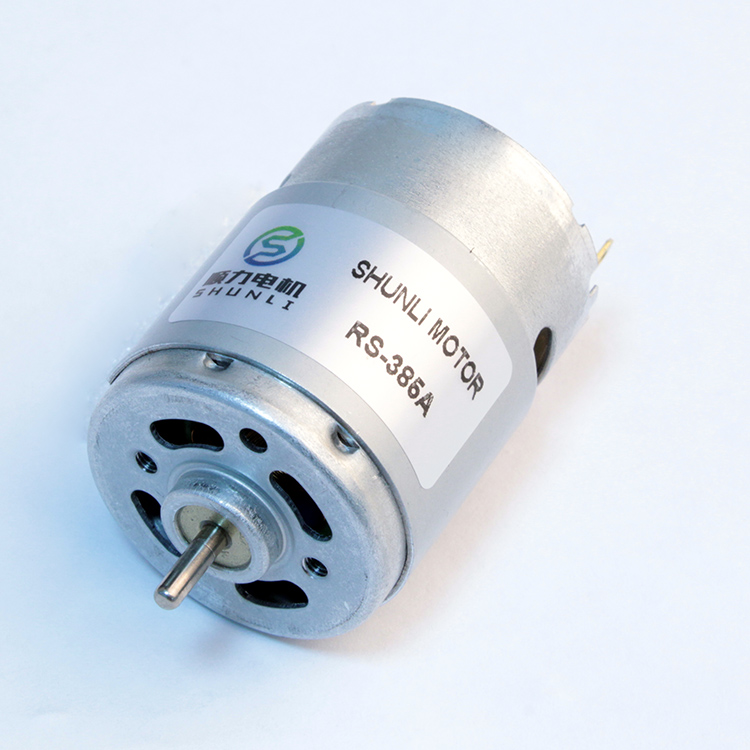

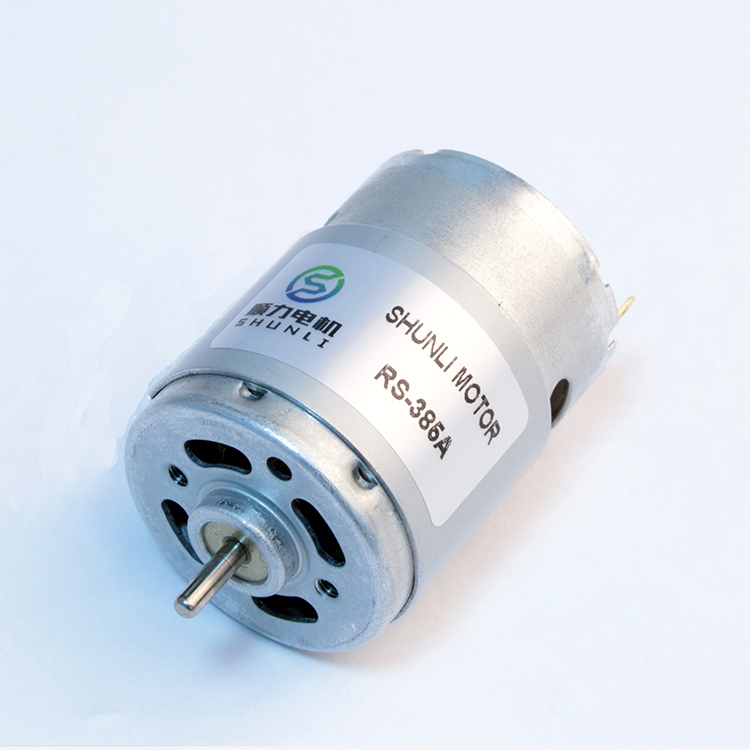

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Product Description
RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque
📦 Product Details
⚡ Motor Customized Specification Available
📐 Reference Drawing
🔹 Model: RS-365
🔹 Model: RS-385
🔹 Model: RS-395
📏 The length of shaft can be customized.
📊 Reference Datasheet
| PMDC MOTOR TECHNICAL DATA | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07 | 2.72 | 2.22 | 42.2 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75 | 1.31 | 8.9 | 80.4 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83 | 1.8 | 1.06 | 30.4 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09 | 6.68 | 2.66 | 54.9 | |
⭐ Recommend Products
❓ Frequently Asked Questions
1. What is the typical voltage range for these motors?
These micro DC motors generally operate within a range of 6V to 24V, depending on the specific model and requirements.
2. Can the motor shaft be customized?
Yes, the length and shape of the output shaft can be customized to fit your specific application needs.
3. What are the common applications for RS-380 and RS-385 motors?
They are widely used in electric drills, garden tools, toy models, home appliances, and various high-speed DIY projects.
4. What is the maximum speed available?
Models like the RS-380/385 can reach high speeds up to 13,000 RPM or more under rated conditions.
5. Are these motors suitable for high-torque tasks?
Yes, these motors are designed with a large torque output, making them ideal for tools requiring significant power in a compact size.
6. Do you provide technical support for integration?
Technical datasheets and reference drawings are provided to help engineers integrate the motors into their designs effectively.
