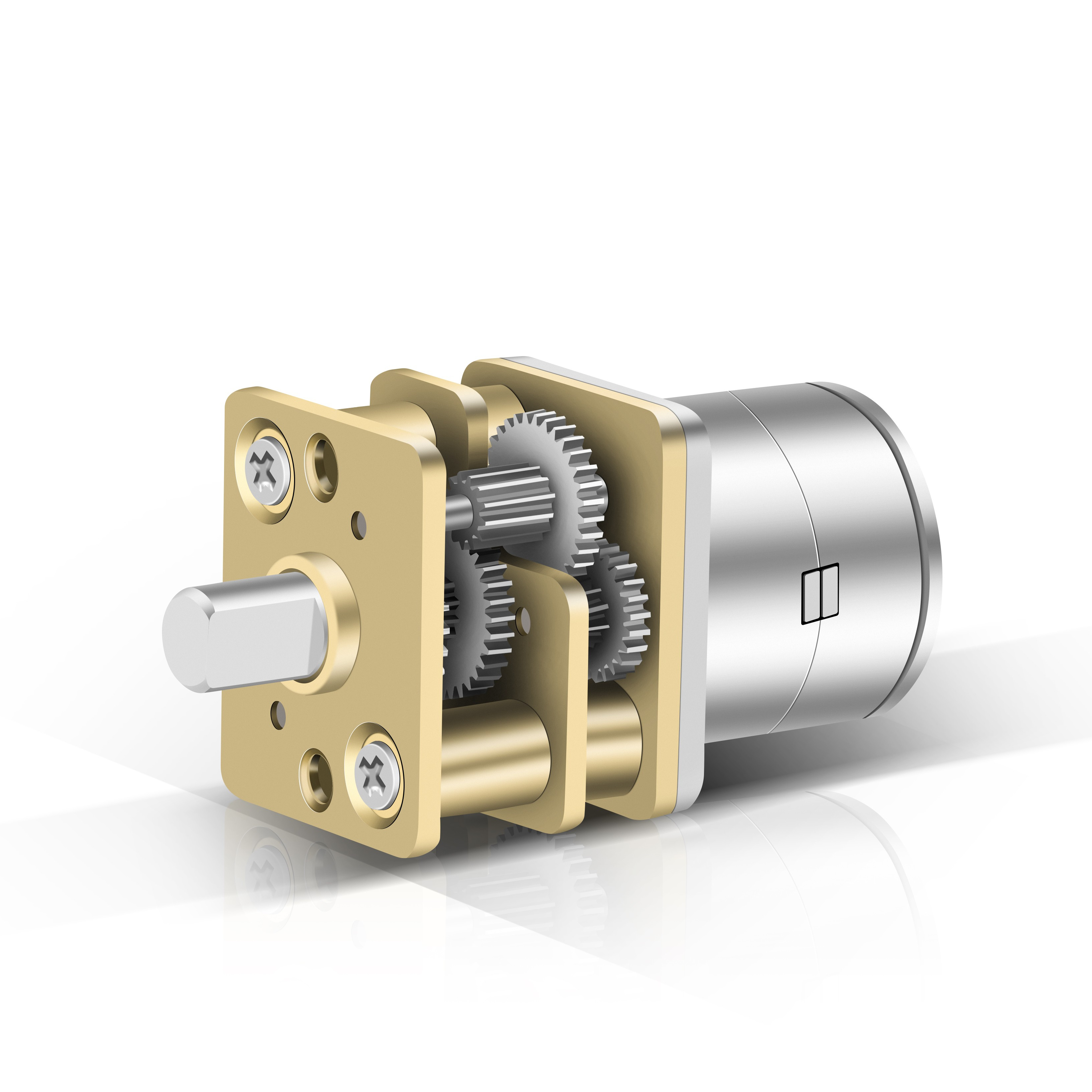

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Product Description
⚙️
Product Description
Customized 12mm micro DC gear motor. Non-captive stepper motor, miniature 5V stepper motor designed for medical equipment.
📐

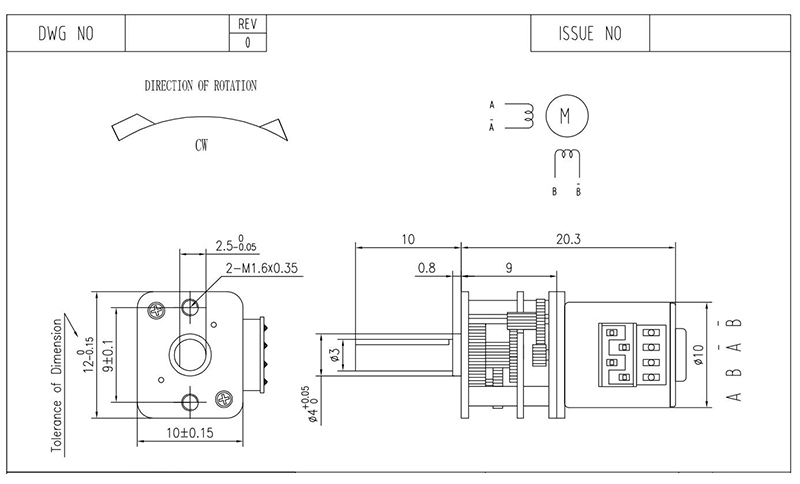

Reference Drawing - GM12-10BY
📊
Gearbox Technical Data
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K to 2418K |
| Length "L" (mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
⚡
Gearmotor Technical Parameters
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated Condition | Stall Condition | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (Kgf.cm) | Current (mA) | Torque (Kgf.cm) | |||
| GMP22M130-64K | 1:64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.95 | ≤ 1700 | 4.2 |
| GMP22M180-256K | 1:256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 3.2 | ≤ 3900 | 12.5 |
🔍

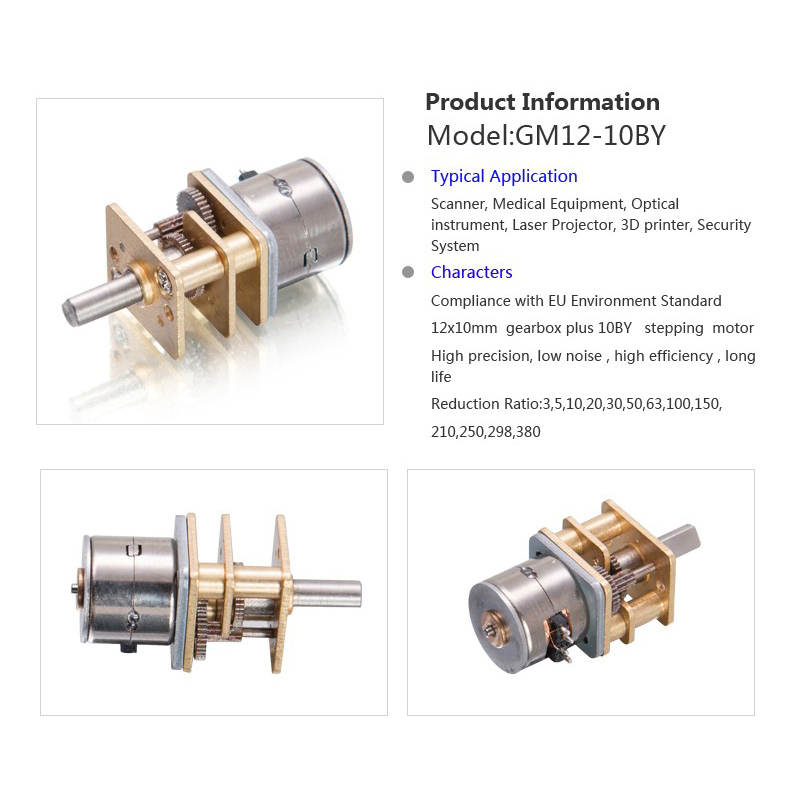

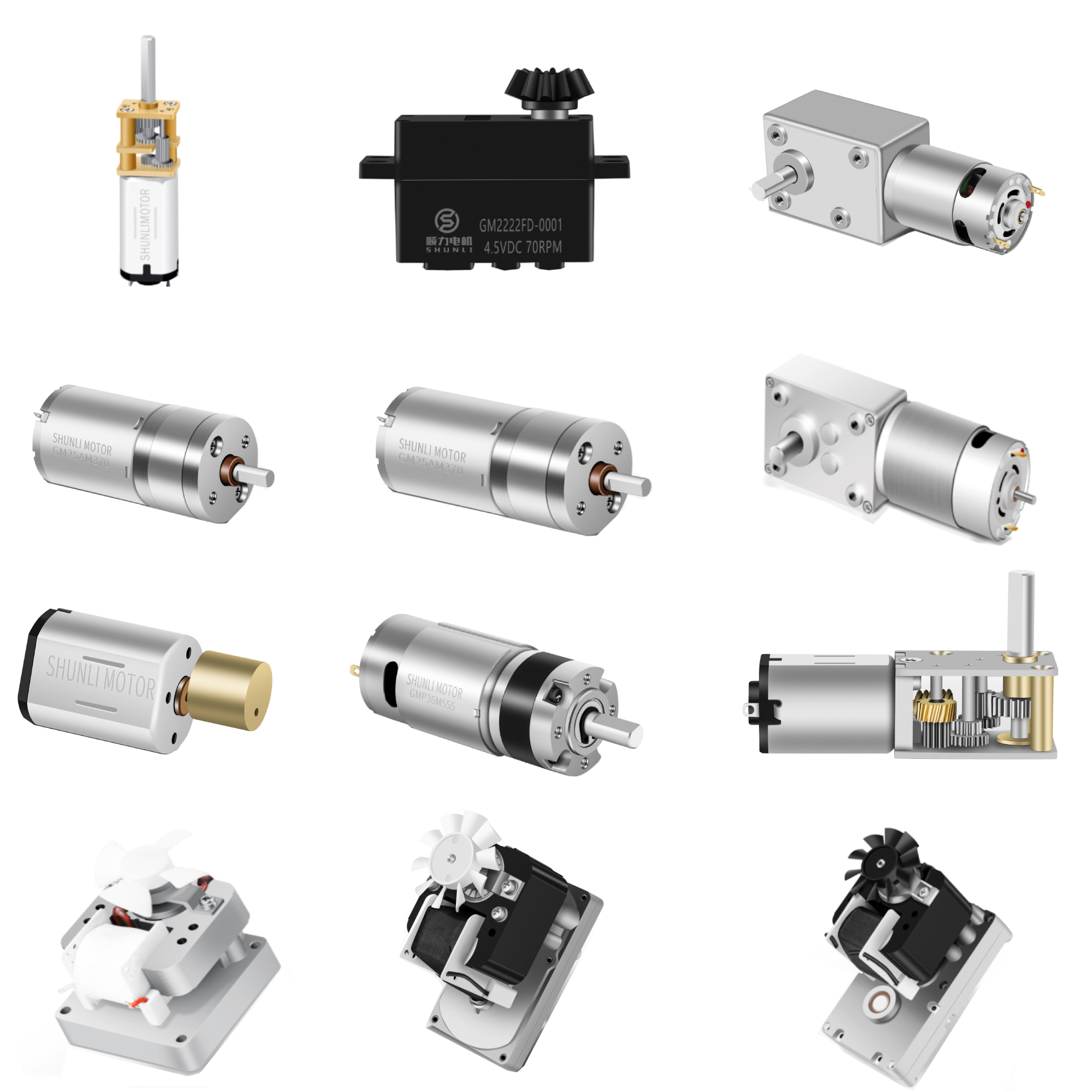

Product Variations & Series
🛡️
Certifications & Quality
🏭
Production Capability
Established in 2005, our facility is a high-tech enterprise integrating research, development, production, and sales of micro DC motors, planetary geared motors, and special gearbox motors. Products are widely used in automobiles, communications, smart homes, medical equipment, and high-end transmission structures across 50 countries.
❓
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors for over 14 years.
Can you customize a motor for specific requirements?
Yes, we can customize motor specifications, dimensions, and gearboxes according to your specific project needs.
What payment terms do you offer for new customers?
We support multiple payment methods including online assurance orders (MasterCard, Visa), PayPal, and TT transfers.
Do your motors have international certifications?
Yes, our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates if required.
How do you ensure the quality of your products?
We have professional inspection staff on every production line. Finished motors undergo rigorous testing using hardness testers, 2.5D image testers, salt spray chambers, and noise testers.
In which industries are these motors typically used?
Our motors are widely applied in medical equipment, smart home devices, security systems, and high-end machinery electronics.
