Shunli 6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price
Product Description
⚡ Product Description
6v 12v 24v 15000 rpm dc motor rs-555 with the lowest price
💎 Product Details
Motor Customized Specification available upon request.

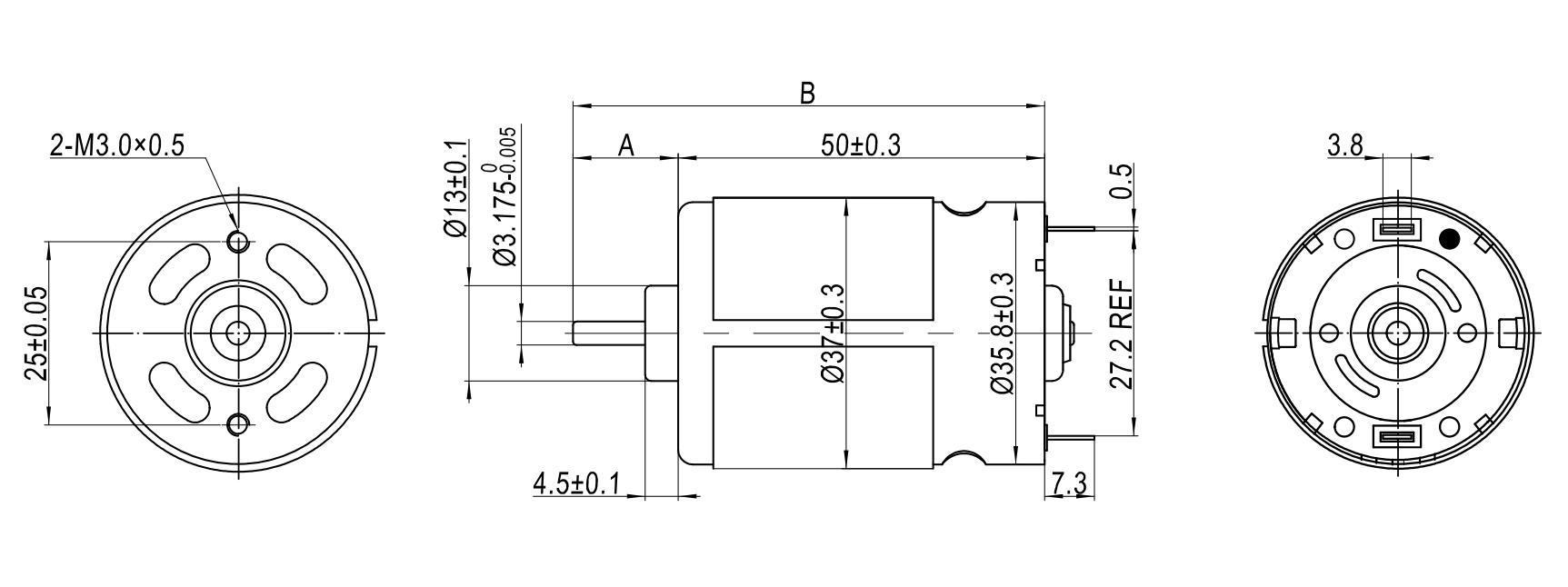

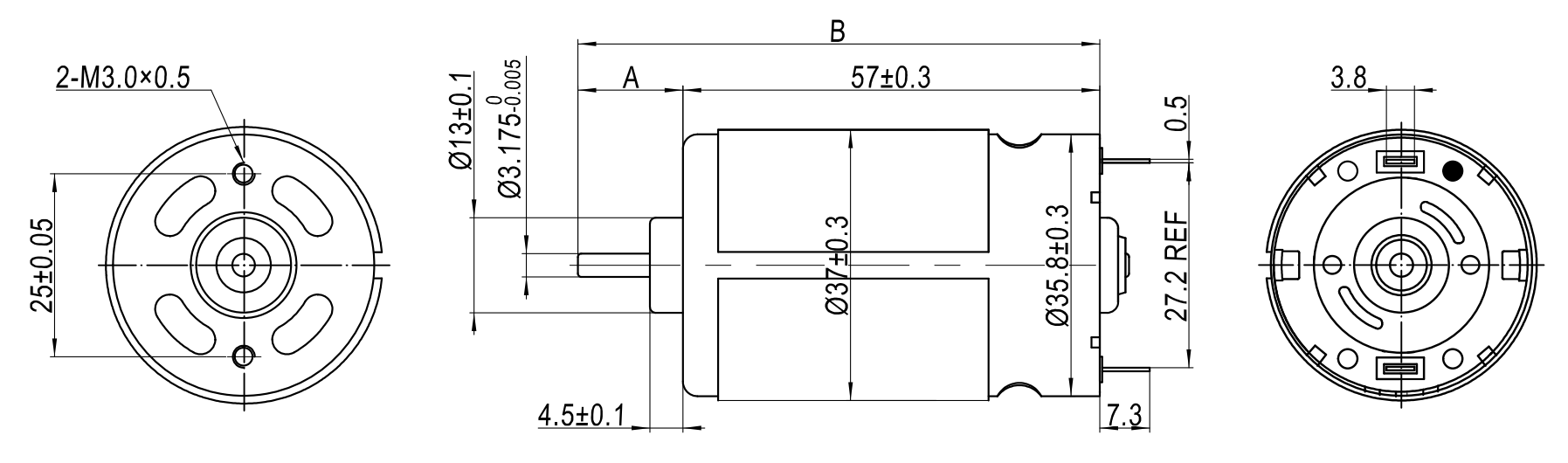

📏 Reference Drawing
🔹 RS - 545 A
🔹 RS - 555 A
🔹 RS - 575 A
The length of shaft can be customized.
📊 PMDC MOTOR Technical Data
| Model | Rated Voltage(V) | No-Load | Rated | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | |
| RPM | A | RPM | A | mN.m | W | A | mN.m | |||
| RS-550H | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 | 10.6 | 4.8 | 204 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 | 40.36 | 48.89 | 281.4 |
| RS-555H | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 | 15.35 | 11.31 | 156 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 | 12.09 | 4.2 | 124.5 |
🚀 Applications & Certifications
🏆 Why Choose Us
1. Professional Manufacturing
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management ensure a high-quality experience.
2. Stringent Quality Control
From material reception to shipment, every step is carefully checked. Quality is the basis of our development.
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of experience.
Can you customize a motor for my specific requirements?
Yes, we can customize motor specifications, including voltage, speed, torque, and shaft dimensions, to meet your needs.
What payment methods do you support?
We support various secure online payment methods including credit cards (Visa/MasterCard), PayPal, and wire transfers (TT).
What certifications do your motors have?
Our products are compliant with CE, FCC, and ISO standards. We can apply for additional certifications if required.
How do you ensure product quality?
We employ professional inspection staff at every stage. Finished motors undergo rigorous testing using hardness testers, salt spray chambers, and life testing machines.
Can I request samples before placing a bulk order?
Yes, we provide samples for testing to ensure the motor fits your application perfectly before moving to mass production.
