6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor
Product Description
Product Description
6v 12v 24v micro motor electric car motor micro dc motor

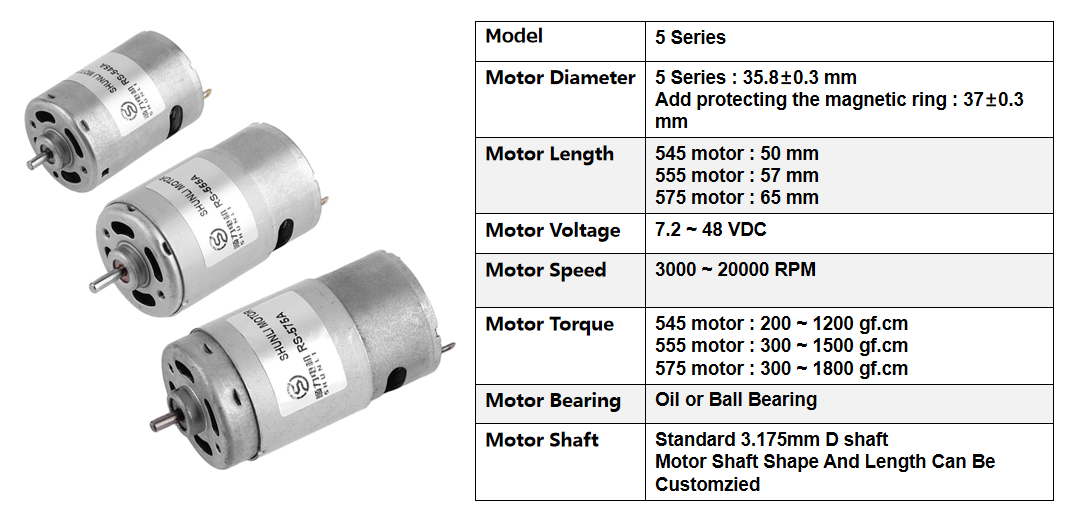

Product Details
Motor Customized Specification available upon request.

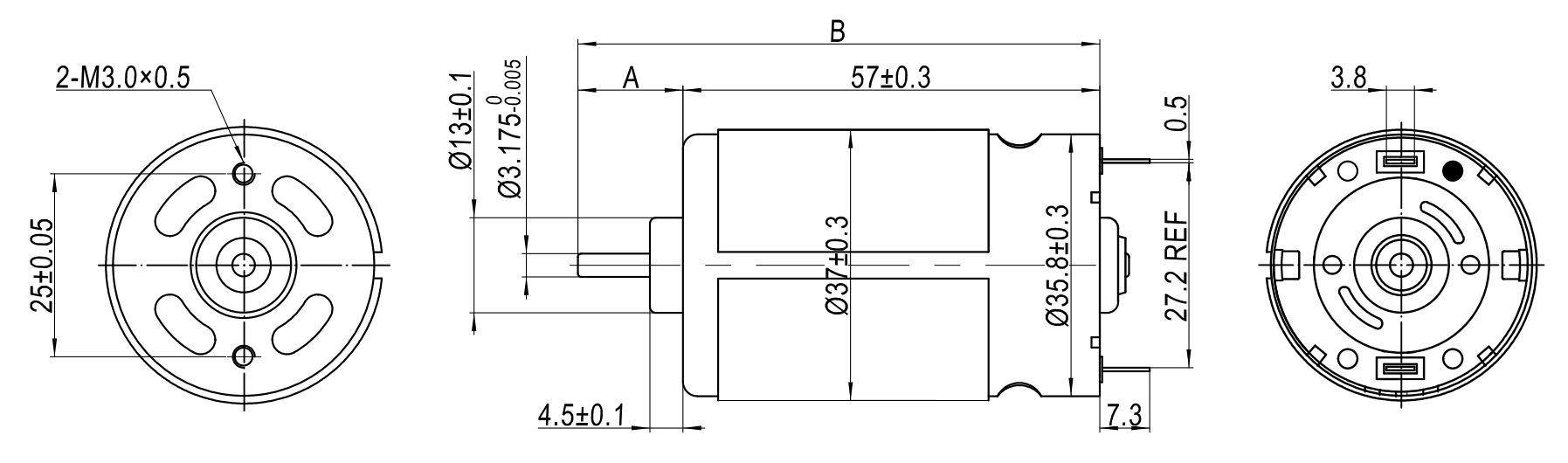

Reference Drawing

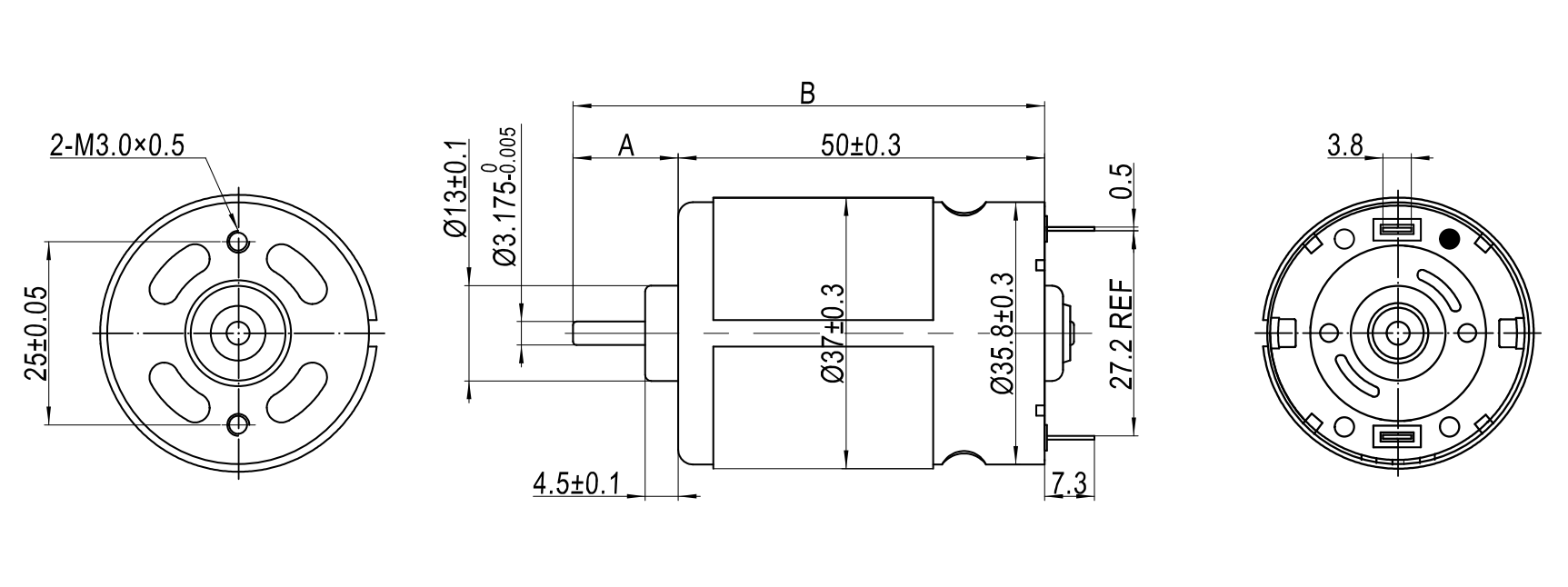

RS - 545 A
RS - 555 A

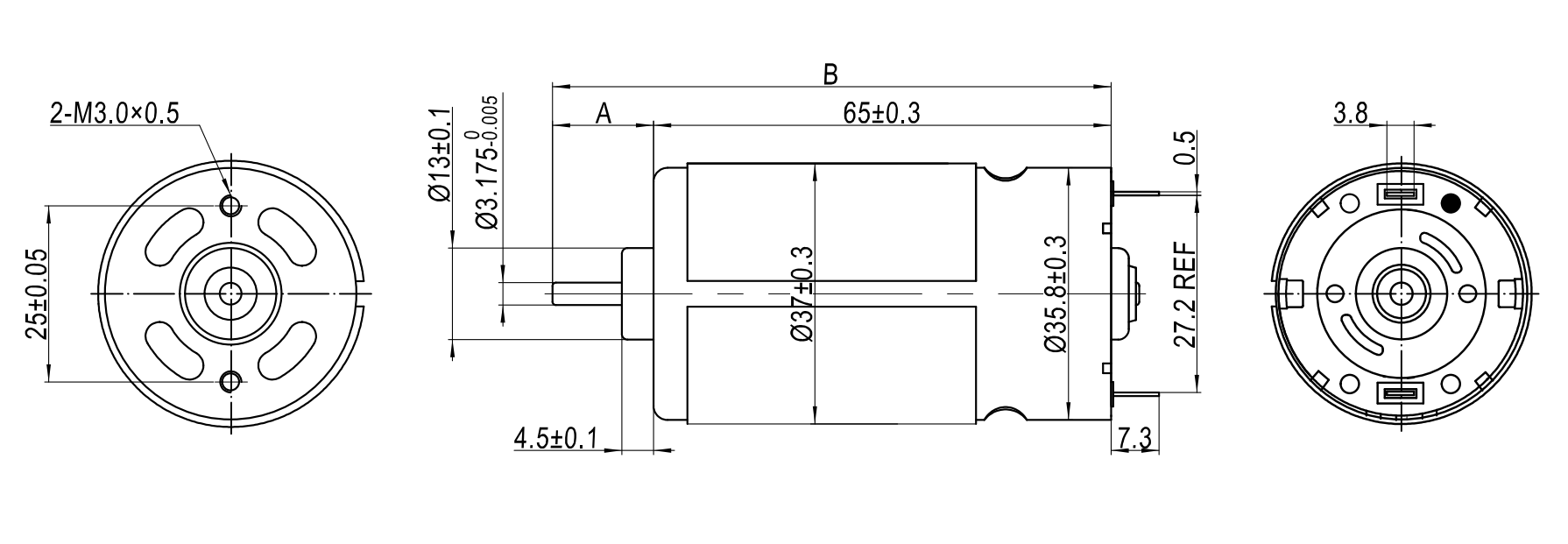

RS - 575 A
Note: The length of the shaft can be customized.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Recommend Product
Frequently Asked Questions
What is the voltage range for these micro motors?
Our micro DC motors typically operate within a range of 6V to 24V DC, making them versatile for various electronic applications.
Can the motor shaft length be customized?
Yes, the shaft length and shape can be customized according to your specific mechanical requirements.
What are the common applications for RS-500 series motors?
These motors are widely used in electric car models, micro appliances, power tools, and various DIY robotics projects.
Are different RPM and torque specifications available?
Yes, we provide multiple models like RS-550H and RS-555H with different windings to offer various speed and torque combinations.
Do you provide technical drawings for installation?
Standard reference drawings for models such as RS-545, RS-555, and RS-575 are provided to assist with your design integration.
How can I select the right motor for my project?
You should consider the required rated voltage, load speed (RPM), and the necessary stall torque to ensure optimal performance for your application.
