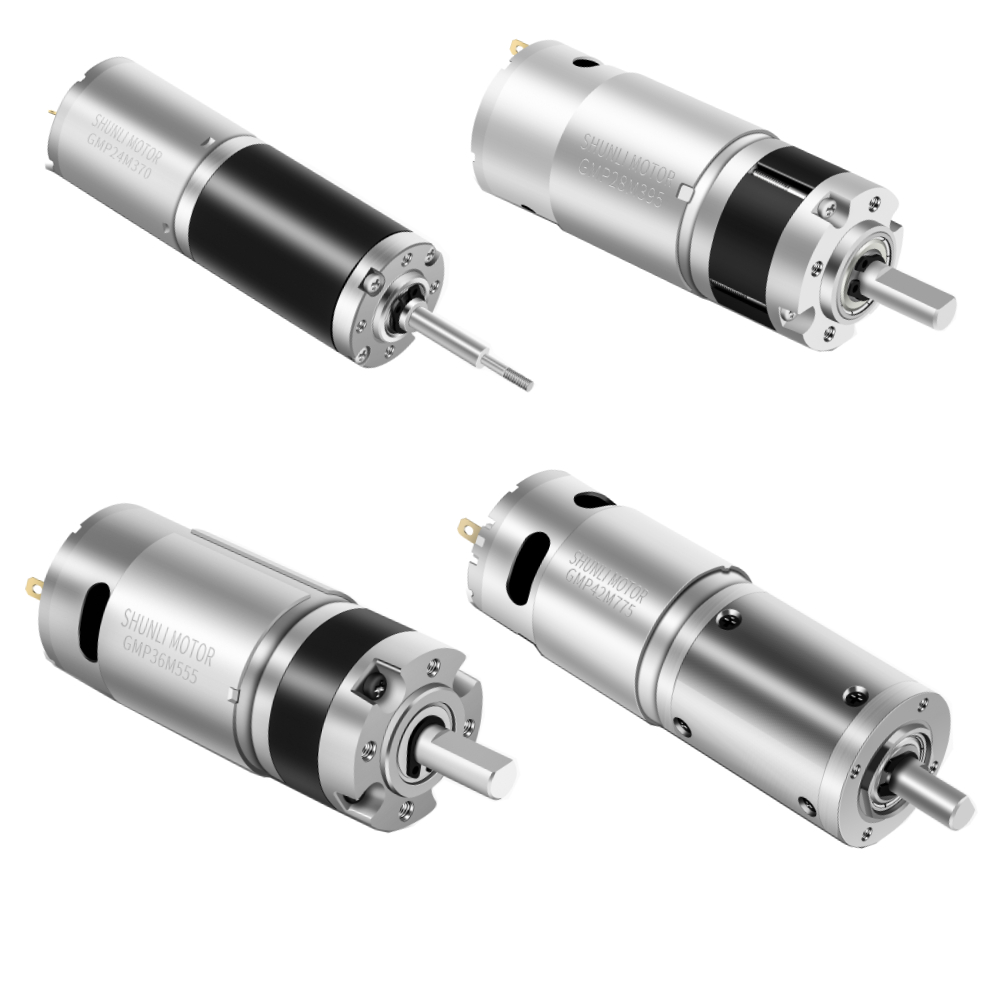

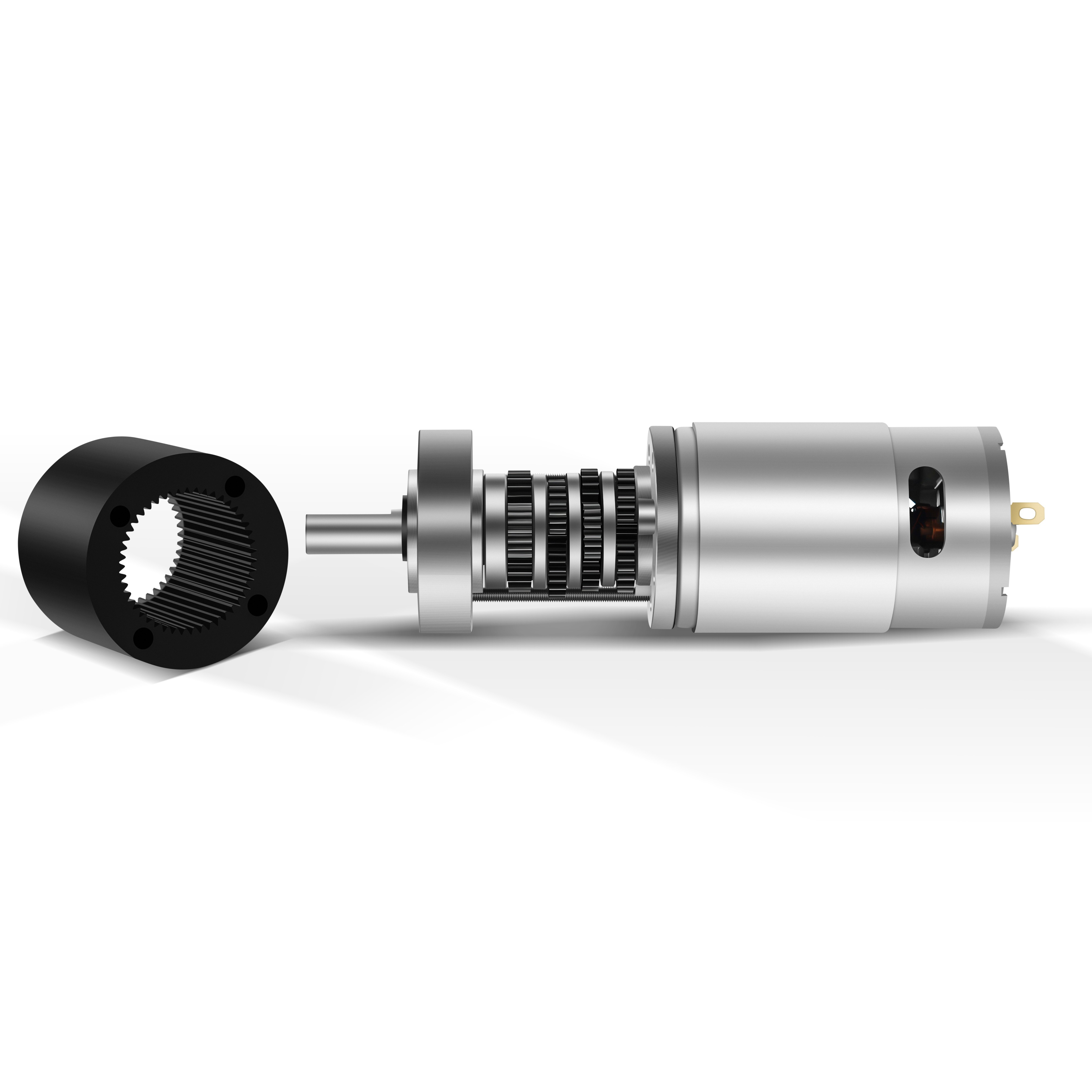

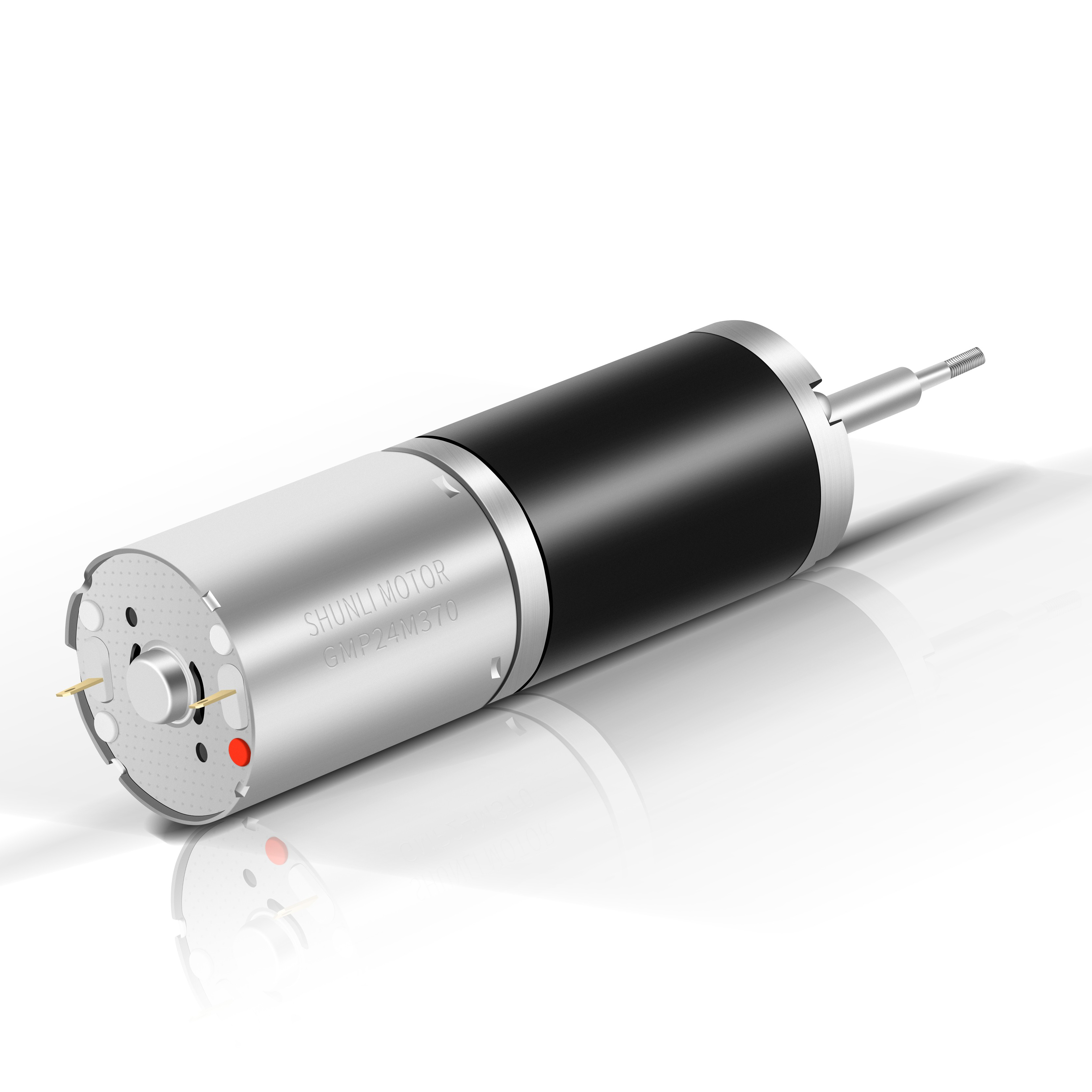

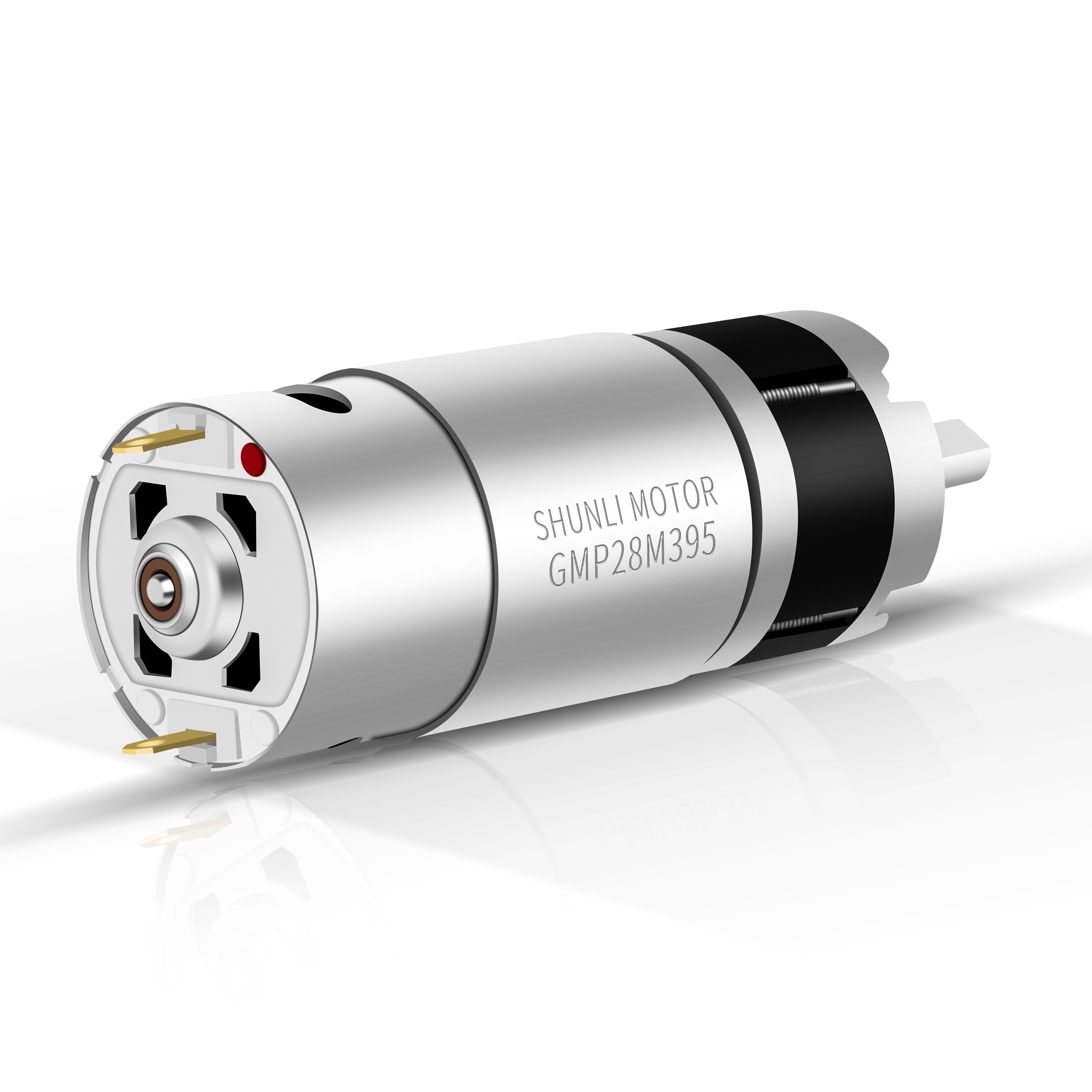

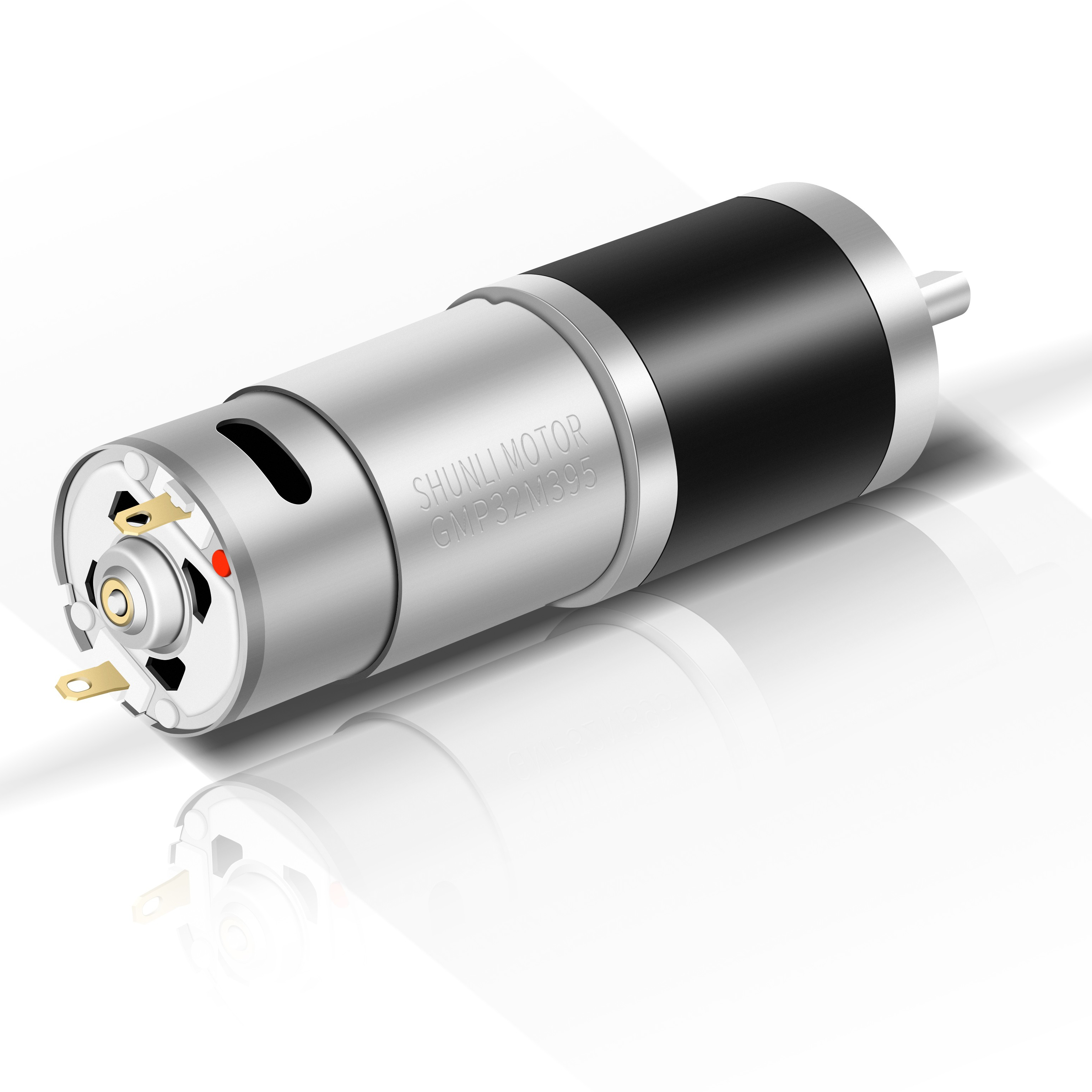

High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
Product Description

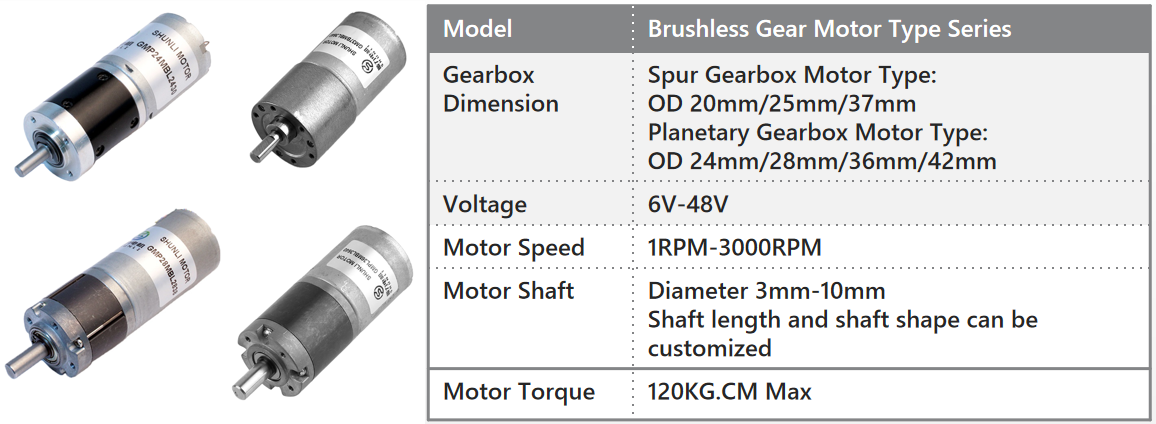

Product Details
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
Gearbox Technical Data
Gearmotor Technical Data
| Ratio | 3.4K - 5184K |
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |
| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |
| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |
| GMP42MBL4260-325K | 1:245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.M / 60KG.CM | ≤ 4800 | 20/200 |

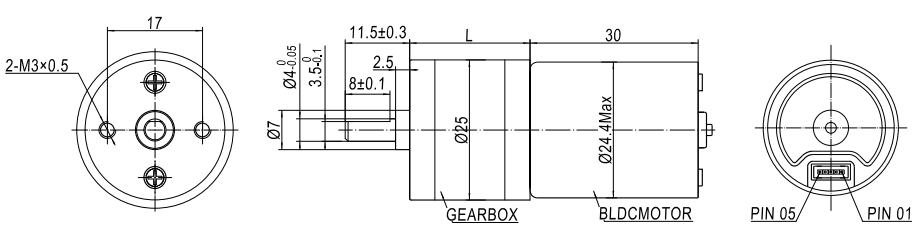

GM25 Motor Type

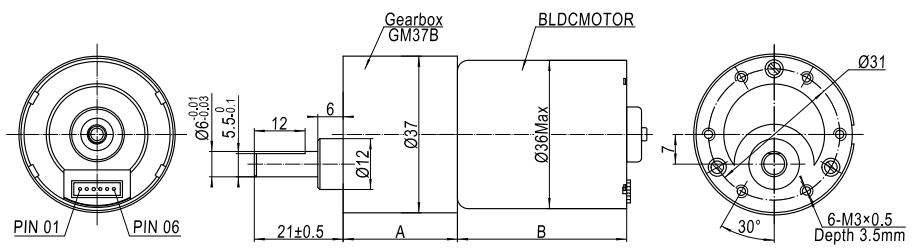

GM37 Motor Type

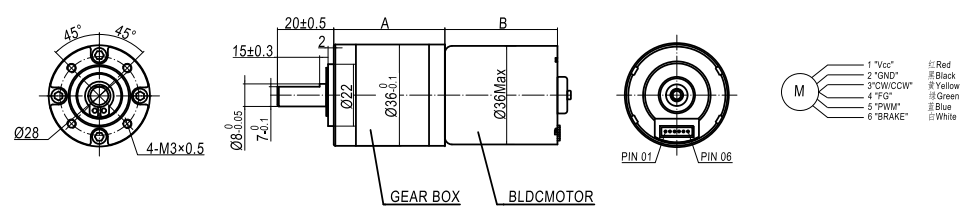

GMP36 Planetary Type

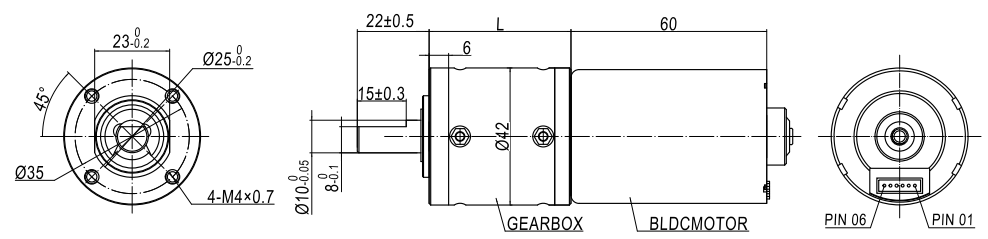

GMP42 Planetary Type

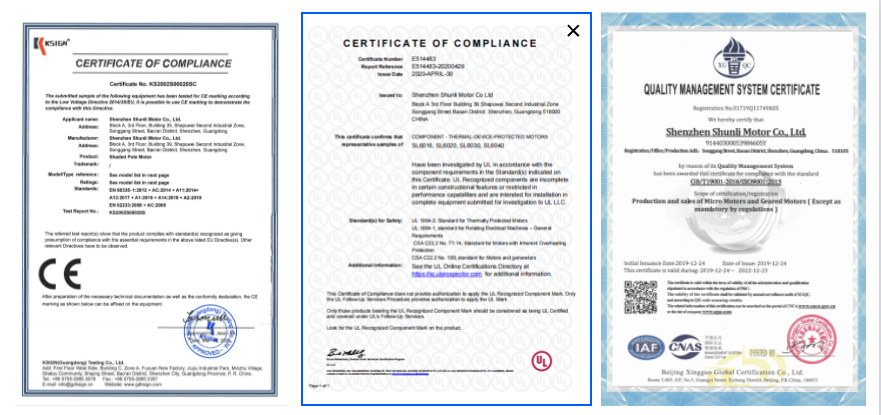

Certification
Customer Evaluation
Our Factory
A high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, and intelligent security.

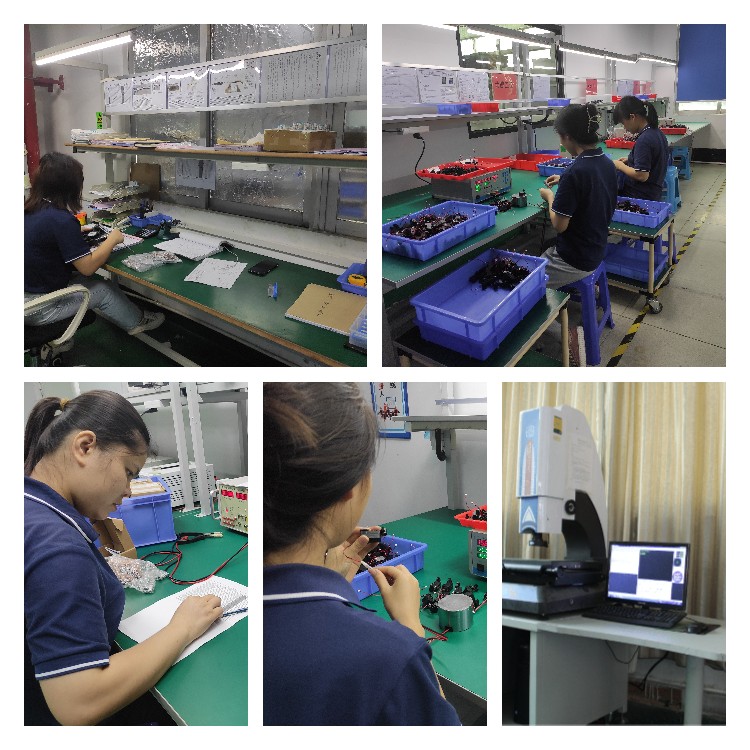

Quality Control
In order to confirm quality, from received material to shipment, every step is carefully checked. Quality is the basis of our development.
Gold seller with high credibility in the industry.
100% on-time delivery rate for all orders.
Samples produced within 2-3 weeks.
Rapid technical support and message reply within 2 hours.
Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors for more than 14 years.
What payment methods do you accept for new customers?
New customers can pay online via Master Card, Visa, PayPal, or TT (Telegraphic Transfer).
Can you customize motors if I cannot find a suitable one on the website?
Yes, we provide full customization services to match your specific technical requirements.
Do your motors come with official certifications?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards as required by customers.
How do you ensure the quality of your products?
We employ professional inspectors at every production stage and use advanced testing equipment like Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers.
What is the lead time for sample production?
Standard samples are typically produced within 2 weeks, while customized samples may take up to 3 weeks.
