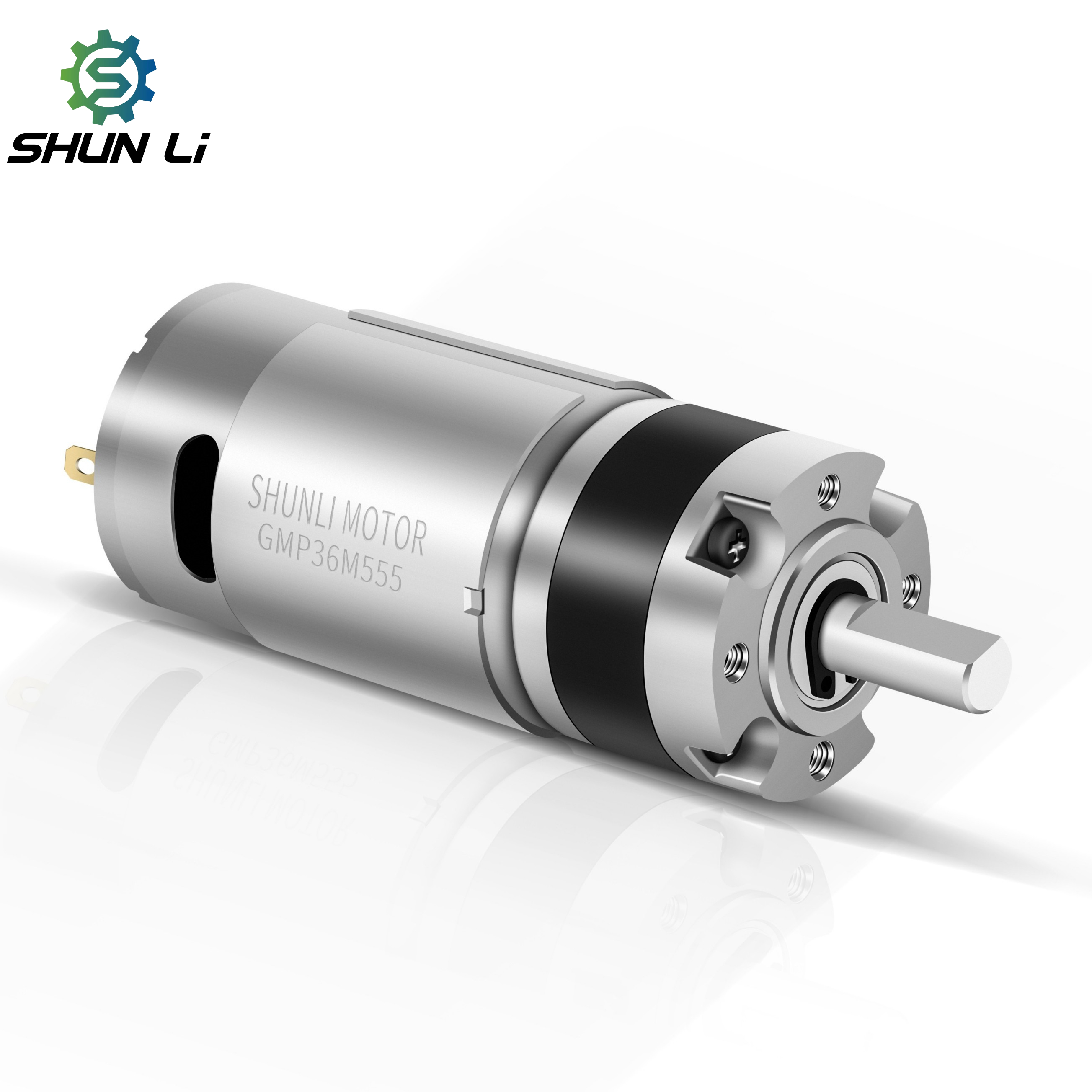

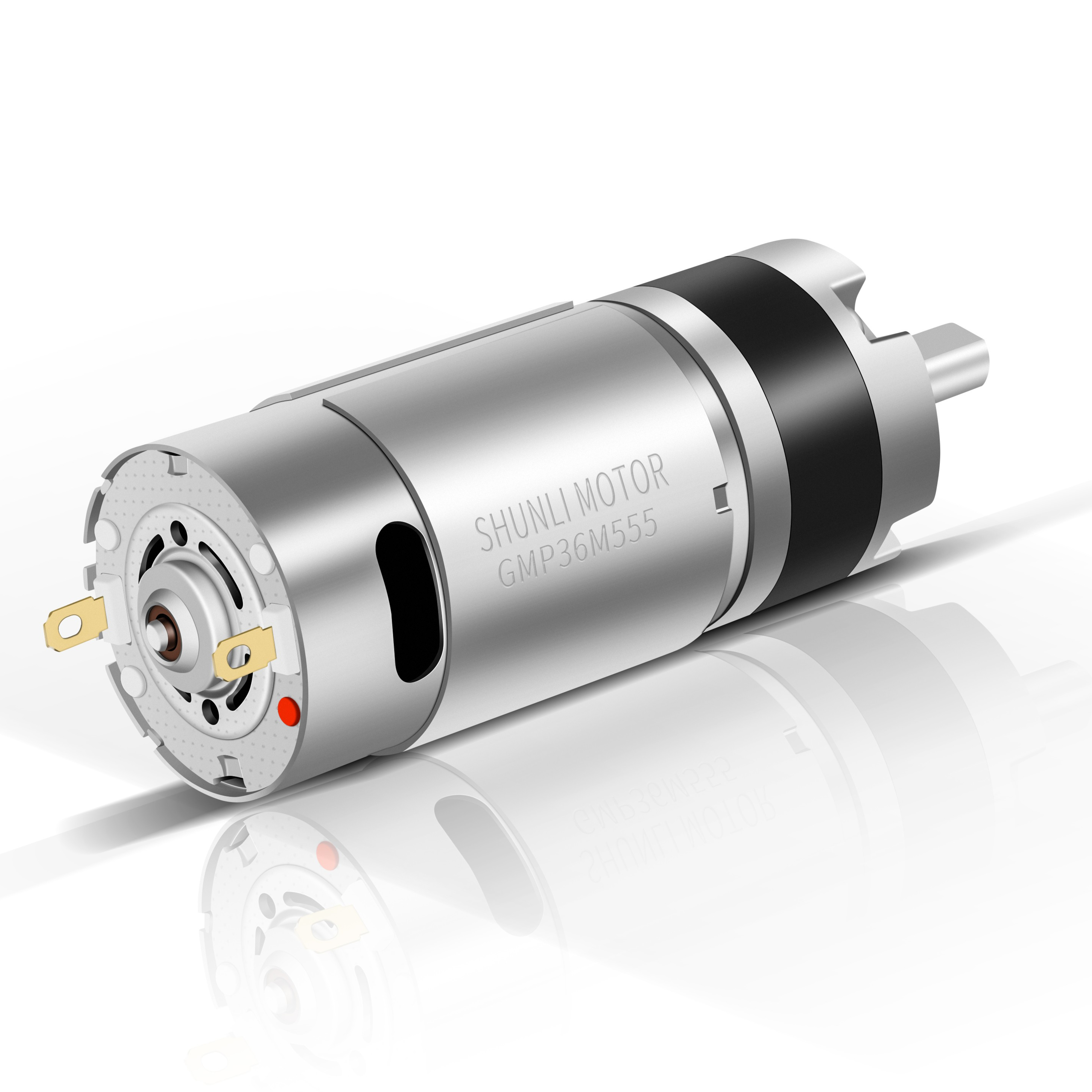

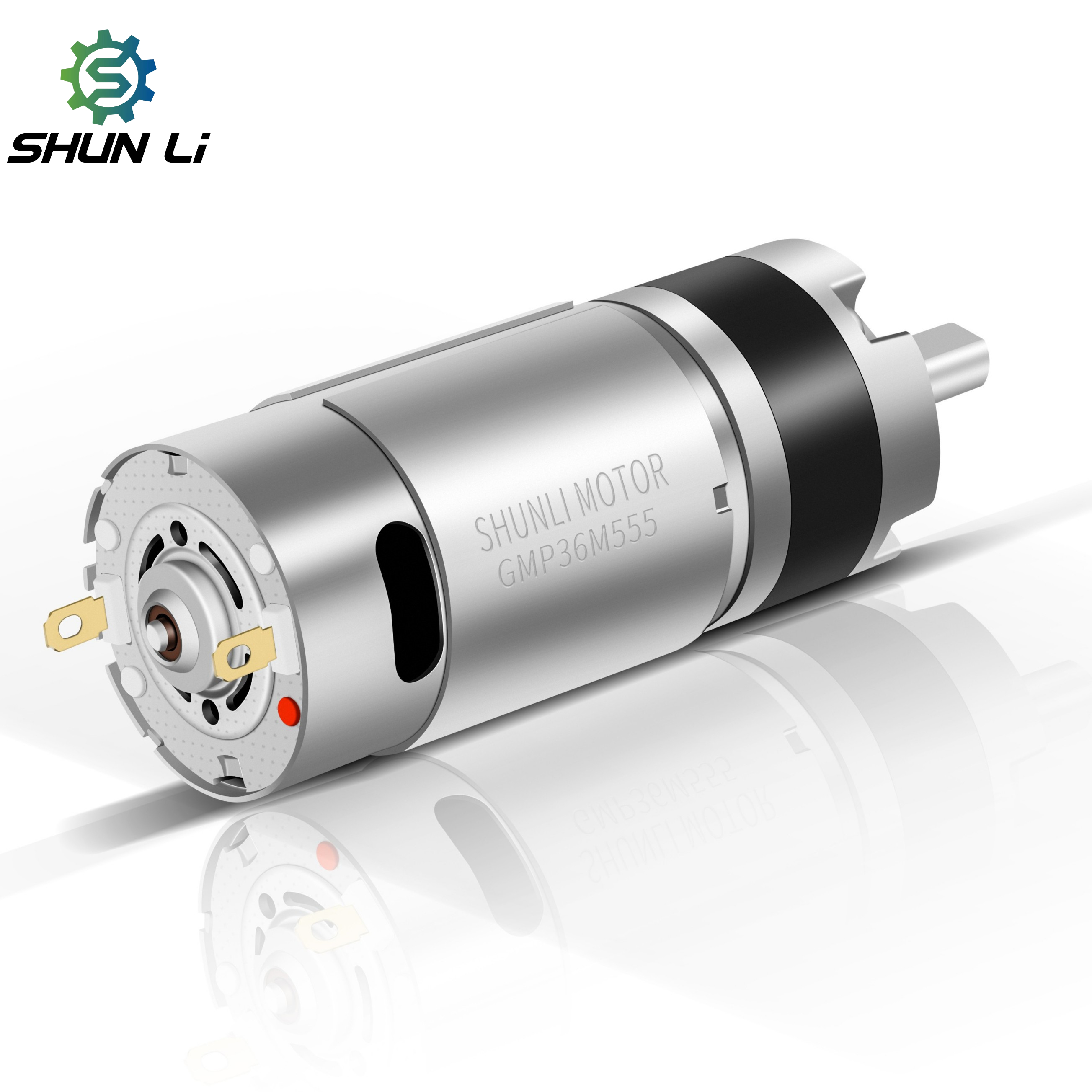

High Torque Long Life 12v 24v 100 RPM 10 RPM DC Planetary Gear Motor Can Be Matched with Encoder
Product Description

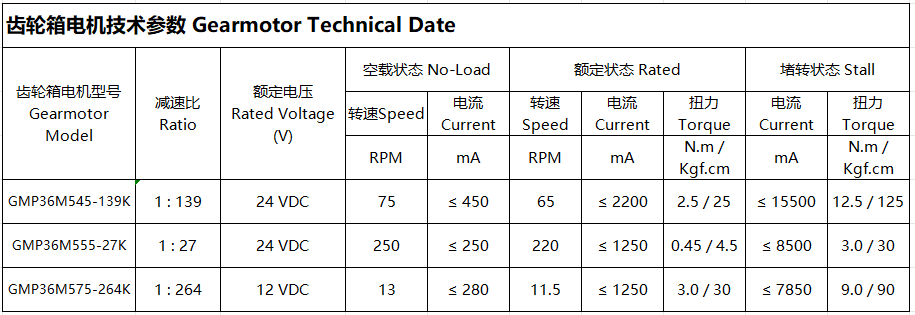

⚙️ Technical Specifications
| Product Model | GMP36M545/555/575 |
| Gearbox Length | 26MM - 54MM |
| Speed | 11.5 RPM - 250RPM |
| Voltage | 24V / 24V / 12V |
| Torque | 2.5 N.m / 0.45 N.m / 3.0 N.m |
| Support customization | The Transmission Dimensions And Motor Parameters Can Be Customized |
🔍 Product Details Gallery
Frequently Asked Questions
Q1 Are you trading company or manufacturer?
We're factory. We specialize in micro DC motor and DC gear motor for more than 14 years.
Q2 What is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Q3 Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements if you cannot find a suitable model on our website.
Q4 Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you have specific certificate requirements, we can apply for them for you.
Q5 How is your Quality Control?

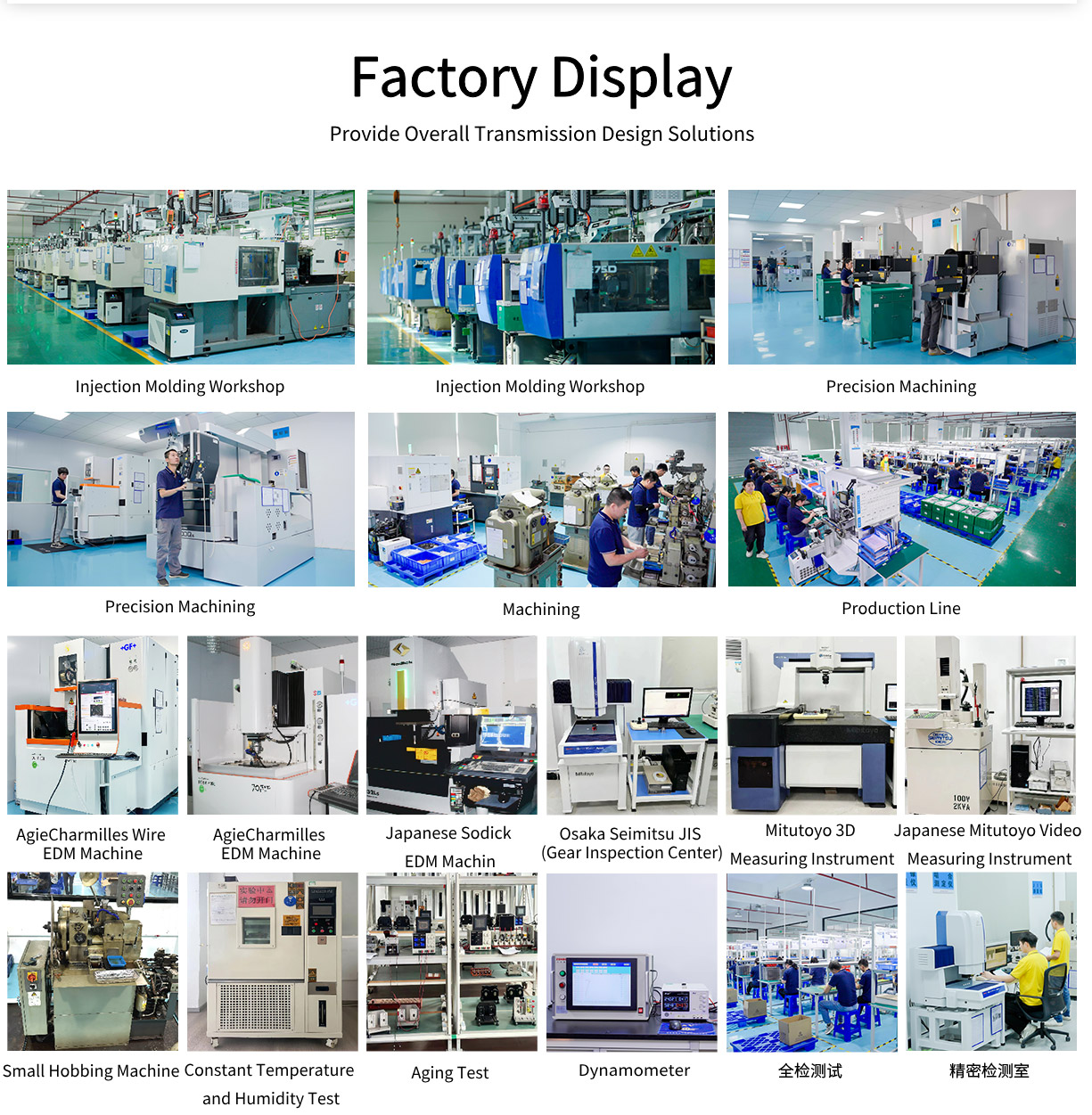

We have professional checking staff on every production line process. After finishing the whole motor, we use advanced testing equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers to ensure quality.
Q6 Do you provide samples for testing?
Yes, we provide motor samples to ensure the parameters meet your application needs before proceeding with bulk orders.
