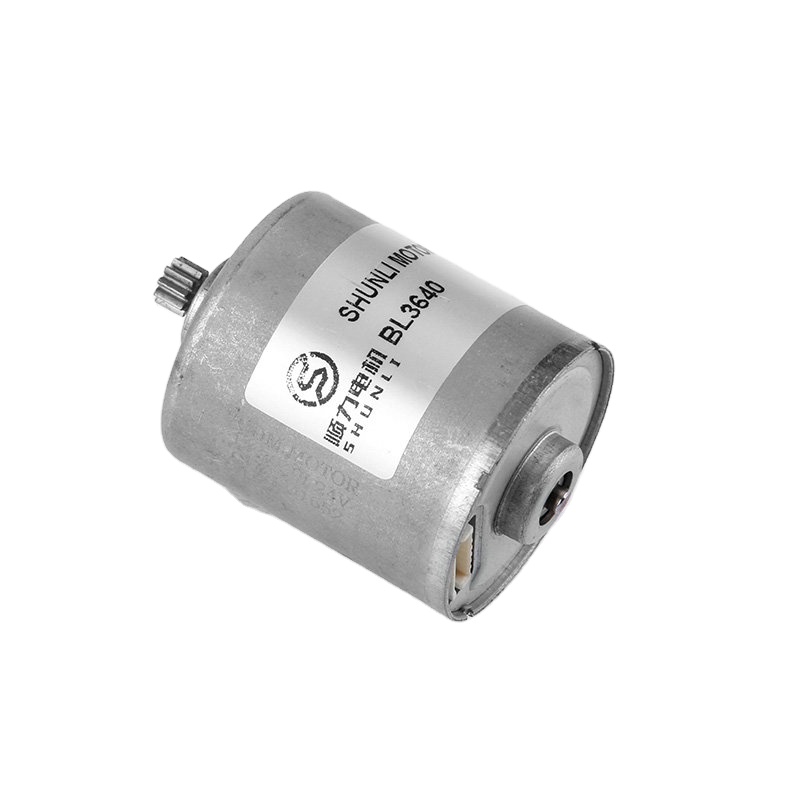

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
Product Description
12V 18V 24V High Speed 36mm Brushless DC Motor
Product Details
Motor Customized Specification Available.
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
Reference Datasheet

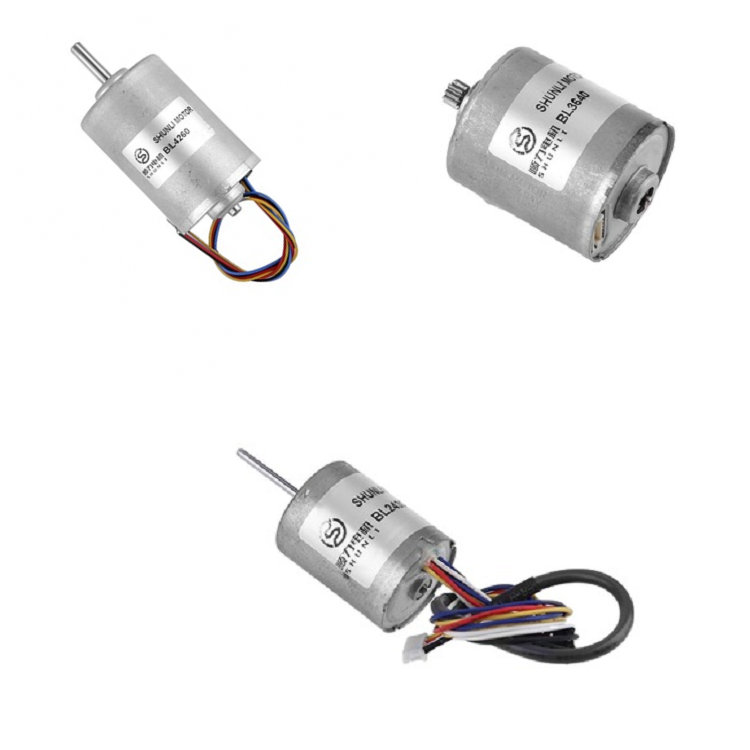

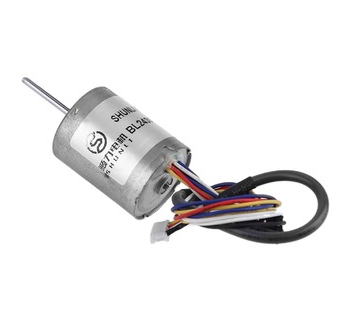

Product Showcase
Frequently Asked Questions
What is the operating voltage range for this brushless motor?
This high-speed brushless DC motor supports a versatile voltage range of 12V, 18V, and 24V DC.
What is the maximum speed (RPM) achievable?
Depending on the specific configuration, the motor can reach speeds of 20,000 RPM, 30,000 RPM, up to a maximum of 40,000 RPM.
What are the pin functions for the motor termination?
The motor features a 5-pin termination system: VCC (Power), FG (Speed Feedback), CW/CCW (Direction Control), GND (Ground), and PWM (Speed Control).
Can I customize the motor specifications?
Yes, we provide customized motor specifications to meet your specific application requirements for torque, speed, and dimensions.
What is the physical size of this motor?
This specific BLDC motor has a compact diameter of 36mm, making it ideal for high-speed fan applications.
Does the motor support speed control?
Yes, the motor includes a PWM (Pulse Width Modulation) pin specifically for precise speed regulation.
