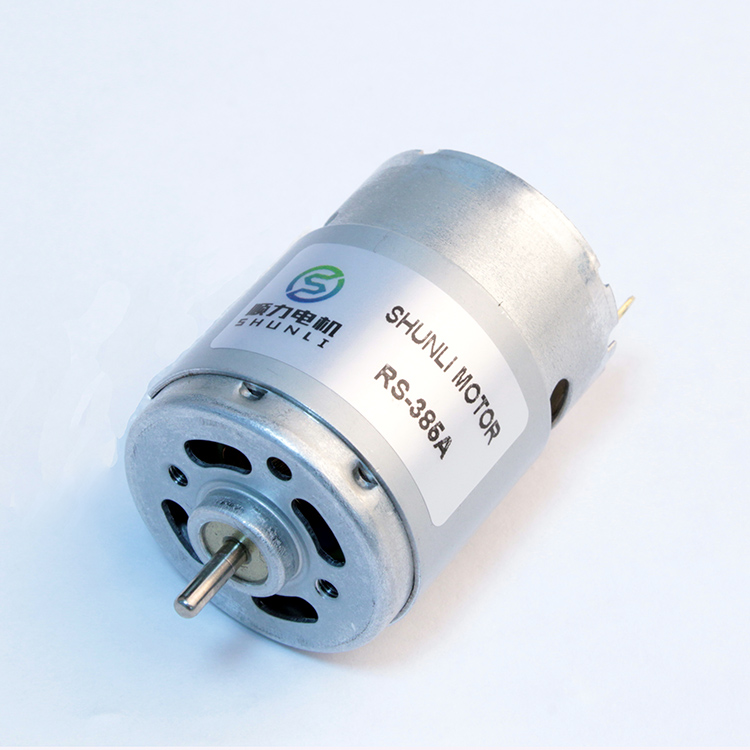

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor
Product Description
Product Description

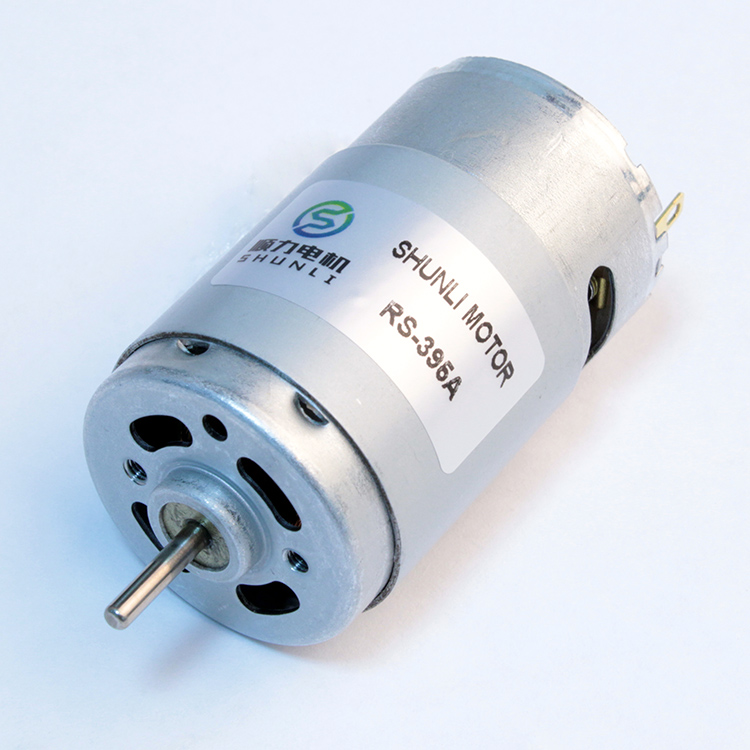

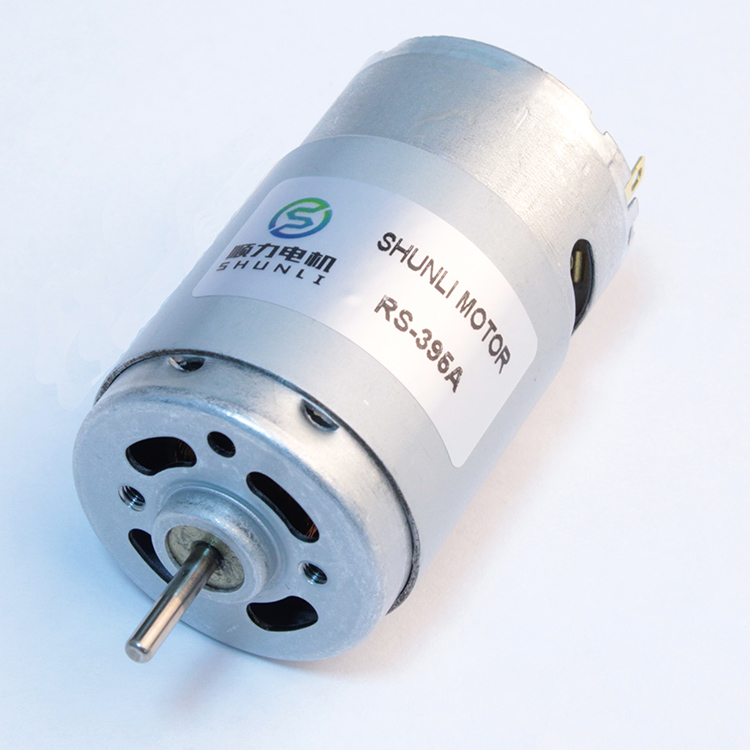

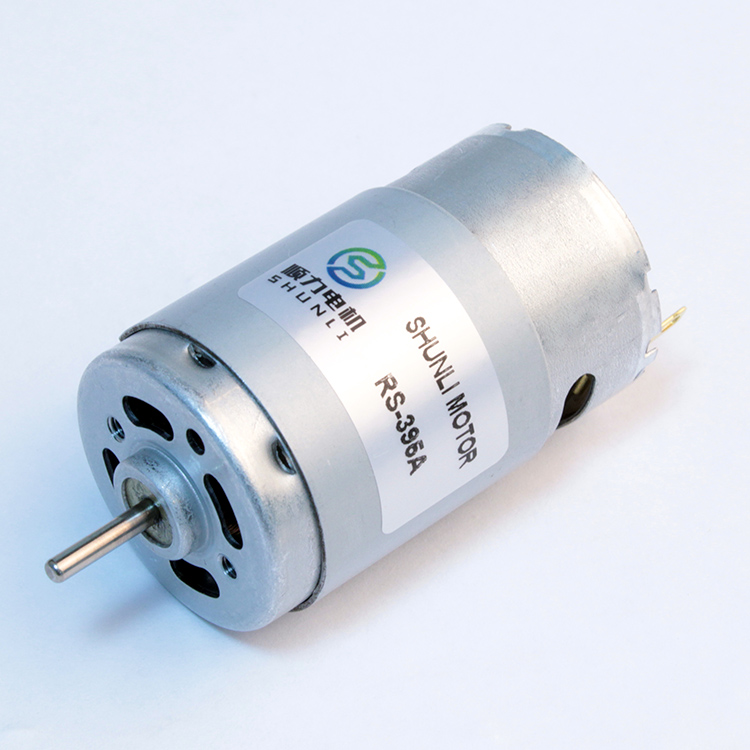

390 DC Motor for Machine Fan 12V 6000rpm

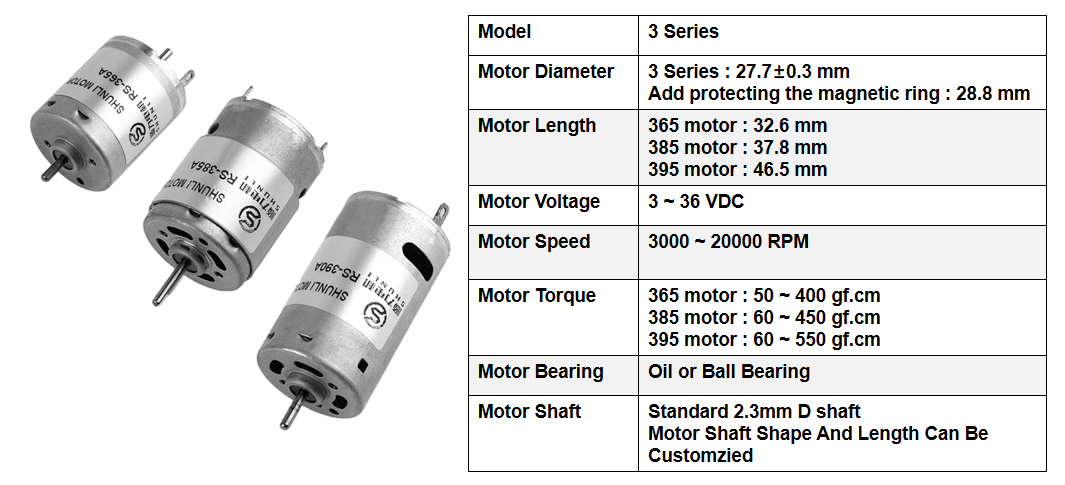

Product Details
✉️
Motor Customized Specification
We offer tailored motor parameters to meet your specific application requirements. Please reach out for customization options.
We offer tailored motor parameters to meet your specific application requirements. Please reach out for customization options.
Reference Drawing

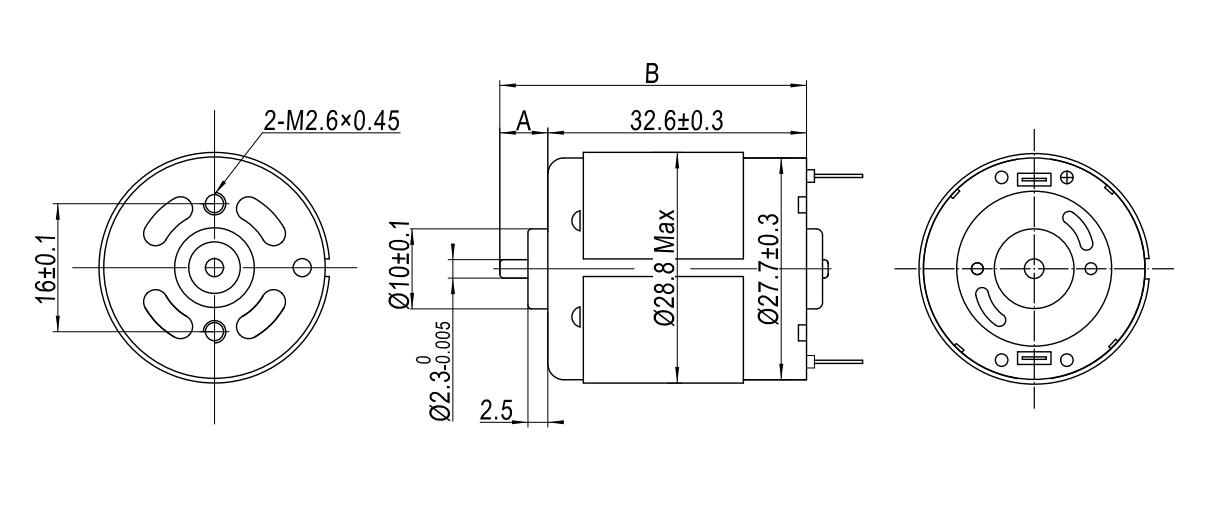

Model RS - 365

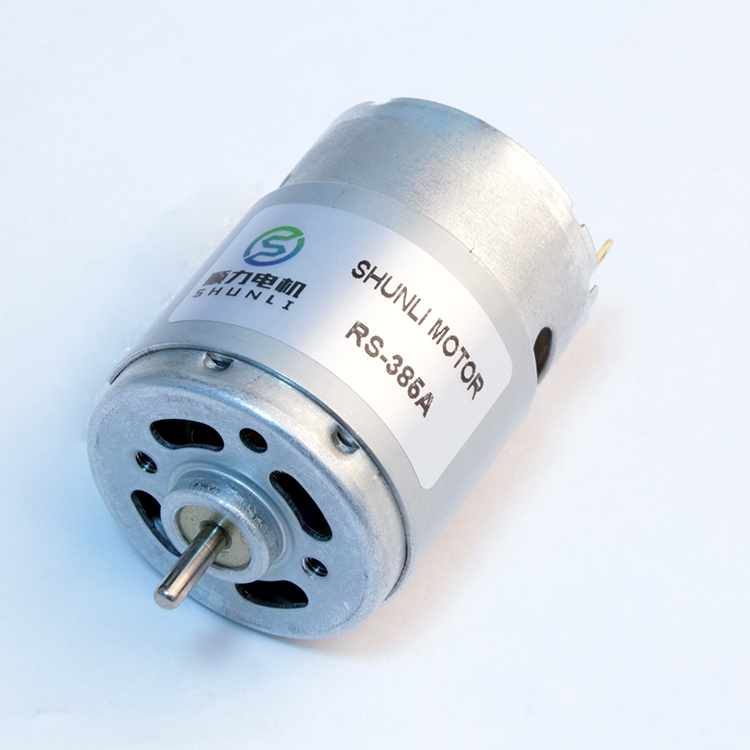

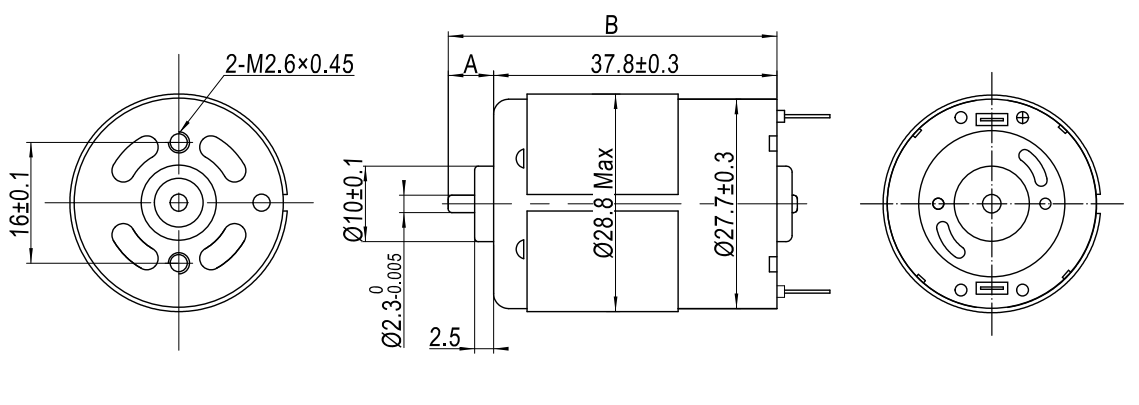

Model RS - 385

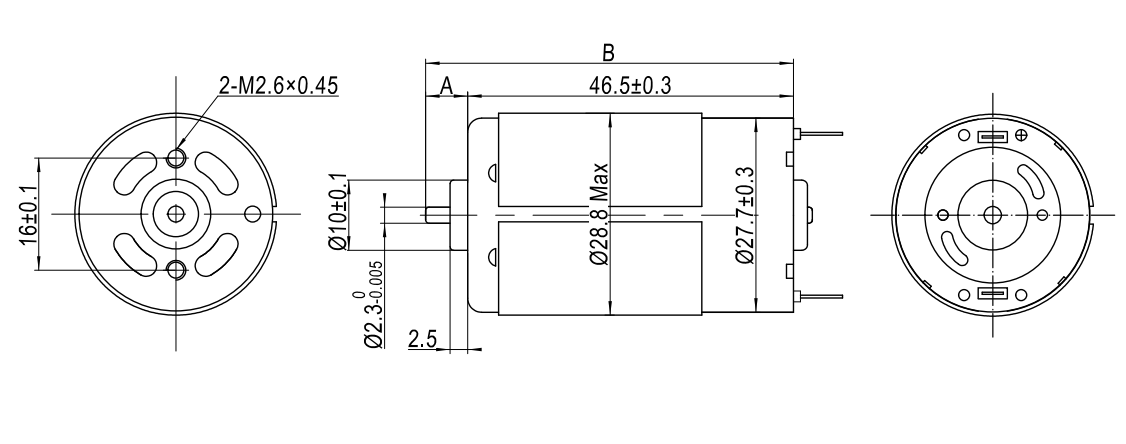

Model RS - 395
📏
Shaft Customization
The length of the motor shaft can be customized according to your mechanical design.
The length of the motor shaft can be customized according to your mechanical design.
Reference Datasheet
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07 | 2.72 | 2.22 | 42.2 |
| RS-390SH | 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75 | 1.31 | 8.9 | 80.4 |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83 | 1.8 | 1.06 | 30.4 |
| RS-395SH | 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09 | 6.68 | 2.66 | 54.9 |
Production Showcase
Get in Touch
Give us a chance to cooperate with you!
Frequently Asked Questions
What are the primary applications for the 390 DC motor?
The 390 series is widely used in machine fans, office automation equipment, household appliances, and small electric tools due to its high efficiency and stable torque.
Can the motor speed and voltage be customized?
Yes, we can adjust the winding, voltage (from 6V to 24V), and speed settings to match your specific performance requirements.
Is it possible to customize the output shaft?
Absolutely. The shaft length, diameter, and shape (such as D-cut or round) can be customized to fit your gear or fan attachment.
What is the difference between RS-390 and RS-395 models?
While they share similar diameters, the RS-395 is slightly longer and generally offers higher torque and power outputs compared to the RS-390 model.
Do these motors support high-speed operation?
Yes, certain variants like the RS-390SH 2975 can reach no-load speeds up to 12,000 RPM at 12VDC, making them ideal for high-velocity machine fans.
Are the materials used compliant with international standards?
Our motors are manufactured using high-quality components to ensure durability and reliability for long-term industrial and commercial use.
