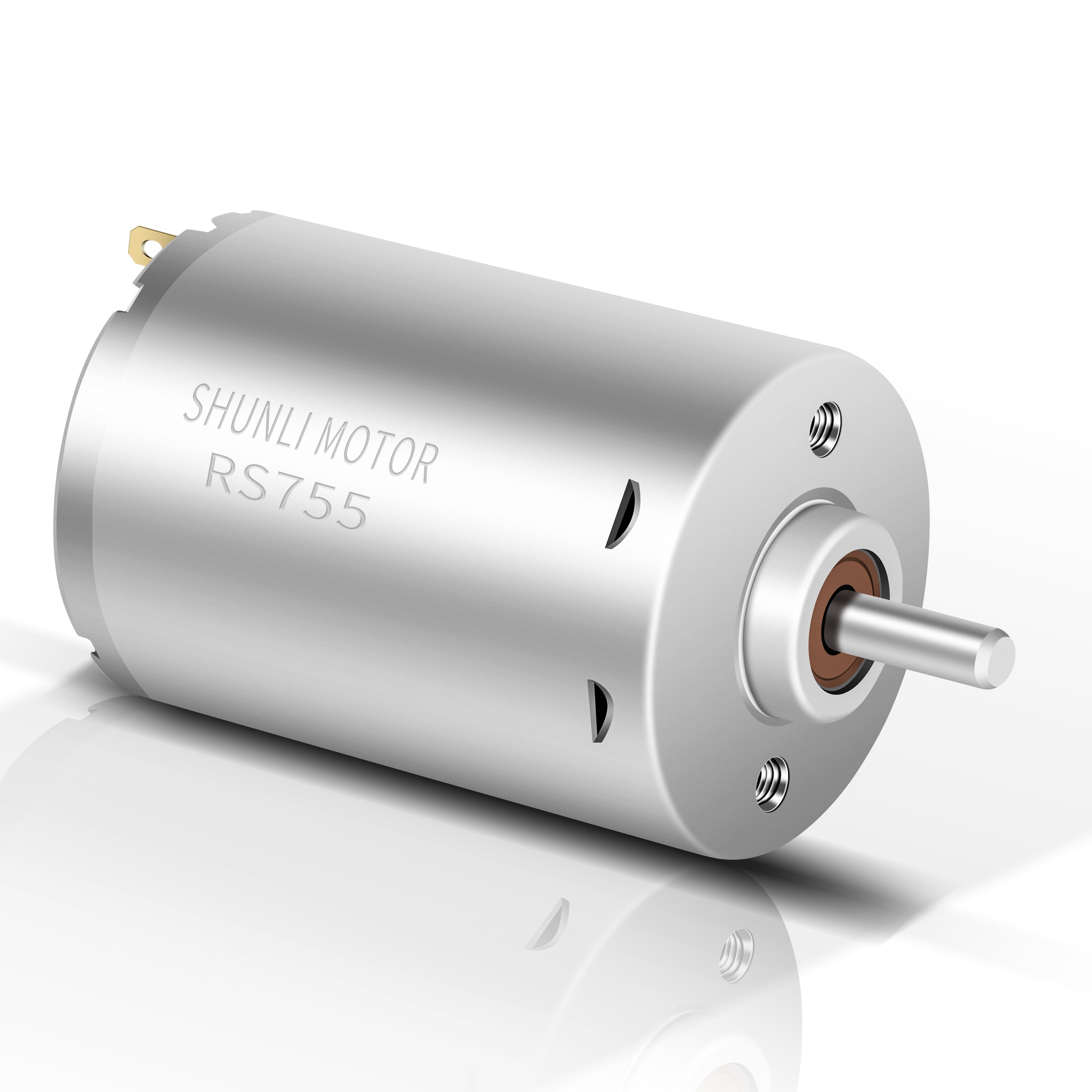

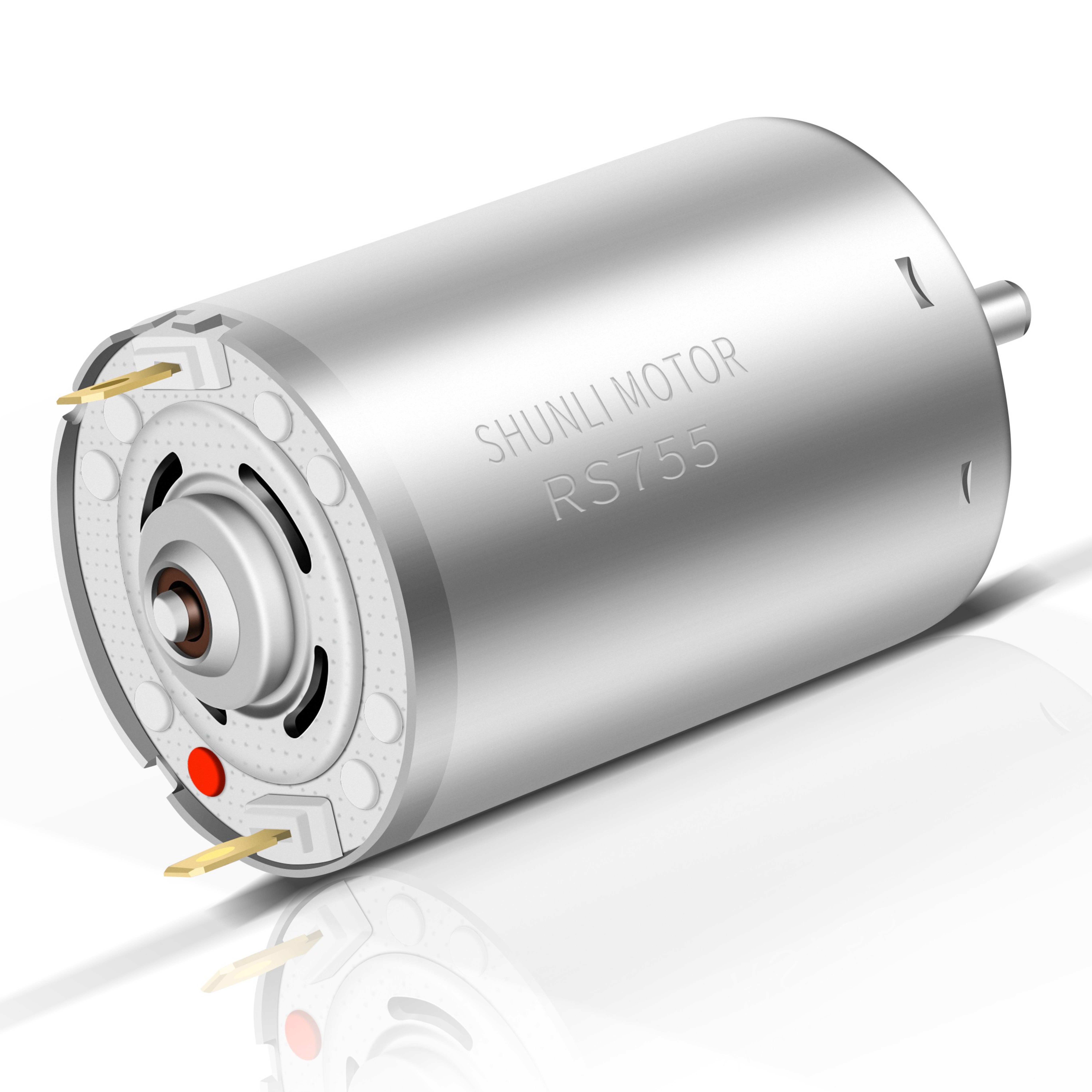

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor
Product Description
Product Description
powerfull 20000rpm rs 775 mini high speed 24 volt dc motor

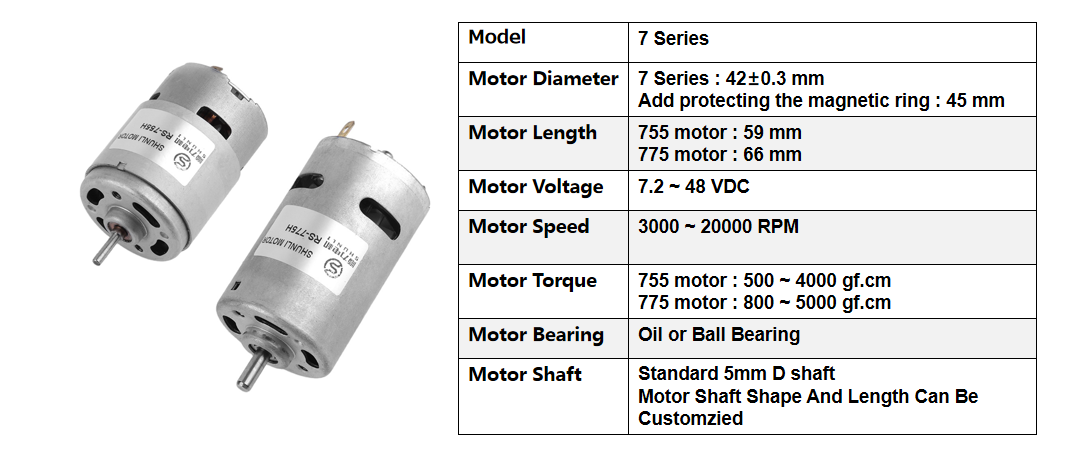

✨ Product Details
Motor Customized Specification available.
Reference Drawing

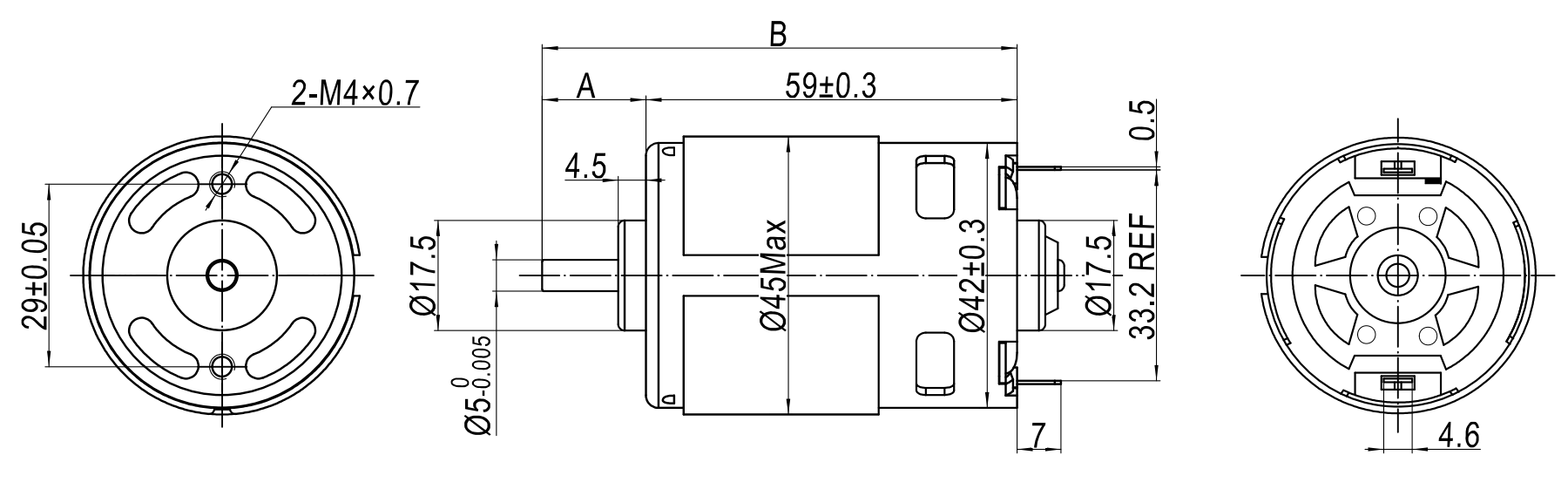

🔹 RS-755H

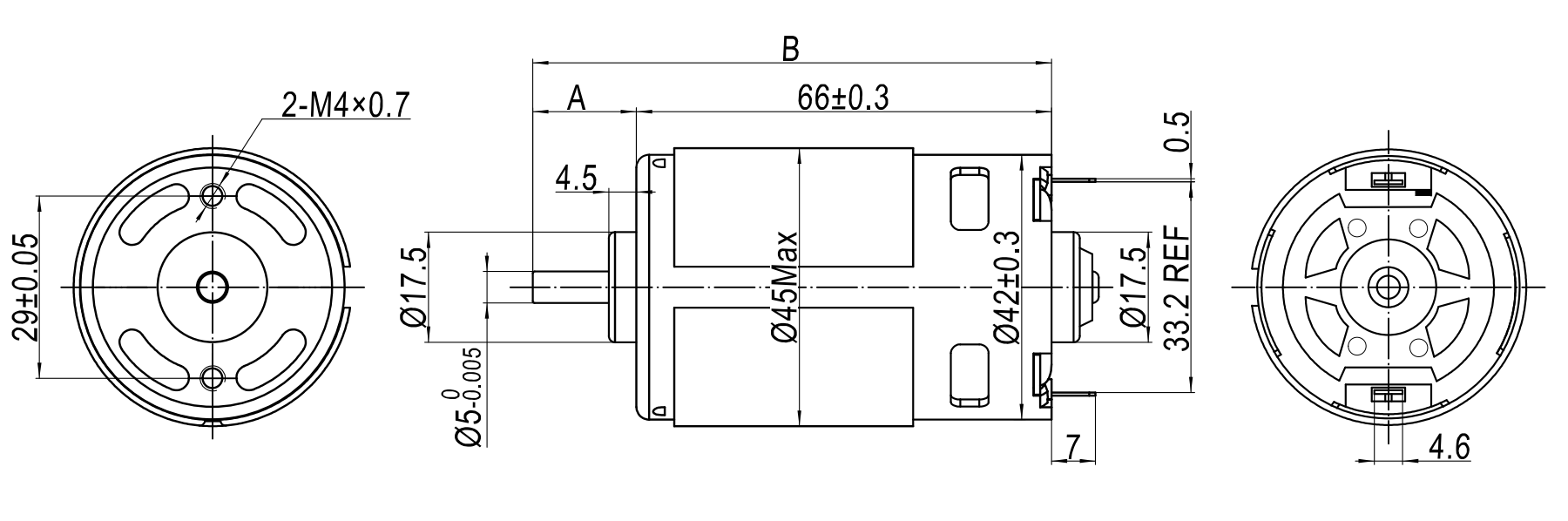

🔹 RS-775H
The length of shaft can be customized.
PMDC MOTOR Technical Data
| PMDC MOTOR Technical Date | |||||||||||
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 | 111.8 | 115 | 666.9 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 | 13.35 | 4.07 | 245.7 |
Application & Certifications
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We support various payment methods including online orders via credit cards (Master Card, Visa), PayPal, and TT.
Can you customize a motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other certifications. We can apply for additional certificates if required.
How is your Quality Control?
We have professional inspectors for every production process and utilize advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers to ensure performance.
How can I get feedback on my inquiry?
We look forward to your feedback and will respond to your technical requirements promptly.
