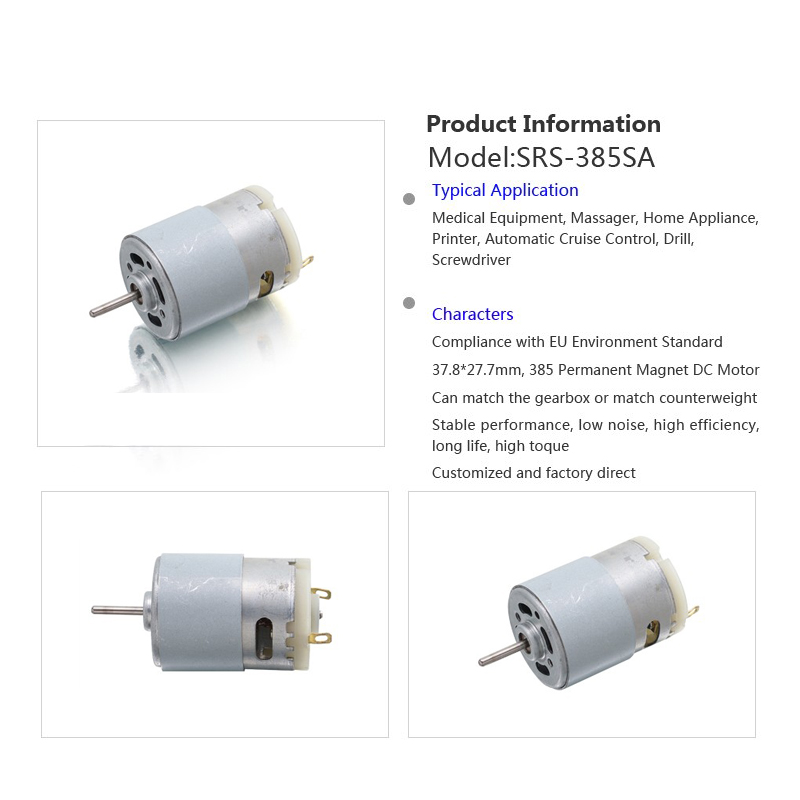

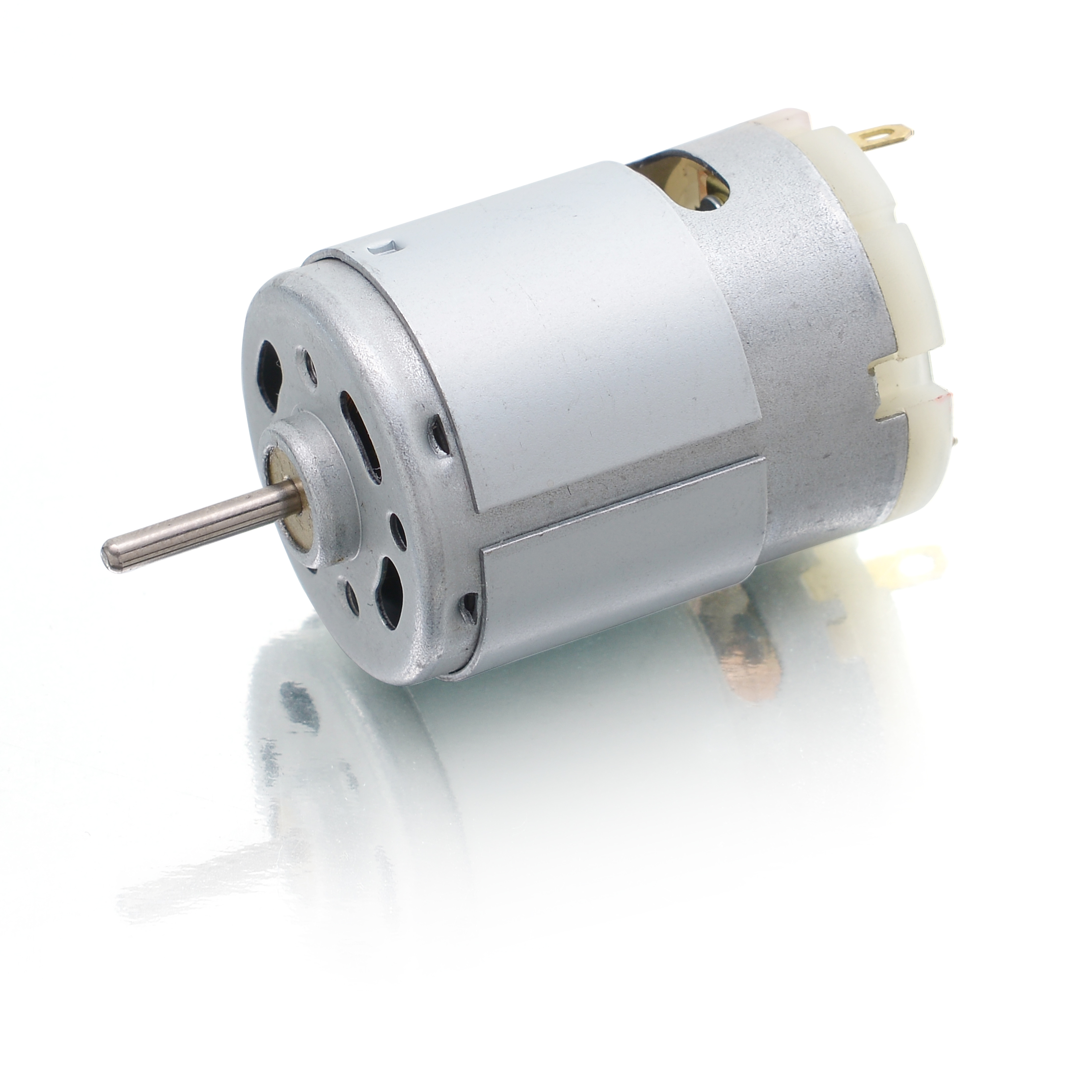

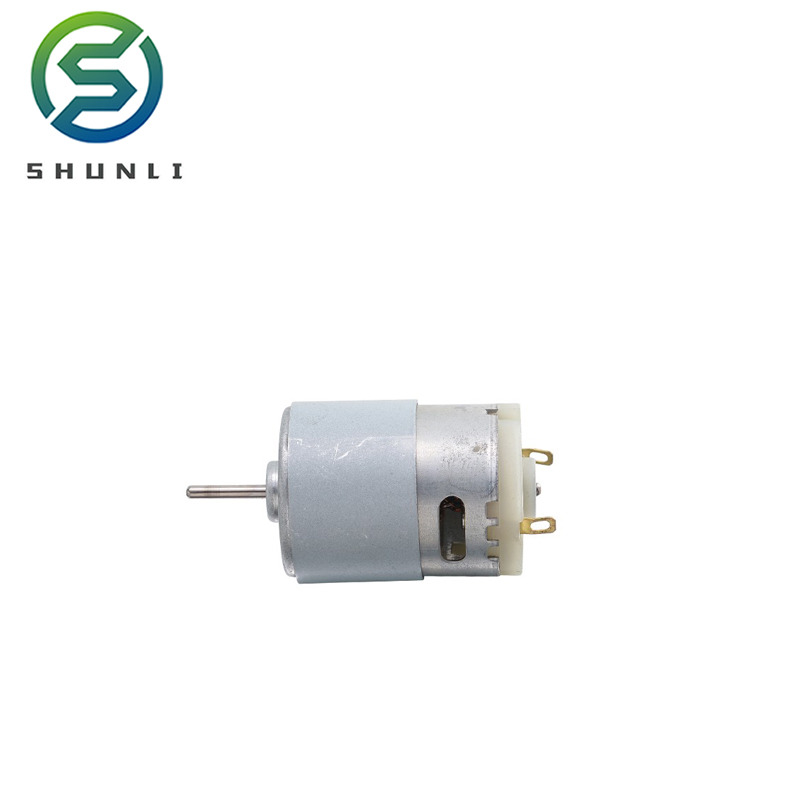

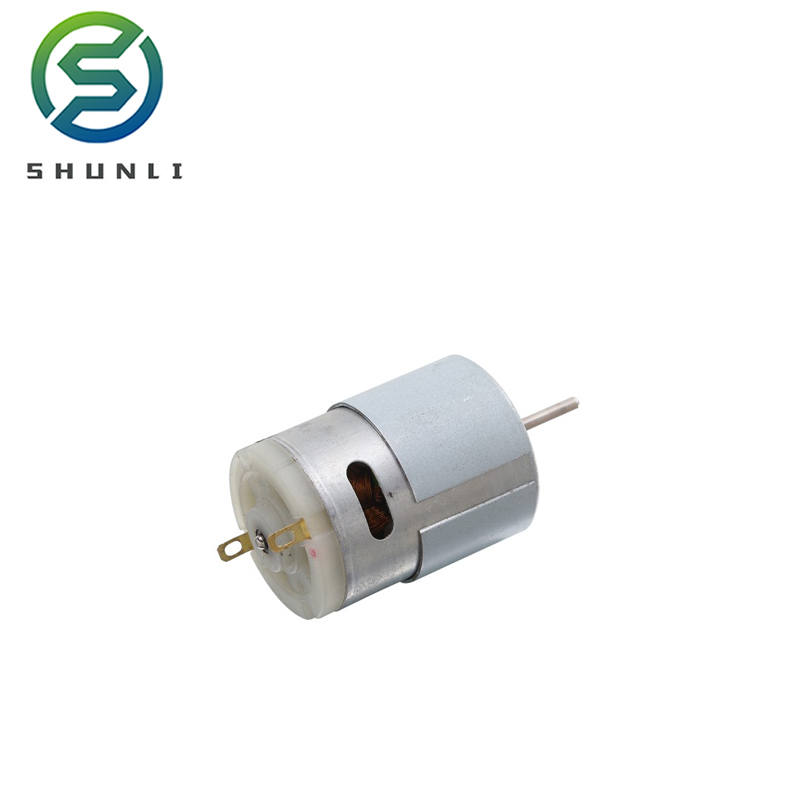

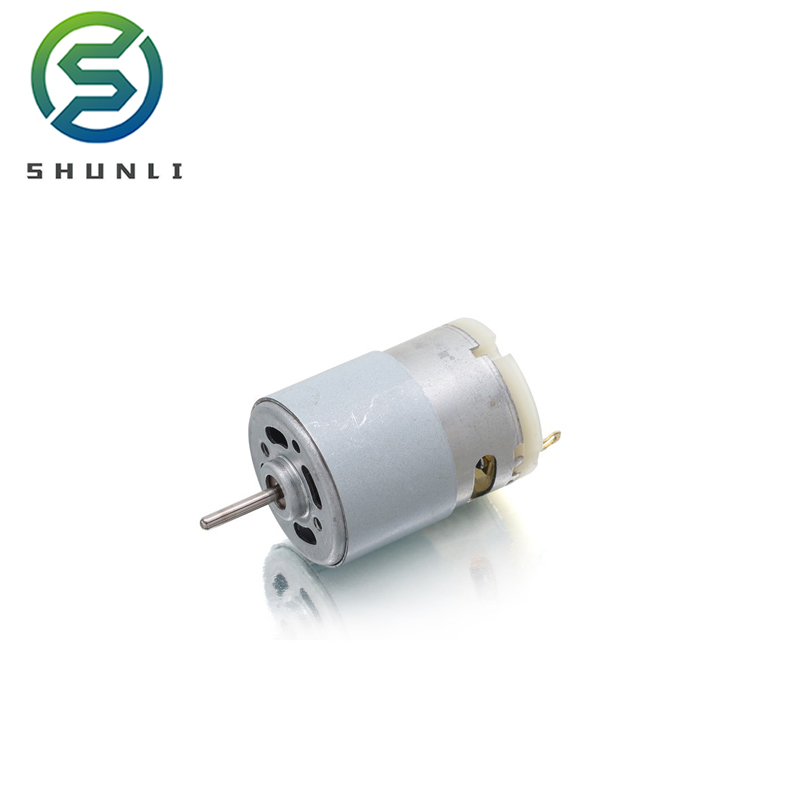

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available
Product Description
🔥 Promotion
⚙️ Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-380SH | 4052 | 3.0~6.0 | 4.8VDC | 7800 | 0.32 | 6701 | 1.95 | 9.9 | 6.98 | 11.9 | 70.6 |
| 3557 | 6.0~12.0 | 12VDC | 21200 | 0.44 | 18367 | 2.85 | 11.26 | 21.68 | 18.5 | 84.3 | |
| RS-385SH | 17110 | 6.0~24.0 | 24VDC | 11000 | 0.15 | 9034 | 0.69 | 10.7 | 10.12 | 3.16 | 59.8 |
| 2267 | 6.0~12.0 | 12VDC | 10000 | 0.17 | 8340 | 0.85 | 7.5 | 6.53 | 4.29 | 45 | |
🚀 Application
🏢 Our Capability
Established in 2005, this high-tech enterprise integrates research, development, production, and sales of various micro DC motors, geared motors, planetary geared motors, and special gearbox motors. The products are widely used in automobiles, communications, smart homes, medical equipment, and high-end transmission structures across more than 50 countries.
🛠️ Production Process
📜 Certifications
❓ FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. Q: What is the payment term for new customers?
A: We support online assurance orders, Master Card, Visa, PayPal, or TT transfers.
3. Q: I can't find a suitable motor on your website; can you customize one?
A: Yes, we can customize a suitable motor according to our customers' specific requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, and other required certifications. We can apply for others if necessary.
5. Q: How is your Quality Control?
A: We have professional staff on every production process. We utilize Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers for full quality verification.
6. Q: What is your global reach?
A: Our products are exported to more than 50 countries and regions worldwide, serving high-end transmission structure industries.
Looking forward to your reply!
